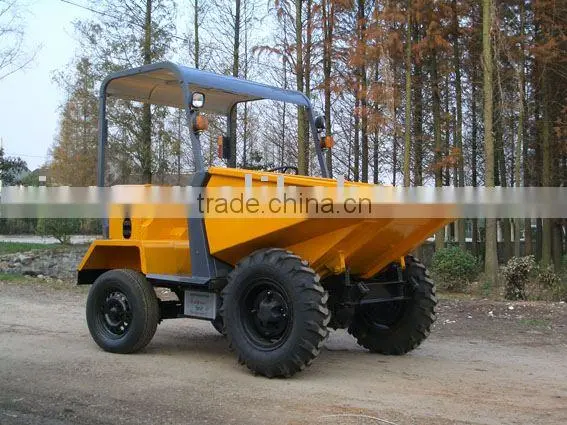

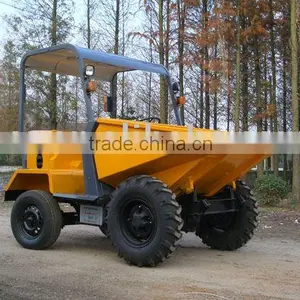

Dumper

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

4x4

Capacity (Load):

1 - 10t

Horsepower:

Other

Weifang Xiaer Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 4x4

Capacity (Load) 1 - 10t

Horsepower Other

Condition New

Fuel Type Diesel

Place of Origin Shandong, China

Model Number FCY15

Specifications

Dumper
2WD or 4WD
1.5 ton
hyraulic discharge

dumper

Main Specifications

	FCY15
Payload	1500kg
Diesel Engine	Single cylinder, Water-cooling system with radiator
Rated Power	15 hp/2200 rpm
Water Capacity	576 ltr (20 cuf)
Struck Capacity	750 ltr (26.5 cuf)
Heaped Capacity	970 ltr (34 cuf)
Min.Out Turning Circle Radius	4 m
Min. Ground Clearance	200mm
Discharging Height
Tipping System	Hydraulic
Engine Starting	Manual and Electric
Electric Battery	12 V, 75 amp.
Driver Awning	Yes
Road Speed	5.5 ~22 km/h
Reverse Speed	4.8 km/h
Transmission	3 forward & 1 reverse gear
Chassis	Rigid frame
Driving Alxe	4*2
Clutch	Constant-contact, single disc, dry clutch
Dimension	297516002060mm

Shipping, Delivery & Maintenance

20 container can be loaded with	2 complete units, or 6 sets in SKD condition
Delivery time	3 weeks after confirmation of the order
Maintenance
The site should be cleaned after work every day, kept lubricated at all points where grease caps have been provided every week. The Engine oil is suggested to be changed every 70 operating hours..
