Specifications
monoblock types with 1-12 working sectionsflow 30-40l/min with pressure 160bar,200bar
nominal diameter:G1/2;G3/8
pneumatic control vakve,hydraulic parts,china hydraulic control valve
DF50 series is sectional valve ,hydraulic valve,directional control valve,directional spool valve,which is widely used in the hydraulic system of forklift and light loading machine and so on.
The hydraulic distributor is used for switching on/off and directing the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tank. It is manufactured with up to 6 plungers with parallel or serial distribution

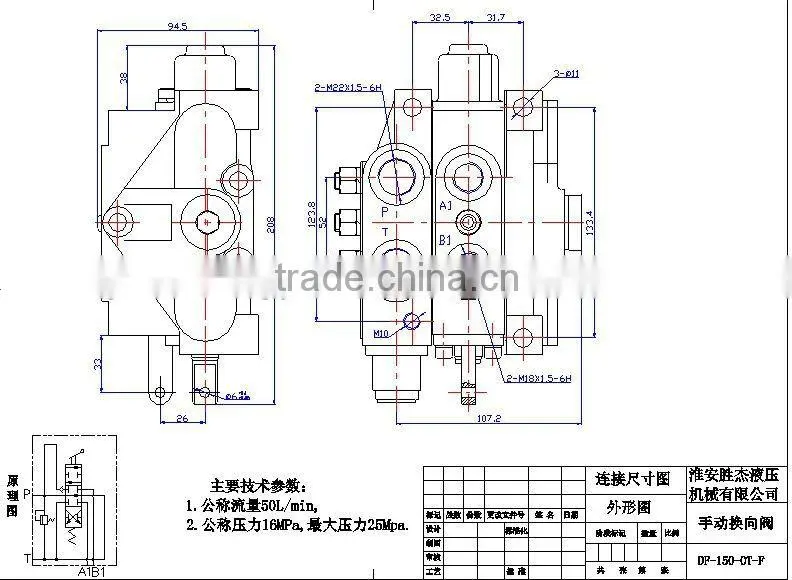

Take model DF50-1OT as follows for your kindly reference:
DF: product series;
50: corresponding flow is 50L/min; .
E: working pressure, 20mpa;
1:means 1working spool;
O: when the valve is in neutral position, the oil is circulated back into the tank;
T: spring return;
|
Nominal Pressure (Mpa) |
Max Pressure (Mpa) |
Nominal Flow (L/Min) |
Allowable Back Pressure (Mpa) |
Hydraulic Oil |
||
Temperature range(°C) |
Viscosity range(mm2/s) |
Filter Precision (μm) |
||||
20 |
31.5 |
50 |
≤1 |
-20~+80 |
10~400 |
≤10 |
1.FAQ>>About Delivery Term
Q…What’s the delivery term for making business with us?
A…Usually we send the shipments in FOB term.However,the terms of CIF and C&F are acceptable which depend of clients.
2.FAQ>>About Lead Time
Q…What’s the lead time after placing the order?
A…It takes about 15-30days after we received your confirmation.Howeve,it depends on our production line schedule and other force majeure that are out of our control.
3.FAQ>>About Payment Term
Q…What’s the Trade Term ?
A… FOB to your nearest seaport, as you require!
5.FAQ>>About material
Q...What is the material of your car lift ?
A...The main material is cast iron, steel !
6.FAQ>>About your company
Q...Are you a factory or trading company?
A...We are a factory !
