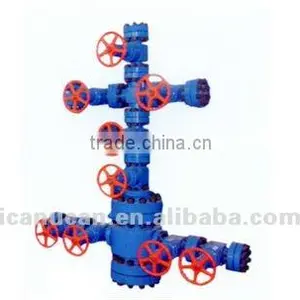

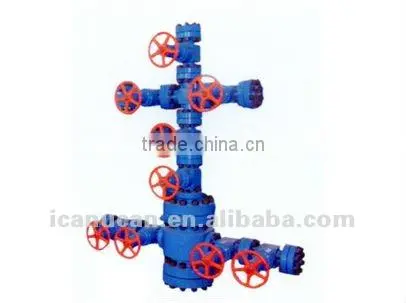

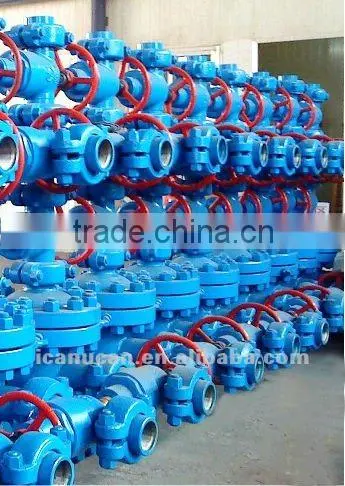

Injection Wellhead Assembly
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
luwei, luwei
Model Number:
/
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Beijing/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Cable Head PartsNegotiableMOQ: 1 Piece -
Wellhead, Christmas Tree, Casing Head, Tubing HeadNegotiableMOQ: 1 Set
-
F Series Mud Pump for DrillingNegotiableMOQ: 1 Set
-
Hight Quality Cable Head PartsNegotiableMOQ: 1 Piece
-
TD230/TP387 Series Electrical Submersible Pump (ESP)NegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
luwei, luwei
Model Number
/
Type
Other, Christmas tree
Machine Type
Other, Drilling Equipment, Drilling Equipment
Certification
API
Material
Other, steel
Processing Type
Other, /
Use
Well Drilling
Specifications
1. Control and adjust oil well production2. Provide various downhole operation
3.Simple in construction, light in weight a
wellhead assembly christmas tree consists of casing head, tubing head and Xmas tree, which are applicable for connection of casing string and tubing string, sealing the annular space between casing and tubing and controlling the pressure of the production wellhead and adjusting the flow rate of oil/gas wellhead as well as some special operations such as fracturing, injection and test etc
Technical Specifications of Wellhead Assembly
- Working Pressure: 2000-20000psi
- Working Temperature: PU Material Class: AA-FF
- Available Medium: Crude Oil, Water, Gas
- Connection Type: Clamp, Flanged
- PR: PR1-2
- PSL: PSL1-3
- Normal Size: Main (in): 2-9/16, 3-1/8, 3-1/16
- Side (in): 2-9/16
Technical Specifications of Christmas Tree
- Working Pressure: 2000-20000psi
- Working Temperature: PU Material Class: AA-HH
- Available Medium: Crude Oil, Water, Gas
- Connection Type: Clamp, Flanged
- PR: PR1-2
- PSL: PSL1-3
- Normal Size (in): 2-9/16
Technical Specifications of Casing Head
- Connection type: Bottom Welded Type, Bottom Slip Type, Double seal Structure, Bottom threads connection
- Casing Size (in): 5-1/2, 7, 9-5/8, 12-1/4,13-3/8, 20, 30
- PR: PR1-2
- PSL: PSL1-4
- Material Class: AA-HH
Technical Specifications of Tubing Head
- Nominal Dia.(in): 7-1/16 ~ 13-5/8
- Working Pressure: 2,000~20,000PSI
- Working Temperature: - 60°C ~ +121°C (K,U)
- PSL: PSL1~4
- PR: PR1~2
- Material Class: AA ~ FF
Please contact us for more specific requirements.
