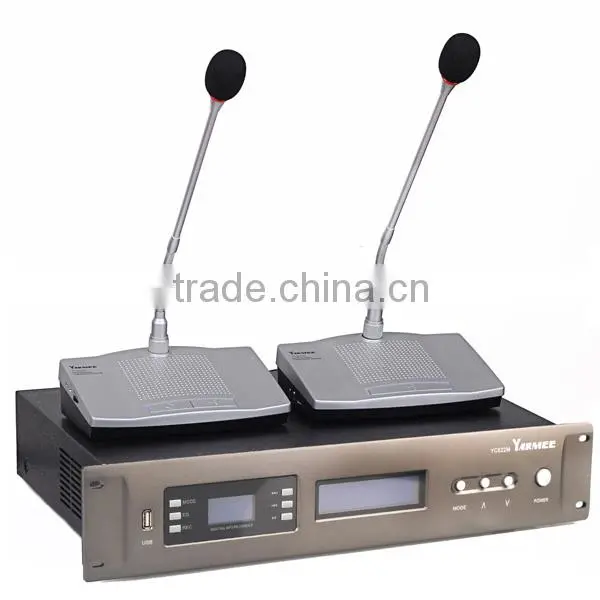

YC822 is a multifunctional conference system central unit, which centralized processing and control discussion ,clear sound, hi-fidelity, build-in mute function ,supporting USB recording function, support to connect up to 60 units microphone ,through extend power can connect 120 units, it supports for multiple meeting modes.
YC822M Main Controller
>. Built-in for recording by USB
>. highly resistant to mobile phone interference
>. Master control volume, LCD meeting place display alive.
>. Capable of telephones connection for remote teleconferencing.
>. The rack hole: fixed the main machine in the 19''standard rack.
>. Clear sound, hi-fidelity, Built-in mute function,and easily to setup.
>. LCD screen: Display the main machine’s working mode and working condition.
>. The main machine has 3 route can connect 60 units, through extend power can connect 120 units.
>. Four speech controlling modes:
A. Limited mode:1/3/6
B. FIFO: Only 1 unit can be ON, The last one unit ON will cut off the first one
C. Chairman Mode: Only Chairman can be ON.
D.Free mode: The entire unit can be ON
YC822M SPECIFICATIONS
NAME |
YC822M Main Machine |
input/output |
8P-DIN×4 |
input |
XLR*1 RCA*2 |
output |
XLR*1(Balance)RCA*1 |
power supply |
AC220V-50HZ |
current drain |
120W(MAX) |
frequency response |
100-14KHZ |
dimension |
480×325×85mm |
weight |
9.5kg |
colors |
Dark Gray |
YC822C/D Chairman/Delegate Unit
>. Match with 2.1M connection cable.
>. Highly resistant to mobile phone interference
>. With two microphone input design (adding the lapel microphone hub )
>. Inside work with DC24V power by Main machine, It’s safety for users.
>. Loudspeaker with auto mute has earphone jack and volume adjusting knob.
>. Chairman unit with priority speaking, can off each representative speaking unit.
>. Chairman can shut down all delegates
>. Cardioid condenser microphone: gooseneck microphone with red indicator LED
>. Open the microphone automatically mute speakers with headphone jack and volume control knob.
YC822C/D SPECIFICATIONS
NAME |
YC822C/D MIC UNIT |
input/output |
8P-DIN×1(2M) |
input |
Condenser Microphone |
power supply |
DC24V(Supplied by the host) |
current drain |
40mA |
sensitivity |
-47Db |
s/n |
65Db |
frequency response |
100-10KHZ |
weight |
1.1kg |
dimension(W,D,H) |
190×130×56mm |
colors |
Silver/Gray Black |
installation |
Desktop |
MIC Stem Length |
400mm (Activity) |
