P10 Module 320x320mm China Full xx Color Led Display Video

Name: P10 Module 320x320mm China Full xx Color Led Display Video
Brand: LIYI
SKU: 100368517

P10 Module 320x320mm China Full xx Color Led Display Video thumbnail-1

P10 Module 320x320mm China Full xx Color Led Display Video photo-1

US$ 500 - 5,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

LIYI

Model Number:

LIYI-P10-OD-FC

Contact Supplier Request Quote Chat Now

Shenzhen Liyi Optoelectronic Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LIYI

Model Number LIYI-P10-OD-FC

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

P10 module 320x320mm Alibaba China full color led display video

2 years warranty

Module size	Pixel pitch	Pixel configuration	Scan method	Brightness	IP grade
320*320mm	10mm	1R1G1B	1/4 scan	≥7000CD	IP65

Factory price,good quality,you best choice!

-waterproof, lightning protection, radiation proof,

-high brightness, good stability,

-rich colors, large area display, long life

-multi-choice cabinets (waterproof cabinets, simple box, die-cast box)

-asynchronous or synchronous control

Features:

· 10000 pixel dots per square meter resolution

· With super-high brightness LED, high contrast

· High frame frequency, wider view angel

· With module development and distributed scan

technology, high reliability

· Universal AC input / full range

· IP65 protection level, outdoor solution

· PC synchronous or asynchronous control(optional)

· Use common video play software, easy to use

· 2 years warranty

SPECIFICATION

Item	LIYI-OD-P10DIP	LIYI-OD-P10SMD
Pixel pitch	10mm	10mm
Pixel density	10000 dots/m2	10000 dots/m2
Pixel configuration	1R1G1B(346DIP)	1R1G1B(5050SMD)
Max brightness	8000 nit	8000 nit
View angle(horizontal)	±55°	±60°
Gray scale	65536 (16 bit)	65536 (16 bit)
Colors	16.7M	16.7M
Color temperature	6500K	6500K
Refresh rate	3000HZ	3000HZ
Contrast ratio	4000:1	4000:1
Frame rate	60HZ	60HZ
Standard cabinet size	960×960mm	960×960mm
Weight	60KG/m2	45KG/m2
Cabinet resolution	96×96 pixels	96×96 pixels
Cabinet material	Steel (cold rolled iron) or Aluminum (optional)	Steel (cold rolled iron) or Aluminum (optional)
Protection level	IP65	IP65
Max power consumption	900W/m2	900W/m2
AVE. consumption	400 W/m2	400 W/m2
Drive Method	1/4 scan, constant current	1/4 scan, constant current
Malfunction dot rate	0.1≤‰	0.1≤‰
Control mode	PC synchronous or asynchronous control(optional)	PC synchronous or asynchronous control(optional
Input voltage(AC)	AC90—240V	AC90—240V
Operation voltage	DC5V	DC5V
Operation temperature	-20~60℃	-20~60℃
Operation humidity	10%~90%	10%~90%
MTBF	1000h	1000h
Life span	100000h	100000h

Outdoor full color display refers to the all-weather LED display applied in outdoor complex environment, connecting optics, microelectronics, information processing, mechanics and other technologies as a whole. The main application areas: Government Plaza, leisure square, Cultural Square, large entertainment plaza, commercial center, advertising- information publish board, commercial street, railway stations, airports, bus stations, subway, shopping malls, supermarkets, hospitals, hotels , education system, bank, securities markets, auction houses, shopping centers, media centers etc.

LED display types:

Type	Dot Density(dots/m2)	Cabinet Size	Brightness(cd/m2)	Max Power(w/m2)	Weight( kg/m2)	Cabinet Material
LIYI-OD-P6	27777 dots	768×768mm	≥6000cd	1000W	55 kg	Simple steel(Alu)cabinet, standard steel(Alu)cabinet
LIYI-OD-P6.67	22500 dots	640×640mm	≥6000cd	900W	45 kg	standard steel(Alu)cabinet, die-cast Alu cabinet
LIYI-OD-P8	15625 dots	640×640mm	≥6500cd	900W	45 kg	standard steel(Alu)cabinet, die-cast Alu cabinet
LIYI-OD-P10	10000 dots	960×960mm	≥6500cd	800W	65 kg	Simple steel(Alu)cabinet, standard steel(Alu)cabinet
LIYI-OD-P16	3906 dots	1024×768mm	≥8500cd	1000W	60kg	Simple steel(Alu)cabinet, standard steel(Alu)cabinet
LIYI-OD-P20	2500 dots	1280×960mm	≥6500cd	800W	55 kg	Simple steel(Alu)cabinet, standard steel(Alu)cabinet
LIYI-OD-P16 energy-saving	3906 dots	1024×768mm	≥8500cd	500W	60 kg	Simple steel(Alu)cabinet, standard steel(Alu)cabinet

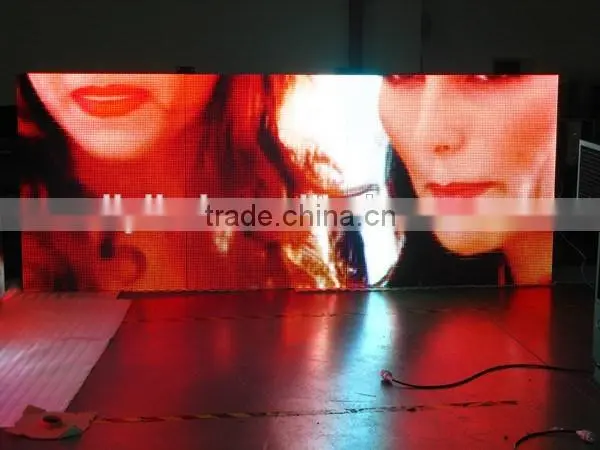

Products Shows:

Function:

-display content: text, pictures, video, and can receive several kinds of video signals like TV, VCR, DVD etc.;

-diverse cabinets: column mounted, hanging mounted, place installation, lifting installation etc.

Asynchronous control mode: cable, U disk (USB), Wireless (WIFI), LAN, Internet, mobile networks (3G/4G), 8 control modes (can be freely selected according to the actual scene). As follows:

Synchronous control mode: synchronous convenience control and synchronous supersized-screen control (can be freely selected according to the scene). As follows:

Certification:

LED display installation reference:

Any question please inquiry now!!!
