Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D Led Pharmacy Cross Edit Software

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D Led Pharmacy Cross Edit Software thumbnail-1
Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D Led Pharmacy Cross Edit Software thumbnail-2
Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D Led Pharmacy Cross Edit Software photo-1
Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D Led Pharmacy Cross Edit Software photo-2
US$ 115 - 125 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LIYI
Model Number:
48*48 64*64 96*96 128*128
Contact Supplier Request Quote Chat Now
Shenzhen Liyi Optoelectronic Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LIYI
Model Number 48*48 64*64 96*96 128*128
Usage Other, indoor/semi-outdoor/outdoor
Tube Chip Color Other, single color/dual color/full color
Display Function Other, graphics/animation/video/time/date/temperature/humidity
Pixels Other, P8 P10 P16 P20 P25
Screen Dimension 50*50cm 60*60cm 80*80cm 96*96cm 102.4*102.4cm 120*120cm 128*128cm



Product Description

Professional pharmacy cross manufacturer, 2 years warranty

over 30 types, factory price, custom make

Skype:liyisales03

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software



1.Controller Introduction

C-Power 3series card is more powerful with lower price, which make them much higher cost-performance and more competitive in the market.

C-Power 3series card is with 4096-grade grey-scale, support smart setting, easily to set all kinds of LED display.

C-Power 3series card and C-Power full series products the same, with the same external protocol and secondary development interface.



2. Technical Parameters:

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software

Control size

(full , mono/RG color)

256*64pixels, 4096-grade gray scales

Memory

Totol size: 256MByte(2GMbit)
Program size: 128MByte
Font library space: 128MByte

Program

All programs are transmitted by compression package, and then decompressed on control card.
Supports video program
Supports animation(swf,gif) , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust
Transparent text and clock program can be edit to cover photo or video
More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
With multi-program mode. Stores up to 512 programs to the Led screen.
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
Supports programs played at the appointed period (for example: week, hour, minute )

Separate window mode

Supports the segmentation of up to ten playing windows for each program.
Supports playing the content in different formats for each playing window.

Affiliated features

With real-time clock (RTC) management and setting, support digital and analogue clock.
Supports environmental data programs like temperature, etc.
Supports sensors installed externally (32-grade brightness)

Font library

128MB font library space
The card can be stored different fond library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc.,

Standard software

LedCenter V5.30 or above

Standard communication mode

RJ45 and U disk version:TCP/IP communication,USB interface

WIFI version:integrate WIFI module
GPRS version:integrate GPRS module(Dual band or Quad band)

All version of the standard RS232/RS485 : maximum baud rate: 115200

InDa remote & keyboard

Program list edit and display control by infrared controller or keyboard

External communication components

Supports various wireless communication modes: ZigBee, RF...

Others

Provides customized development interface andits manual.
Provides demonstration program and source codeforcustomized development
Besides, provides “Wireless information issue”version.

Plug board and gusset plate

Four HUB75 interface on board:(KB21 interface)

2 G1 N  G2 N  B   N   LD  N  16
1 R1 B1 R2 B2 A  C  CK  OE15

One 20P interface on board(OUT5),can match adapter plate

KB020(HUB08) interface:

2 A  B  C   D  G1  G2 LD CK 16
1 N N NC OE R1 R2  N   N  15

KB004(HUB12) interface:

2  A   B  C  CK LD R G D 16
1 OE N N   N   N   N N N 15

KB002(HUB40) interface:

2  NC NC NC NC  N   N   N   N16
1  R1  G1 R2  G2 CK LD OE N15





3.Control mode:

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software

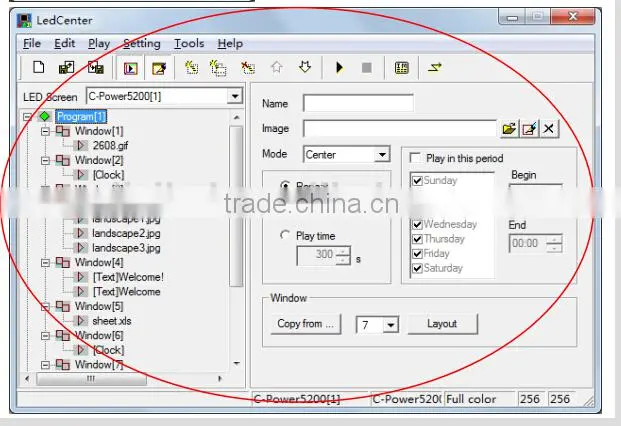

4. Software interface:

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software

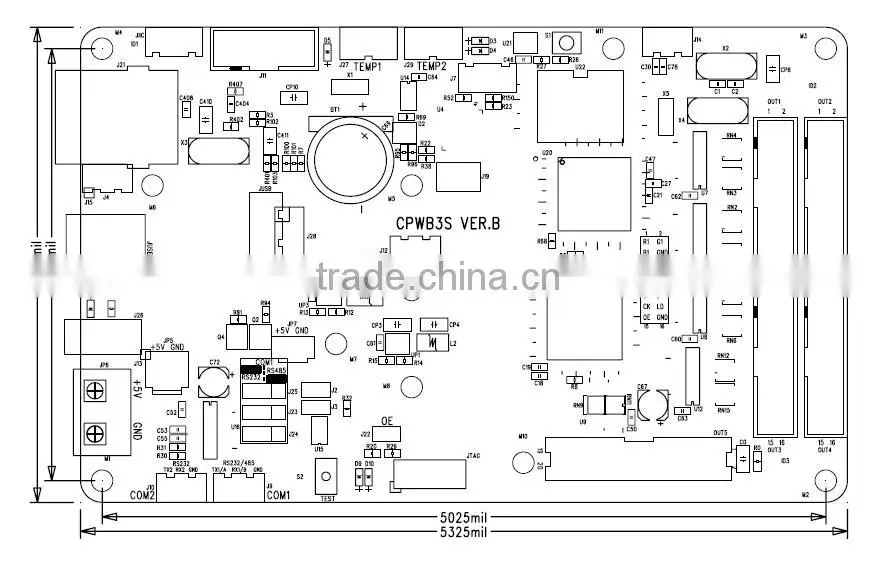

5. Dimension Drawing:

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software

Packaging & Shipping

6.Packing&Shipping

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software

-Strengthen carton box/plywood boxes.
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.

  Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software



Our Services

7.Our Service

1) Shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.

2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.

3) Accept custom design; professional R&D team design the most suitable product for you.

4) Factory production capacity guarantees your order delivery.

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software



Company Information

LIYI display is a Chinese company which specializes in the designing, developing and manufacturing of advanced technologic optoelectronics display systems. Our many years of experience in this area allow us to guarantee the quality and safety of our products, the philosophy of our company is the continuous improvement in the development and design of our products. Promote your products with LED displays!!!

Main products: LED pharmacy cross, LED glasses&TABAC&PRESSE sign, LED sign, LED display, LED taxi/bus sign, LED display accessories.

Shenzhen LIYI RF WIFI RJ45 C-power 2D 3D led pharmacy cross edit software

FAQ

8.After-sale Service

-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.

-For installation and operation, any question, contact anytime via email&skype&phone call.

-Direclty remote control via team viewer.
