adapter 100v 220v 12v 3000ma power adapter for led lighting
Your Best Partner-LYD
1,High efficiency and energy saving--Meeting US DOE VI levels
2,Our raw materials imported from TDK STON,Toshiba,Rubycon,IR,fuji, AUK---Making sure our
high quality
3,Input voltage 90-264V 47/63HZ ,with the standards of global use
4,Hi-pot 3kV
5,Several hours ageing test
Product Details
Product features:
1.wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.
2.with short circuit, overload, over-current protection function, use more safety.
3.100% full load test, stable performance.
4.good insulation properties, high dielectric strength.
5.the anti-jamming good strength, high reliability.
6.switching power supply performance of DC ripple small, high work efficiency, energy saving and
environmental protection.
ducts through international certification requirements.

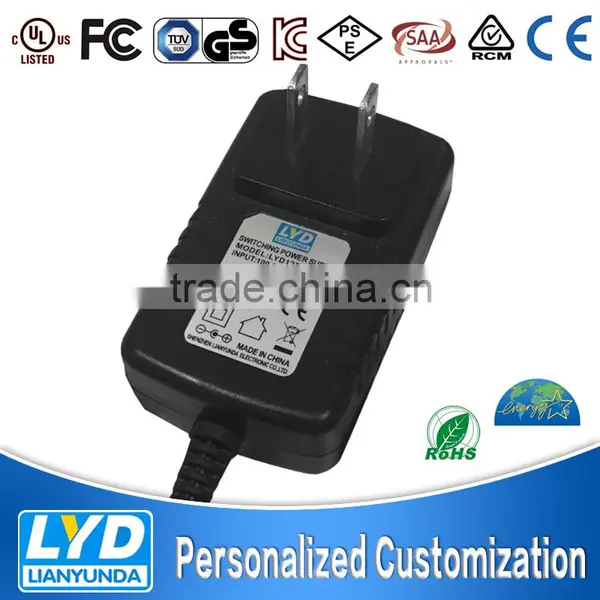

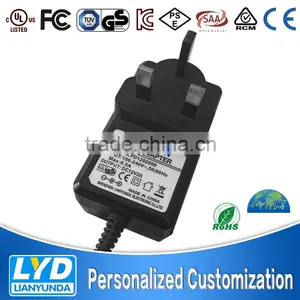

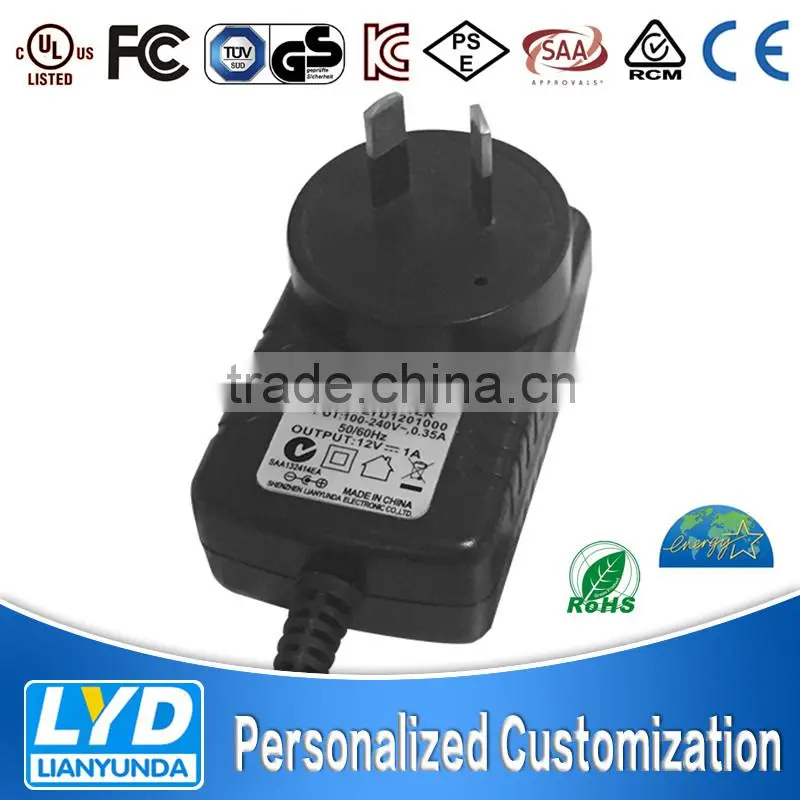

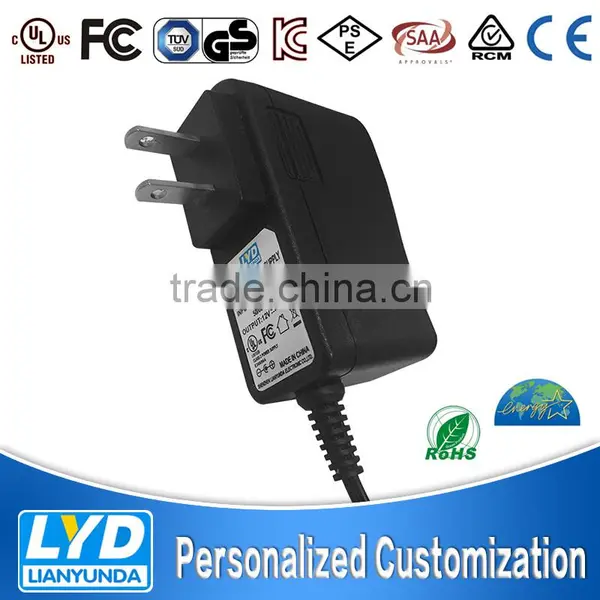

Product picture:
Output Power Range |
19V2.5A 48W 19v 10a 190w (also have those models for selection) |
Input Rated Voltage |
100Vac~240Vac |
Input Frequency Range |
50Hz~60Hz |
Input Current |
less than 0.5A |
Input Inrush Current |
less than 50A |
Efficiency |
85%(MIN)at Rated Voltage |
Leakage Current |
less than 5mA |
Standby power |
less than 0.5w |
Ripple and Noise |
less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time |
less than 3S (AC:110V and full load) |
Dielectric Voltage |
A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection |
output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature |
-10°C - +45°C |
Storage Temperature |
-20°C - +40°C |
Safety Standard |
EN61347 UL/cUL 60950-1 CLASS2 1310 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
Different DC Jack:2.5*5.5*10mm / 2.1*5.5*10mm / 1.35*3.5*10mm/Aviator
connector / XLR connector
product safety for wideworld country
UL60950:From 3W To 230W (Certification No.:E336005)
UL CLASS II 1310: P<100W (Certification No.:E360964)
EN61347:NTEK-2013DG1203558
EN55015
EN61547
EN61000-3
KC:From 3W To 150W (Certification No.:HU10560-14002B)
GS:From 3W To 120W
PSE:From 3W To 200W
SAA/C-TICK:From 5W To 150W
adapter 100v 220v 12v 3000ma power adapter for led lighting
Shenzhen LianYunda Electronics Co., Ltd. is a professional manufacturer in developing
producing and marketing of switching power supply, power adapter, LED power supply,
waterproof LED power supply and battery chargers, Our logo (POADAPTOR) means
power adaptor. Relying on a 30 years experienced engineer team, all of our products are
safety compliance such as IEC950,60335,61558,EN60335,61558,UL1950,1310,1012.
More than 800 varies kinds of products covered 3W to 150W power supply which are
UL,CUL,TUV,GS,CE,CB,BS,SAA,PSE,C-Tick,EK,CEC,EMPS,ERP safety certificated.
Application:
