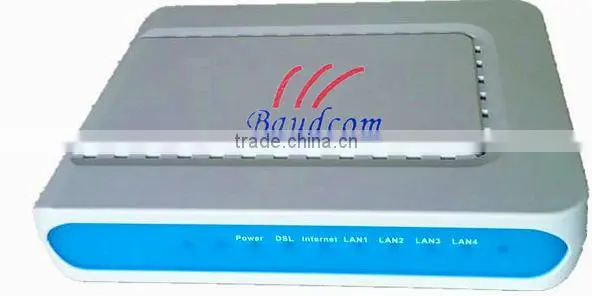

4port FE ADSL2/VDSL2 IP Multiplexer

Name: 4port FE ADSL2/VDSL2 IP Multiplexer
Brand: Baudcom - VDSL2 Modem
SKU: 100390599

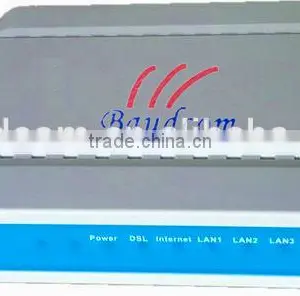

4port FE ADSL2/VDSL2 IP Multiplexer thumbnail-1

4port FE ADSL2/VDSL2 IP Multiplexer thumbnail-2

4port FE ADSL2/VDSL2 IP Multiplexer photo-1

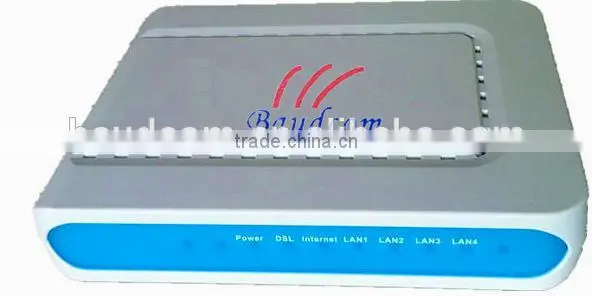

4port FE ADSL2/VDSL2 IP Multiplexer photo-2

US$ 150 - 200 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Baudcom - VDSL2 Modem

Model Number:

BD-STV504

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

VDSL2 Modem will be shipped to Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Baudcom - VDSL2 Modem

Model Number BD-STV504

VDSL2 Modem with 4port FE + ROUTER

Overview

The VDSL2 Modem is a high-speed transmission on the twisted-pair digital subscriber line DSL equipment, which was designed with a high transfer rate, easy to install and convenient to use simple features. Using the traditional telephone lines, users can access and enjoy high data transfer rates. The Theoretical data transfer rates of STV504, upstream rate and downstream rate can reach up to 100Mbps that means it supports support data and voice transmission. Through a standard copper telephone lines, We can enjoy such as high-definition television (HDTV), (Video-on-demand), (video conferencing),with high involvement Internet and VOIP voice services.

VDSL2 Modem can be achieved with the mainstream market VDSL2 chip, system manufacturers of central office / customer premise equipment for VDSL2 connection; or VDSL2-point high-speed connection. Supports WEB management, you can login through the browser to support the DIP switch to set master & slave, convenient for user to install and use.

Features

4*10/100M Ethernet ports

Highest down/upstream speed reach 100Mbps

Support WEB management

Build in splitter available for phone

Reset default button

CO or CPE mode can be changed

Easy to use and install

Standard

Support VDSL2

VDSL2 Modem ITU G993.2

8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a

Support ADSL2+

ITU G.992.5 Annex A

Support ADSL2

ITU G.992.3 (G.dmt.bis) Annex A

ITU G.992.4 (G.lite.bis) Annex A

Interfaces

LAN

4x 10/100Base-TX MDI/MDIX RJ-45 port

Compliant with following standards:

1. IEEE 802.3/802.3u

2. Hardware based 10/100, full/half, flow control auto negotiation

3. Non-blocking wire speed reception andtransmission

4. Full duplex IEEE 802.3x flow control and halfduplex back-pressure flow control

WAN

1x inner pair RJ-11 VDSL2 port

Data Rate:

Downstream:up to100Mbps

Upstream: up to 50Mbps

Rate Adaptation:

Data rate auto-negotiate in 32 kbps increments

Performance:

TR-067/ TR-100 Interop performance compliant

S/W Features

Firewall	Stateful Inspection	SPI Fire Wall
	Denial of Service attack	Passed DOS attacks: ARP Attack, Ping Attack, Ping of Death, Land, SYNC, Smurf, Unreachable, Tear Drop
	TCP/IP/Port/interface filtering rules	Support both incoming and outgoing filtering.
	MAC Layer Filtering	Added IGMP in protocol menu. Filter MAC frames based on protocol type, source/destination MAC address, direction
	Day-time Parental Control
VPN	IPsec VPN(optional)	Support VPN connection to remote VPN gateway.
QoS	IP/Bridge/802.1p QoS	Supported both routed and bridged mode PVCs for packet level QoS: classification rules, priority queuing using ATM TX queues, IP TOS/Precedence, 802.1p marking. Added DiffServ DSCP marking and src/dest MAC addresses classification.
Configuration and Management	Web based GUI
	Embedded web server
	Download image via HTTP or tftp client
	Download image via FTP server
	Download image via TFTP server
	Command Line Interface via serial port, telnet, or ssh	added dumpcfg, sntp commands. Added option to tftp, adsl, wan, ppp commands. Upgrade sshd to version 0.46.

FAQ

1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging & Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certifications

Factory production

Product testing

After-Sales Service

The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
