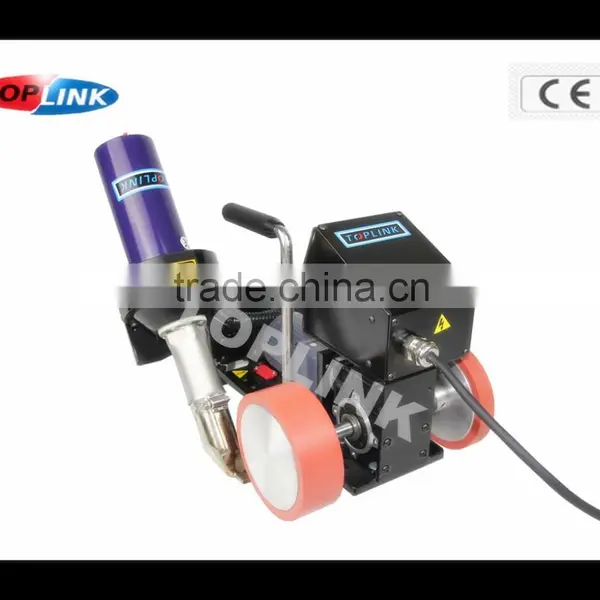

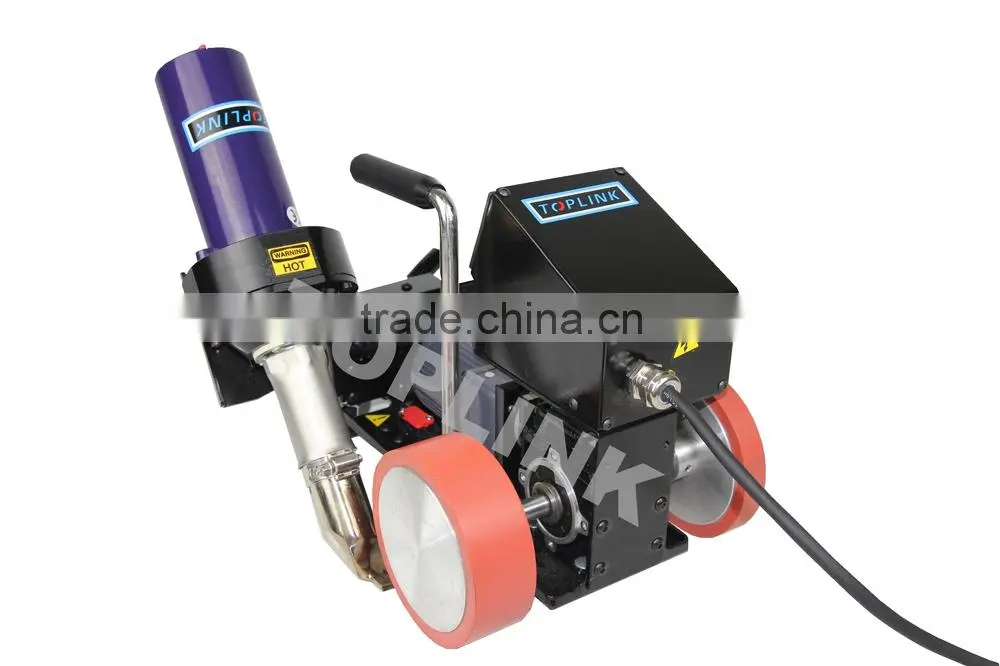

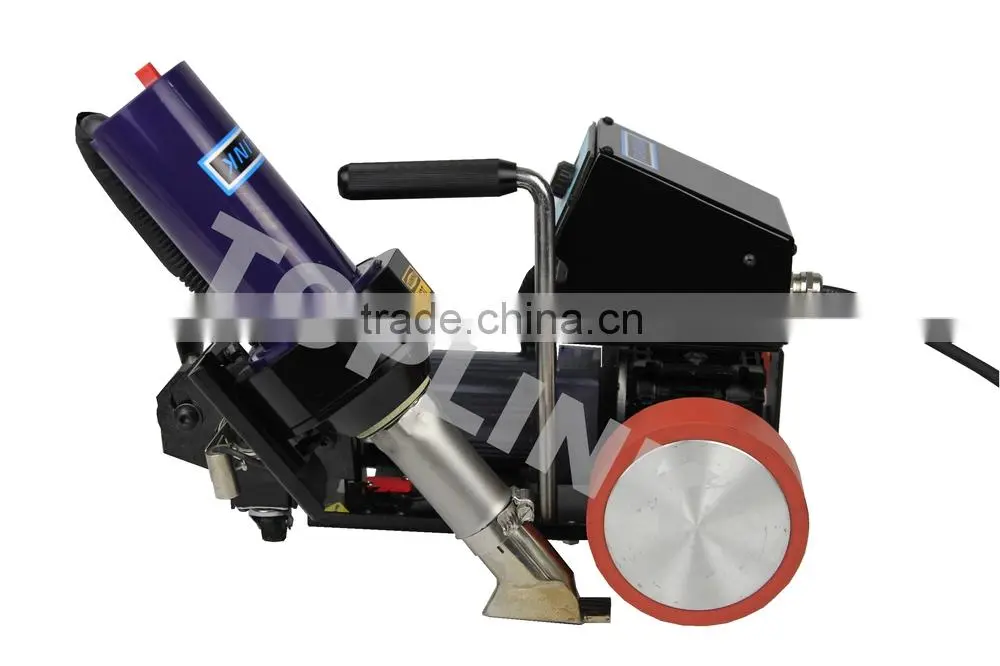

banner welding machine
Type: LZ-6001B
1. Technical data:
voltage |
V |
230 |
power |
W |
1680 |
Welding Temperature |
℃ |
20-620 |
speed |
m/min |
0.5-6.0 |
Welding width |
mm |
20/30 |
size |
mm |
420x270x210 |
weight |
kg |
11.5(include 3m electric wire) |
certificate |
CE |
|
2. Functions:
1. Could add lifting gear, easy to movie, ease operator’s work
2. Carbon brush replaceable, reduce
3. Unique welding pressure balance gear make welding best.
4. Infrared laser guide make the welding perfect without adjust during working.
3. Advantage and application:

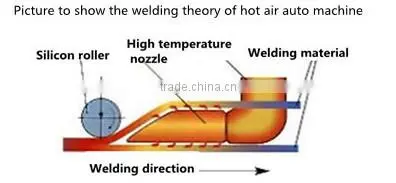

Temperature and speed separate control, easy to operate, high performance hot air overlap welding machine, apply in welding industry cloth and outdoors banners.
4. Notice:
1. During operating, if the surface cloth is dissolved and scorched or the cloth are not sticked together, please stop to adjust the temperature or speed.
2. During operating, if the seaming part is not in right position, please stop to adjust fixing position.
3. During operating, make sure clothes are flat so that stick together smoothly.
4. The hot wind of heater cannot touch the press-wheel or the rubber of press-wheel is easy to be burned down.
5. Adjust temperature to zero before turn off the heater. Switch off after 5-10 minutes.
