Product: Hot Selling dual fiber 20km 4 ports fiber media converter
Overview:
The Hot Selling 4 ports fiber media converter transmits 10/100Base-T Ethernet electrical signal through fiber, realize TX/FX converter
Features:
4 UTP port,1fiber port;
Conforms to IEEE802.3,IEEE802.3u (10Base-T,100Base-TX,100BaseT-FX) international standard;
support single fiber or dual fiber optical port;
brings 1M buffer, supports 2KMAC address;
isolates network conflict and broadcasting package effectively, has the function of preventing broadcasting storm;
supports 802.1Q and 16 groups of VLAN;
single-mode connection:transmitting range can reach 120 kilometers.
support both 10/100M full/half duplex adapt and compulsive set 10M,100M,full duplex, half duplex, then convenient to connect CPE and protect previous invest when network upgrade
Product parameter:
| Fiber connector | FC,ST,SC connector |
| Single-mode 8.3/125, 8.7/125, 9/125, 10/125µm,transmission distance(20km~120km) | |
| Multi-mode 50/125, 62.5/125, 100/140µm, transmission distance (0~2km) | |
| Ethernet interface | RJ-45 (coaxial twisted pair) 10/100Base-TX: UTP RJ45 connector |
| Operating standard: IEEE802.3 10 Base-T, IEEE802.3u 100Base-TX and 100Base-FX | |
| UTP cable:non-shielded 5 class cable Cat.5UTP(MUX transmission distance is up to 100 meters) | |
| Environment condition | Operating temperature: 0°c~+50 °c |
| Storage temperature: -20 °c~+70 °c | |
| Relative humidity:95% (uncondensed) | |
| Dimension | 210(W) × 140 (L) x 30(H) mm |
| Power supply | DC power: DC-48V, AC power: AC220V |

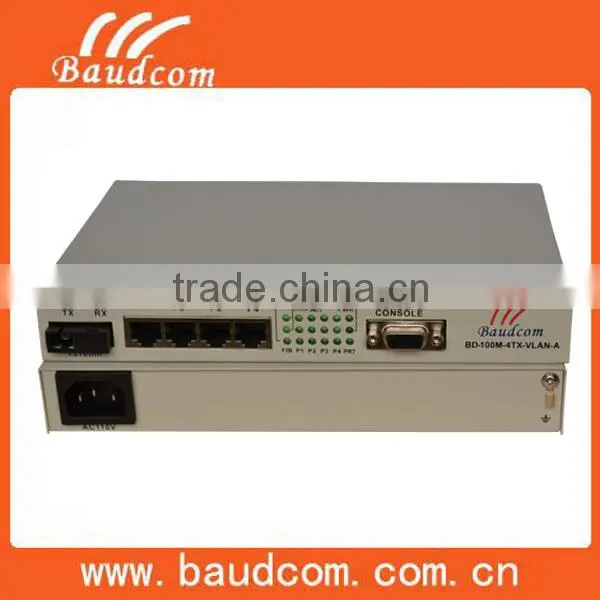

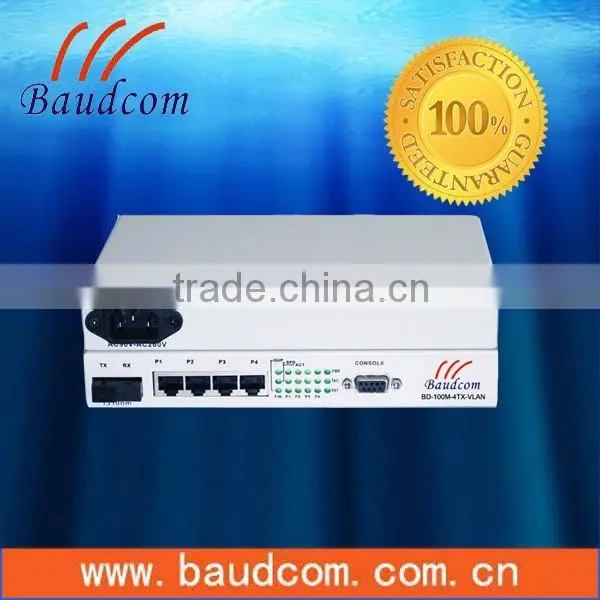

fiber media converter picture:
Application diagram :
Order information:
Item No |
Description |
Fiber mode |
Distance |
BD-100M-4RJ-2 |
4 ports fiber optic media convertor |
Multi-mode |
2KM |
|
BD-100M-4RJ-20
|
4 ports fiber optic media convertor |
Single-mode |
20 KM |
|
BD-100M-4RJ-60
|
4 ports fiber optic media convertor |
Single-mode |
60 KM |
|
BD-100M-4RJ-80
|
4 ports fiber optic media convertor |
Single-mode |
80KM |
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
