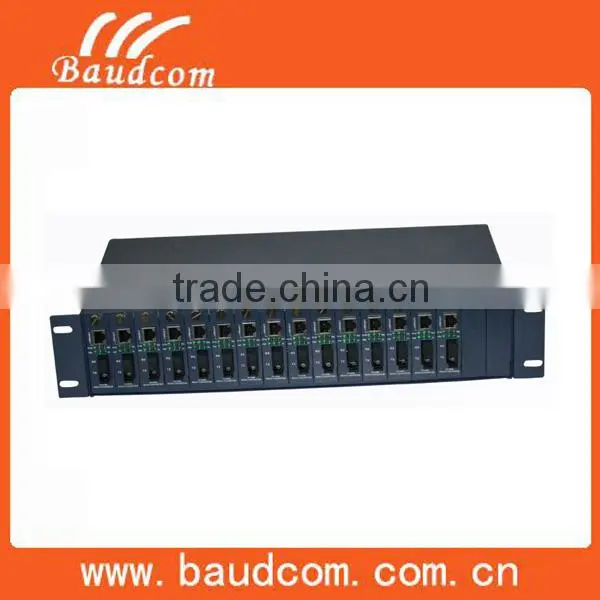

Product: model Unmanaged Chassis Media Converter
Unmanaged Chassis Media Converter transmit10/100Base-T Ethernet electrical signal through fiber, realize TX/FX converter. 14slots unmanaged media converter,2U 19",can insert different media converter module cards,it is also suitable for 10/100M and 10/100/1000M standalone media converter,double power .
- The configuration of active/standby power supply ensures uninterruptible operation of the system.
- Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;
- Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;
- Each card supports hot swapping;
- Applicatory module types: BD-100M series, BD-1000M series.
| Parameter | Specifications |
| Number of slots | 14 |
| Structure | 2U rack |
| Power input | AC Voltage: AC 85~265V; frequency: 50/60 Hz |
| DC voltage: DC -36~72V | |
| Power output | DC5V 16A |
| Power configuration | Single power supply, or dual power supply for warm backup mode |
| LED indication | POWER (power supply) |
| Max power consumption | 95W |
| Operating temperature | -10~55iC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70iC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions of rack | 90mm (H) * 485mm (W) * 245mm (D) |
Ordering information
| BD01/AC+AC | unmanaged media converter rack chassis,2U,19inch rack mount,14slots,double power AC+AC |
| BD01/DC+DC | unmanaged media converter rack chassis,2U,19inch rack mount,14slots,double power DC 48V+DC48V for redundant |
| BD01/AC+DC | unmanaged media converter rack chassis,2U,19inch rack mount,14slots,double power AC 220V+DC48V for redundant |
| BD01/AC | 14slots unmanaged chassis for media converter,support single AC power |
| BD01/DC | 14slots unmanaged chassis for media converter,support single DC48V power |
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
