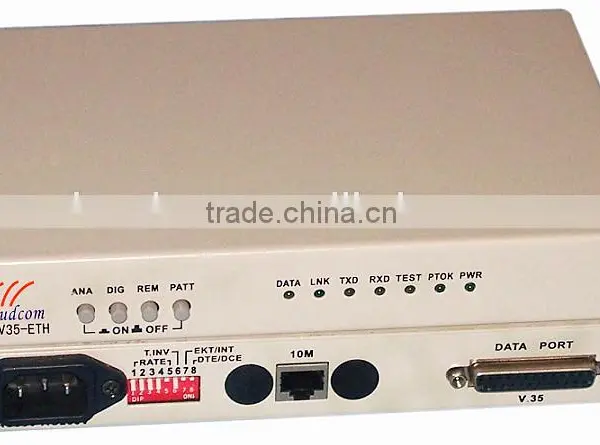

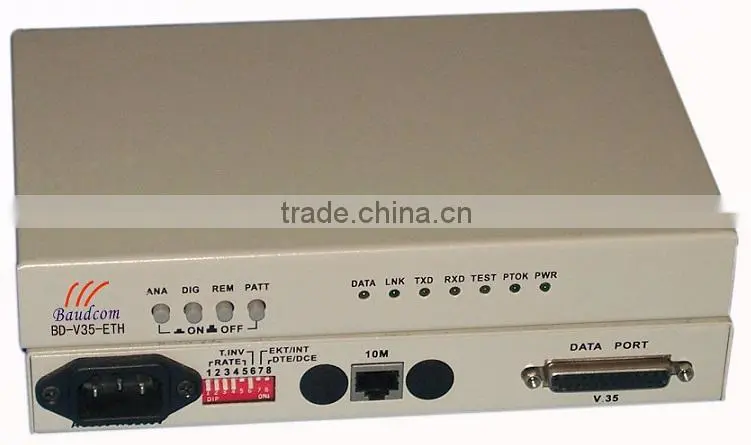

Product: 10/100Base-T Ethernet to V.35 converter
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
The Ethernet to V.35 converter provides conversion from V.35 to Ethernet, is a good performance, self-study long-distance Ethernet bridge. It is of small volume and low cost and is very suitable for connection application which needs low cost equipment.The ethernet to V.35 converter can be also used as an extender of LAN.
10/100Base-T Ethernet to V.35 converter
- completely compatible with IEEE 802.3/EthernetV.2;
- WAN circuit interface:V.35,rate auto-adaptable 0~100Mbps;
- circuit transmitting agreement:HDLC;
- rate of filter and transmitting reaches 15,000frame/s;
- 256 frame buffer ;
- 10,000 MAC address LAN table ;
- auto-study and update function ;
- supports DTC and DCE, external clock and internal clock;
Interfaces:
LAN Interface
Rate: 10/100M, full/duplex auto-negotiation
Protocol: Support IEEE 802.3,IEEE 802.1Q (VLAN)
MAC Address Entiries: 4096 Entiries
Total Memory Sizes: 64MBits SDRAM
Physical interface: RJ45, support AUTO-MDIX
V35 port
Interface: compatible with V.35 standard.
Connector: M34 male socket
Connect mode: DCE/DTE
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I – DC-48V,range DC-36V~DC-72V
option II – AC220V,range AC165V~AC240V
Power Consumption: <=3 Watts
environment condition
Operating temperature: 0C~+50 C
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
Order information | |
BD-ETH-V.35/AC |
10/100Base-T Ethernet to V.35 converter,Ethernet over V.35,AC 220V |
BD-ETH-V.35/DC |
10/100Base-T Ethernet to V.35 converter,Ethernet over V.35,power DC 48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
