Product:10/100M Ethernet Fiber Media Converter
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
10/100M ethernet fiber media converter translates transmission signals from a twisted-pair 10/100Base-Tx to 10/100Base-FX fiber optical cable. It has SNMP based intelligent network management,by which user can monitor and configure the copper port and the optical port of center chassis and remote standalone easily.

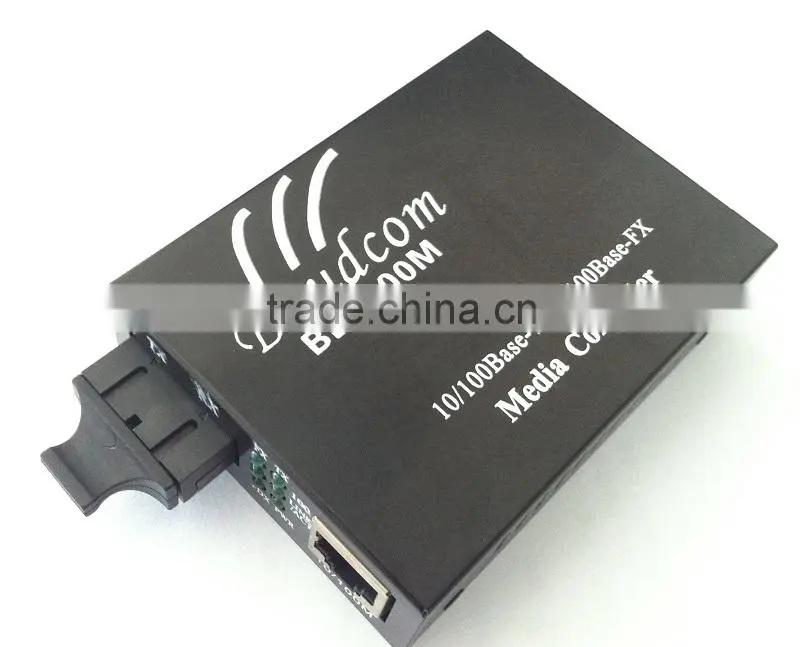

10/100M Ethernet fiber media converter Picture:
- Conforms to IEEE802.3,IEEE802.3u (10Base-T,100Base-TX,100BaseT-FX) international standard;
- Fiber Media converter support LFP function
- brings 1M buffer, supports 2KMAC address;
- isolates network conflict and broadcasting package effectively, has the function of preventing broadcasting storm;
- supports 802.1Q and 16 groups of VLAN;
- multi- mode connection: transmitting maximrange can reach 5 kilometers ;
- single-mode connection:transmitting range can reach 120 kilometers.
- Fiber Media converter built-in power supply or built-out power supply;
- support both 10/100M full/half duplex adapt and compulsive set 10M,100M,full duplex, half duplex, then convenient to LFP connect CPE and protect previous invest when network upgrades;
- could realize SNMP management, and install our 19inch 2U chassis.
| Optical Port: | 1.Support 100Base-FX 2.Adopt standard 1*9 pin optical transceiver module; 3.Wavelength: 850nm or 1310nm in multi-mode, 1310nm or 1550nm in single-mode; 4.SC/ST/FC optical connectors are selectable. 5.Transmission distance:Up to 120km |
| Ethernet Copper Port | 1.Data rate: 10/100Mbps; 2.Auto-negotiate on Full/Half duplex topology; 3.Connector: UTP RJ45 connector 4.Auto MDI/MDI-X |
| Environment condition |
Operating temperature: 0°c~+50 °c Storage temperature: -20 °c~+70 °c Relative humidity:95% (uncondensed) |
| Dimension | 118(W) × 70 (L) x 27(H) mm |
| Power supply | working voltage range wide, good anti-disturb and Isolation, work stable option I - DC-48V,range DC-36V~DC-72V option II -AC220V,range AC160V~AC240V |
| Order information | BD-100M-20 10/100M ethernet fiber media converter,dual fiber,SC connector,20km,power AC 220V or DC 48V. |
| BD-100M-40 10/100M ethernet fiber media converter,10/100M ethernet,WDM (sigle fiber),20KM,power AC 220V or DC-48V . |
WHY CHOOSE US Baudcom
1. Baudcom has been working hard in supplying various Communication equipment products for 15 years
2. Getting trusted by more and more customers home and abroad
3. One of the most reliable Communication equipment distributors for brands like Cisco Finsar brocade etc in China
4. Stable channel ensures the products quality and competitive pricing
5. Regularly 20K sets of Communication equipment inventory available for the instant delivery anytime when necessary
6. Professional team provides you with excellent buying experience, help you sort out all the concerns through out this process
We look forward to reaching a cooperation with esteemed your company, by providing the top-class quality products and 100% whole-hearted services!
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-100M-20 | 10/ 100M ethernet fiber media converter,dual fiber,SC connector,20km,power AC 220V or DC 48V. |
| BD-100M-30 | 10/100M ethernet fiber media converter,dual fiber,SC connector,30km,power AC220V or DC 48V. |
| BD-100M-40 | 10/100M ethernet fiber media converter,dual fiber,SC connector,40km,power AC220V or DC 48V. |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
