Home > Industrial Equipment & Components > Welding Equipment > Plastic Welder > HDPE Hot Wedge Welder

HDPE Hot Wedge Welder

Name: HDPE Hot Wedge Welder
Brand: TOPLINK
SKU: 100394075

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

TOPLINK

Model Number:

5001A

Contact Supplier Request Quote Chat Now

Shenyang Ocean Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name TOPLINK

Model Number 5001A

Voltage 220

Power 4500W

Weight 7.0kg (include 3m power line)

Usage Apply to weld HDPE, PVC, LDPE

Product Description

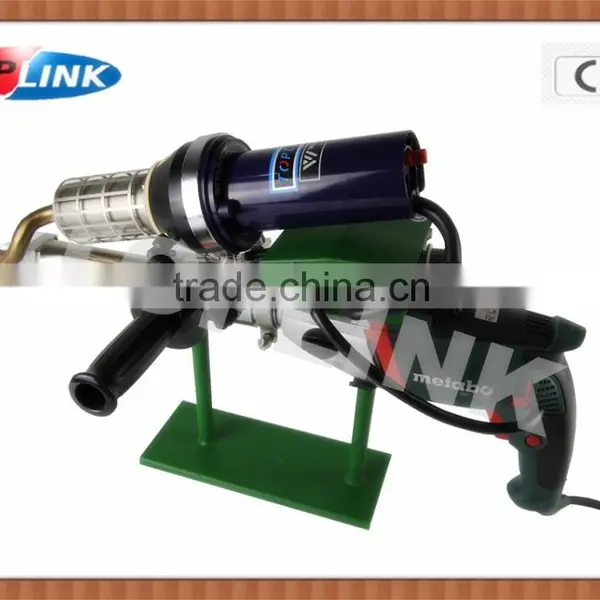

Plastic Extruding Welder, plastic extruder

Type: LZ-5001A( Metabo+W4)

1. Technical data:

voltage	V	220
power	W	4500
material		PE/PP
Welding rod	Ø mm	3-4
hot air temperature	℃	Max 620
Plastify temperature	℃	Max 370
PE extrude amount	Kg/h	3.5
weight	kg	7.0(include 3m power line )
certificate		CE

2. Functions:

1. Powerful with similar products

2. Motor can’t start when temperature doesn’t reach minimum value

3. Easy to operate

4. welding shoe fixed in any angel

5. Double heat ways

6. Warm-up temperature and extruding amount adjustable.

3. Application scope:

1. Thermoplastic plastic HDPE.PP. PVDF, especially PE can show the characteristic best.

2. It is forbidden to use for electric conduction plastic (PE-EL), which can bring electric conduction short circuit of machine.

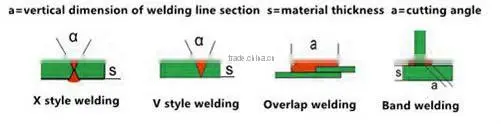

3. It can once weld the line with width of more than 10mm and plastic board with 40mm below.

4. This machine is used for the fourth part of the barrel bath and the tub and accords to

5. the standard of the DVS(Germany Welding Association)

4. Advantage:

Powerful and humanized structure, easy to operate, double heating ways, low temperature pause automatically, guarantee the best welding quality, bring surprise to customers all the time.
