Specifications
Professional Automatically Operating Cutting OTR tires machine1.Cutting waste OTR tire
2.Enclosed rational reducer.
---Solutions to doubts
Is there large quantites of waste OTR tires stocked in your country?
have you think up of any ways to process them?is it too hard to process the same?
now Professional Automatically Operating Cutting OTR tires machine
can help you to deal with them within least costs and labors.
---2014 automatically OTR tire cutting machine
is to separate 2 rings(sidewalls) from OTR tire.
Structure:
this machine is made up of rotary plate,rotary gearing,locking device,fix tire bead device,beam,wheel,blade working device.
Main parameter:
(1)model: QKF2400
(2)process range:1600-2400mm(max diamter<4000mm can be processed)
(3)equipped with power:three phrase four line 380V 50Hz
(4)motor power: 7.91KW
(5)capacity:3-10pieces/h
(6)weight:about 1500kg
(7)size: 2900×2400×2630mm(l*w*h)
main advantage:
1.single electric cabinet to control whole operating process
2.automatically cooling water device
3.automatically cutting process,no harm to labors
4.foundation can be made to cover machine for removing tire easily

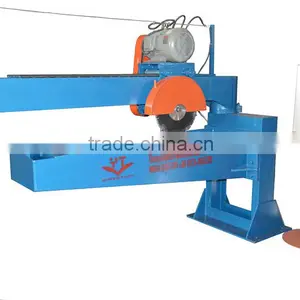

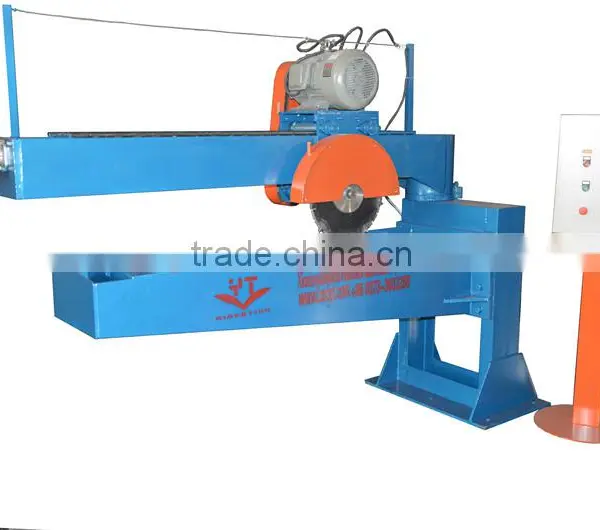

---2014 OTR tire cutting blocks machine is to cut OTR tire into some pieces.
Structure:
this machine is made up of rotary beam,blade working device,cooling water device.
Main parameter:
(1)model: QG1000
(2)process range:1600-2400mm(max diamter<4000mm can be processed)
(3)equipped with power:three phrase four line 380V 50Hz
(4)motor power: 5.87KW
(5)capacity:3-10pieces/h
(6)weight:about 1200kg
(7)size: 2500×1000×1800mm(l*w*h)
main advantage:
1.single electric cabinet to control whole operating process
2.automatically cooling water device
3.automatically cutting process,no harm to labors
4.foundation can be made to cover machine for removing tire easily
---Welcome inquiry from overseas friends,Contact us at any time!
Tel:+86(0)373 3033288
Fax: +86(0)373 3692059
mobile:+86 15936531984
skype:wjangelabaibai
Address:Xinpu Road,Xinxiang City,Henan Pro.China
