Help CenterLab Liquid High-shear Emulsifier
Related Products
-
Dust Free Powder Liquid Inline EmulsifierNegotiableMOQ: 1 Set -
Dust Free Powder Liquid Inline MixerNegotiableMOQ: 1 Set
-
Dust Free Inline Powder Liquid Dispersing PumpNegotiableMOQ: 1 Set
-
Dust Free Inline Powder Liquid Dispersing EmusifierNegotiableMOQ: 1 Set
-
Industry Inline Powder Liquid Dispersing EmusifierNegotiableMOQ: 1 Set

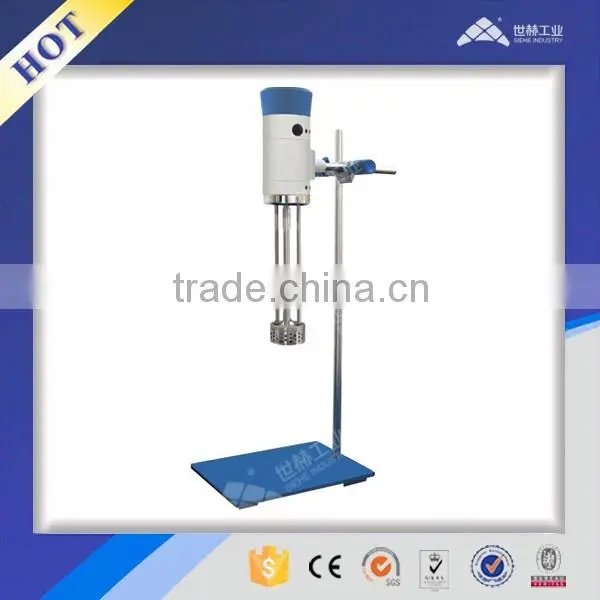

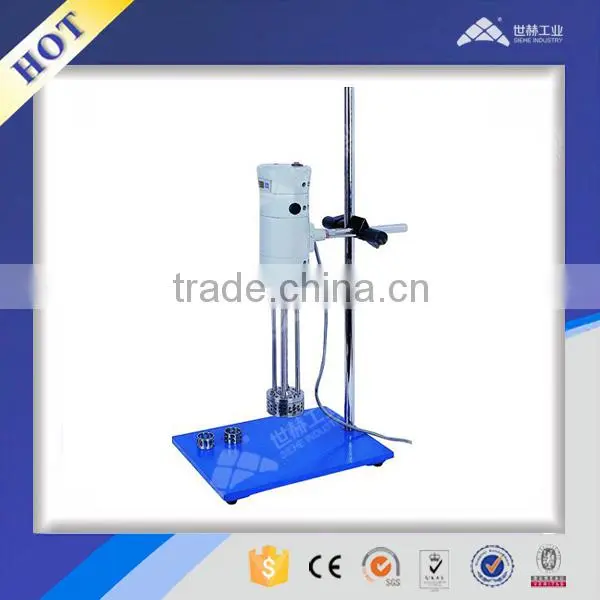

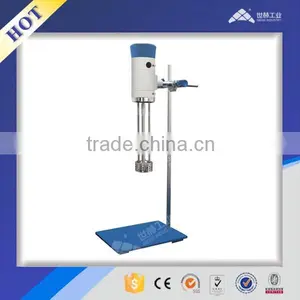

Lab liquid High-shear Emulsifier is a lab machine designed for small quantity experiment in lab. It narrows the particle size of Liquid-liquid and liquidsolid materials through external mechanical force and distributes one phase materials into another phase or many other phases evenly to realize good homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion. Several workheads are available. The smallest applicable container is standard tube with diameter 15mm.
Working Principle
highspeed rotation motor drives the rotor to rotate at high speed, which generates vacuum environment between the stator and rotor. So materials are sucked into the chamber from the top of the stator &rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier.
Specification
Model |
Voltage |
Power(w) |
Speed(rpm) |
Adjusting speed way |
Speed display |
Rotor head diameter(mm) |
stator head specifications(mm) |
Materials |
Capacity (L) |
Lifting |
SRH-S450 |
220V 50HZ |
450 |
0-12000 |
Button type, various speed control |
Digital display |
Φ28 |
mesh, long hole, round hole |
contacting part SS304 |
0.2-5 |
Manual lifting |
