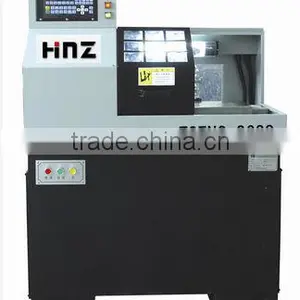

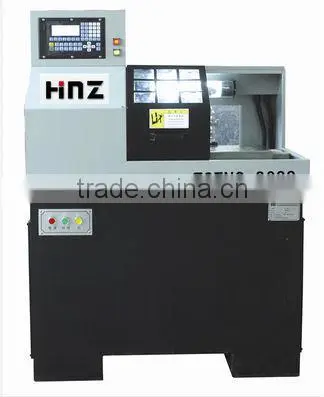

High Precision NC0620 Servo CNC Lathes

US$ 8,000 - 8,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

HNZ

Model Number:

NC0620

Contact Supplier Request Quote Chat Now

Taian Haina Spindle Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HNZ

Model Number NC0620

Specifications

Cutting speed:1~ 4000 mm/min
Holders specifications 12
Controlable tool number:8
Rated Voltage:Three phase AC 380V
50 Hz

Product Description

Item	Specification	Parameter
1	Controlled and linkage axis numbers	2 axes (X, Z axis)
2	Maximum length of processing parts	120mm
3	Minimum setting unit	0. 001mm
4	Smallest movement unit (pulse equivalent)	X axis:0.0005mm Z axis:0. 001mm
5	Max Programming size	+9999.999 mm
6	Cutting speed	1~ 4000 mm/min
7	Tool changer placing mode	Row
8	Holders specifications	12
9	Controlable tool number	8
10	Rated Voltage	Three phase AC 380V
11	Rated Frequency	50 Hz
12	Maximum input power	3 KW
13	X axis Maximum travel	110 mm (Volume diameter 220mm )
14	Z axis Maximum travel	190mm
15	Maximum diameter of processing the bar	20mm
16	Servo motor (maximum no load speed)	10000 mm/min(X,Z axis)
17	Spindle motor power	2.2KW
18	Spindle speed range	50~4000(RPM)
19	Input compressed air pressure	0.4~0.6MPa
20	Control System	Taiwan SYNTEC
21	Motor	Panasonic servo motor(0.4KW)
22	Screw	X axis1404×294mm, Z axis 1604×360mm
23	Guide rail	Taiwan HIWIN Linear Guides
23	Inverter	INVT
24	Encoder	REP
25	Machine Net Weight(kg)	About 1000

Characteristic:

1 nvenient operation, high precision machining

2 the operating system simple , reliable performance, and the system can be upgrade and optimization in accordance with customer specific circumstances

3 Encoder control speed

4 threaded processing function and can achieve a clamping multiple parts of processing which can achieve linear, circular arc,taper thread, complex parts processing.

Application:aerospace,communications,refrigeration,home appliances,electronic,optical,electronic,watches and other industries,the shape of complex single-piece and shaft parts of the mass production.
