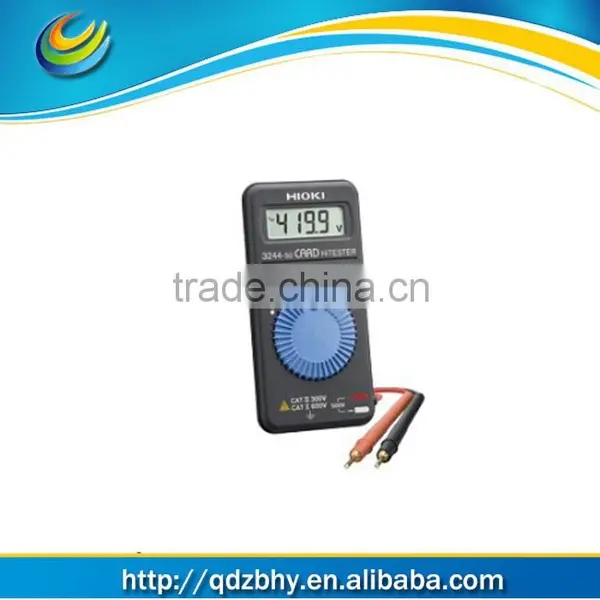

Help CenterHioki 3244-60 Card HiTester Digital Multimeter Auto-ranging Power Saving
Related Products
- Better contact test leads with tip pin length 15mm and gold-plated
- Only 9.5 mm(0.37 in) thick and 60 g(2.1 oz) in weight
- Full auto-ranging function and automatic power saving function
- Overload protection to 500 V at resistance or continuity functions
- DC Voltage 419.9 mV to 500 V, 5 ranges, Basic accuracy: +/-0.7 % rdg. +/-4 dgt.
Regarding DMM Accuracy
Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference.
Please refer to the individual catalogs for detailed accuracy information.
Basic specifications (Accuracy guaranteed for 1 year)
DC Voltage |
419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt. |
AC Voltage 50 to 500 Hz |
4.199 V to 500 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (Average rectified) |
Resistance |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. |
Continuity Buzzer |
Detection level 50 Ω ±40 Ω, Diode check: Not available |
Auto power save |
Available (cancel selectable) |
Display |
Digital LCD, max. 4199 digits |
Sampling rate |
2.5 times/sec |
Power supply |
Coin type lithium battery (CR2032) × 1, Continuous use: 150 hours |
Dimensions, mass |
55 mm (2.17 in)W × 109 mm (4.29 in)H × 9.5 mm (0.37 in)D, 60 g (2.1 oz) |
Accessories |
Instruction Manual×1, Carrying case×1, Coin type litium battery(CR2032)× 1 (for trial purposes only), Sleeves (Red/ Black each 1) |
