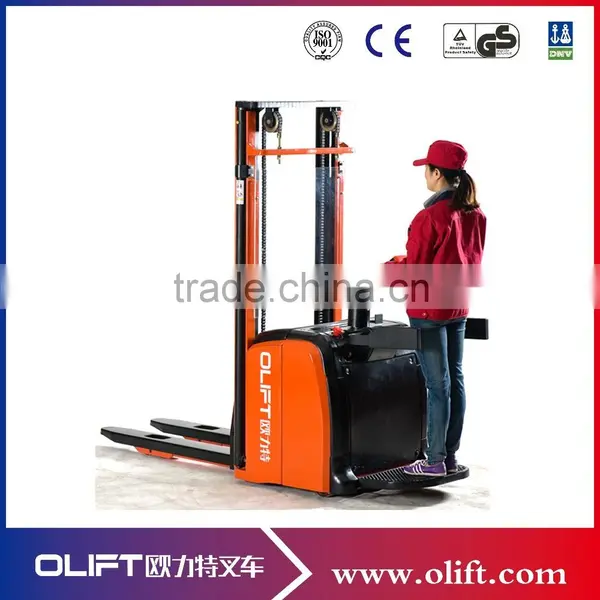

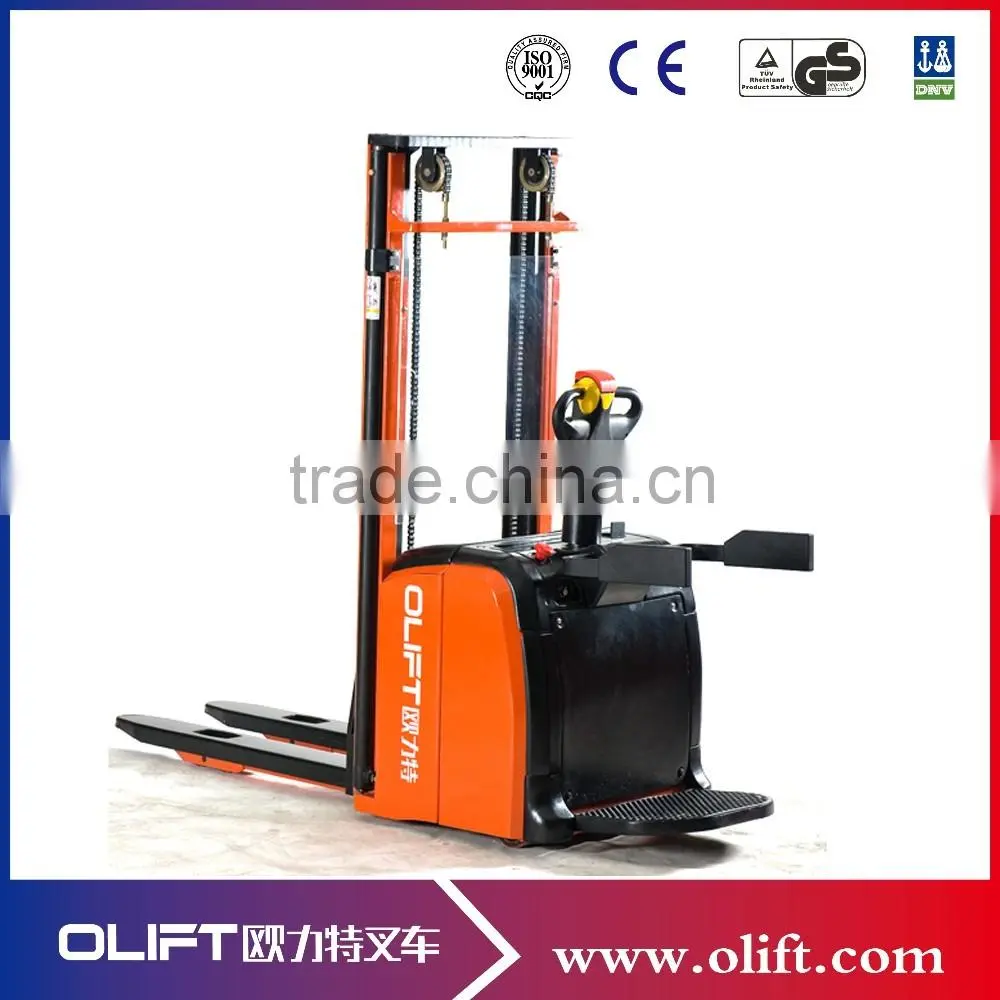

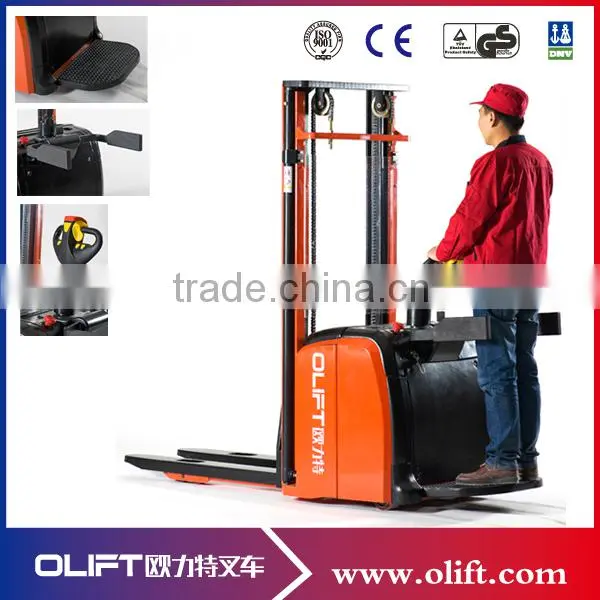

Help CenterChina Professional Cheaper Manufacture Electric Powered Stacker TA1525 With CE
Related Products
-
1.5ton 3.5m Cheap High Quality Electric StackerUS$ 3,000 - 4,000MOQ: 1 Set -
Best Price 1.6 T 1.8T 2T 2.5T 3T Electric Forklift Trucks for SaleUS$ 12,000 - 18,000MOQ: 1 Set
-
1ton 2ton CE Hydraulic Forklift Hand Pallet StackerUS$ 200 - 400MOQ: 1 Set
-
2016 China Supplier Cheap Manual Stacker 3T Semi Electric Pallet StackerUS$ 1,000 - 2,500MOQ: 1 Yard
-
Semi-electric Stacker With CE and SGS CertificateUS$ 500 - 1,000MOQ: 1 Piece
Olift Equipment Co.,Ltd. provides wide selection of products such as forklift trucks, pallet trucks and stackers, scissor lifts, moving tools, platform lifting and more.
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.

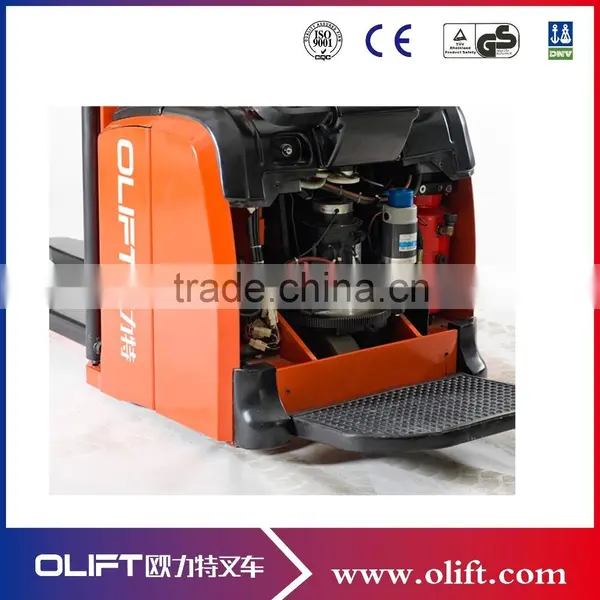

1. Tainwan Winner hydraulic pump staion for power lifting.
2. German Kupp forklift mast for good durability.
3. Metalrota driving sytem, stable in performance.
4. Colson training wheel from America.
5. American Curtis electric control system for programmable operation.

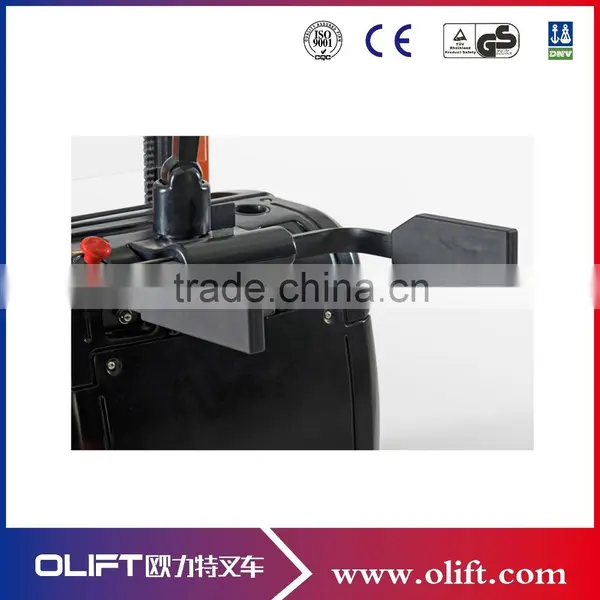

6. German Rema operating handle.
7. Imported high-capacity traction barrery for long service life( two times longer than ordinary ones.)
8. Equip intelligence charger with floating charge and over charge protection to effectively prolong the service life of battery.
| Model No. | kg | TA12/TA15 | TA12/TA15 | TA12/TA15 | TA12/TA15 | TA12/TA15 |
| Capacity | mm | 1200/1500 | 1200/1500 | 1200/1500 | 1200/1500 | 1200/1500 |
| Lifting height | mm | 2500 | 2900 | 3100 | 3300 | 3500 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 |
| Max.machine height | mm | 2930 | 3330 | 3530 | 3730 | 3930 |
| Fork Size | mm | 1150*160*56 | 1150*160*56 | 1150*160*56 | 1150*160*56 | 1150*160*56 |
| Fork outside width | mm | 560/680 | 560/680 | 560/680 | 560/680 | 560/680 |
| Min turning radius | mm | 1600 | 1600 | 1600 | 1600 | 1600 |
| Minimum Stacking Aisle | mm | >=2500 | >=2500 | >=2500 | >=2500 | >=2500 |
| Max speed without load | km/h | 4.5-5 | 4.5-5 | 4.5-5 | 4.5-5 | 4.5-5 |
| Max speed with load | km/h | 3.8-4.2 | 3.8-4.2 | 3.8-4.2 | 3.8-4.2 | 3.8-4.2 |
| Max Travel Grade | % | 5 | 5 | 5 | 5 | 5 |
| Driving motor | V/kw | 17/1.5AC | 17/1.5AC | 17/1.5AC | 17/1.5AC | 17/1.5AC |
| Lifting motor | V/kw | 24/2.0DC | 24/2.0DC | 24/2.0DC | 24/2.0DC | 24/2.0DC |
| Turning Motor | V/kw | 24-0.15DC | 24-0.15DC | 24-0.15DC | 24-0.15DC | 24-0.15DC |
| Battery | V/Ah | 24/240(205kg) | 24/240(205kg) | 24/240(205kg) | 24/240(205kg) | 24/240(205kg) |
| Chargers | V/A | 24/25-30A | 24/25-30A | 24/25-30A | 24/25-30A | 24/25-30A |
| Overall length | mm | 2040 | 2040 | 2040 | 2040 | 2040 |
| Overall width | mm | 850 | 850 | 850 | 850 | 850 |
| Overall height | mm | 1750 | 1950 | 2050 | 2150 | 2250 |
| Net Weight(without battery) | kg | 870 | 890 | 900 | 910 | 920 |
1.Our company has passed ISO9001 and our products has passed CE andSGS.
2.We offer technical supporting all year round.If you want to get more details,please visit or website:
1.How can customer repair the electric stacker.
One of the great advantage of electric stacker is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
2.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
3.How long is the quality guarantee of the electric forklift?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
4.How can we charge the battery?
It is equipped with a battery charger.You can connect the battery to the charger and connect the charger to the AC power.
