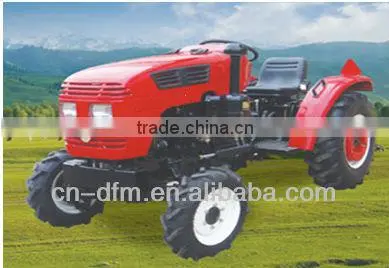

304D Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor)

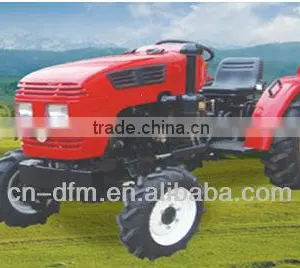

304D Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor) thumbnail-1
304D Tractor, Farming Tractor, Tractors Price (20HP 4WD Tractor) photo-1
US$ 5,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 30HP
Certificate EEC
Brand Name Dongfeng
Model Number 304D
Place of Origin China
After-sales Service Provided Overseas service center available

Specifications

1, 20~50HP tractor EPA 4 approved
2, 16~50HP tractor EEC approved offer COC report
3, All OECD approved

304A tractor, 30hp 4wd tractor
-3 cylinder diesel engine
-6+2 Gearshift
-Single or dual stage clutch



Tractor
Parameters

Model

DF-304D

Drive Type

4WD

Overall Dimensions
L*W*H(mm):

2630x1280x1235

Wheel Track (mm)

Front

1140

Rear

980

Wheel Base(mm)

1645

Ground Clearance (mm)

240

Rated Traction Force(N)

4000

Construction Mass(kg)

1160

Min.Turning Radius(m)

1.95

Theoretical Speed
(Without creeper)( km/h)

Forward

1.45,2.21,3.46,4.78,
6.7,10.2,16,22.1

Reverse

1.9,9.2











Engine
Specifications

Model

TY2102

Type

2-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

22.1/30

Rated Speed (rpm)

2400

Bore*Stroke(mm)

102*105

Total Displacement(L)



Drive
System

Clutch

9*single Stage

Gear Box

(4+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmission

Spur Gear , External Gearing

Travelling
Mechanism

Tyre

Front

5.00-12

Rear

7.50-16/ 9.5-16

Steering Gear

Full Hydraulic Steering

Brake

Shoe type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

4200

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

720/540&1000

Spline Size

6- 35Rectangular Spline
