Specification:
1. 100% raw material
2. 14 years experience
3. ISO 9001
4. OEM & ODM
5. Customized products are acceptable

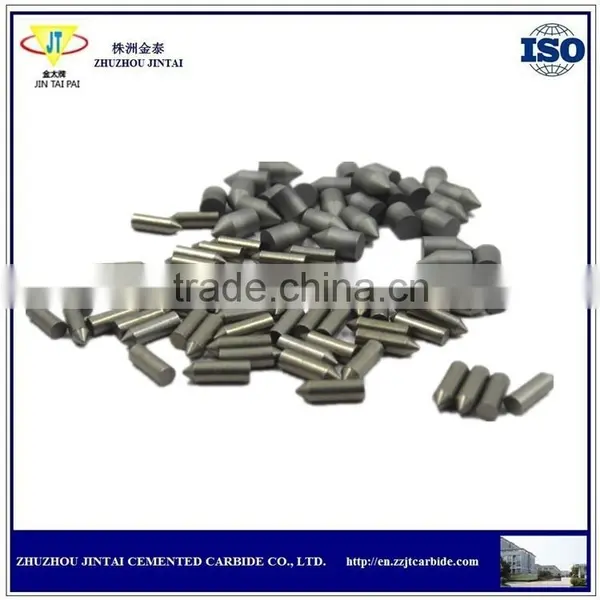

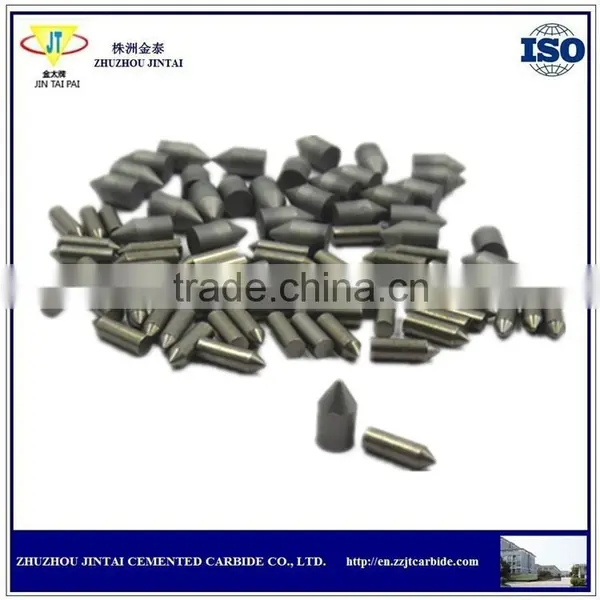

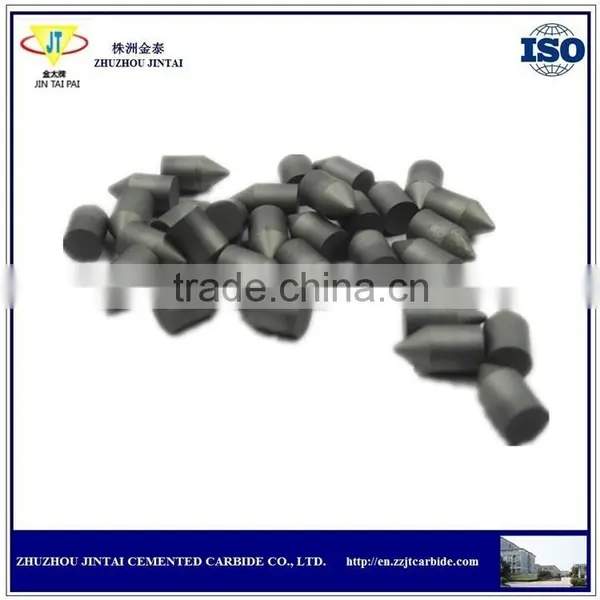

Display of Tungsten Carbide Tops
Tungsten Carbide Tops are of wide application, especially for marble and emergency hammers

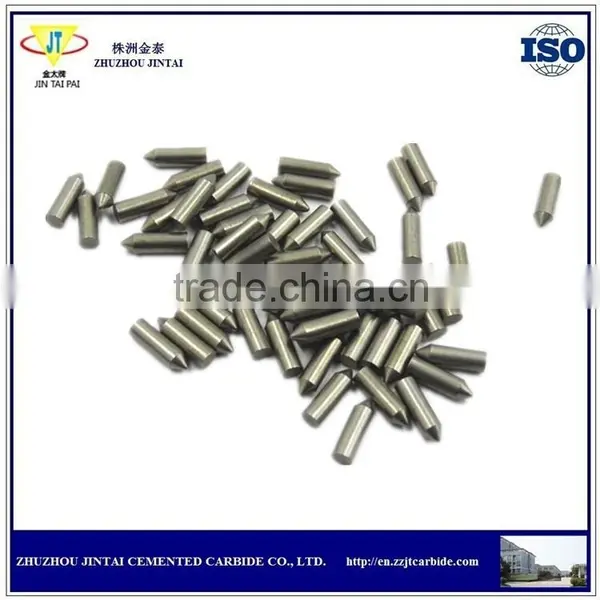

Tungsten Carbide Tops with Different Sizes
Customized Tungsten Carbide Tops are available!
Tungsten Carbide Tops with Common Grades
Grade |
Physical and Mechanical Properties |
Recommended Applications |
||
Density g/cm3 |
Hardness No Less Than HRA(HV) |
TRS No Less Than (Mpa) |
||
YG6 |
14.95 |
89.5 |
2580 |
Universal grades widely used in machining tools for cast iron, nonferrous metal and their alloys and nonmetal ma-terials, wear parts, and tools for machining other alloys. |
YG8 |
14.74 |
89 |
2710 |
|
YG6X |
14.93 |
91 |
2480 |
Suitable for the semi-of hard cast iron, nonferrous metals and their alloys, and also suitable for the semi-finishing and of common cast iron and high manganesesteelwork-pieces and for other tools. |
YG6A |
14.89 |
91.5 |
2350 |
|
YG8C |
14.69 |
87.5 |
2850 |
Mainly used for rock drilling, auger tips and well drilling tools and at the same time for drilling stone wallls, cementin construction and installation work, and for machining stone materials. |
YG11C |
14.32 |
86.5 |
2940 |
|
YL10.2 |
14.45 |
91.5 |
2880 |
Mainly used for manufacturing strips and disc cutters and also for other tools. |
YM80 |
14.76 |
90.5 |
2590 |
Mainly for manufacturing strips and also for other tools. |
YS2T |
14.45 |
91.5 |
2380 |
Mainly used for disc cutters and also for other tools. |
YS8 |
14.05 |
92.5 |
2170 |
Suitable for the rough and of stainless steel, finishing of high strenghth steel, finishing and semi-finishing of hardened steel, and the machining of iron based heat resistant alloys and glass articles. |
Any Grade will be acceptable as your requirements!
Customer NOTICE
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Available tolerance
4. Order quantity for each type
5. Blanks or finished products
6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
Our Products Ranges
Tungsten Carbide Rods
Tungsten Carbide Balls
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Cutters
Tungsten Carbide Rollers
Tungsten Carbide Buttons
Tungsten Carbide Tire Studs
Tungsten Carbide Disc Cutters
Tungsten Carbide Drawing Dies
Tungsten Carbide Coal Drilling Bits
Tungsten Carbide Customized Molds
Tungsten Carbide Road-digging Teeth
