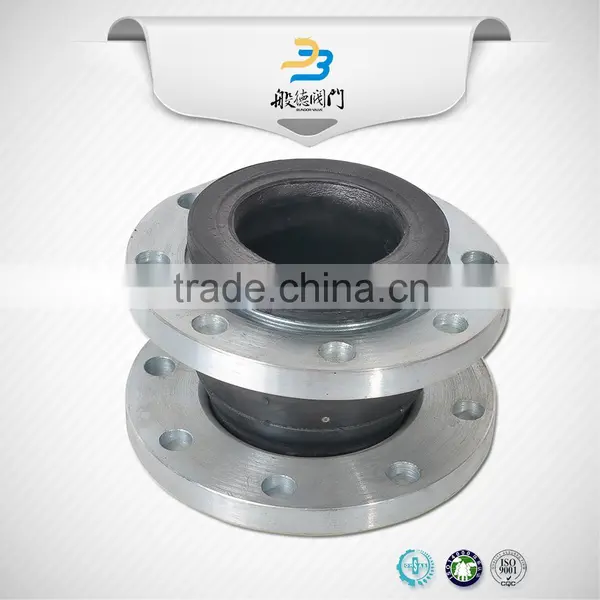

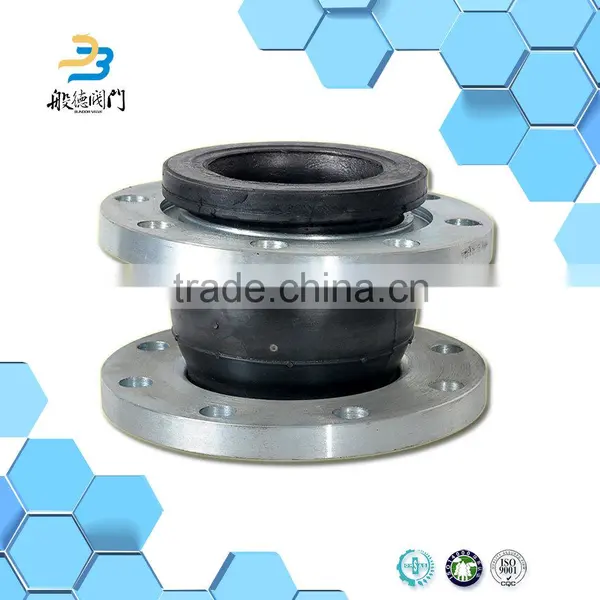

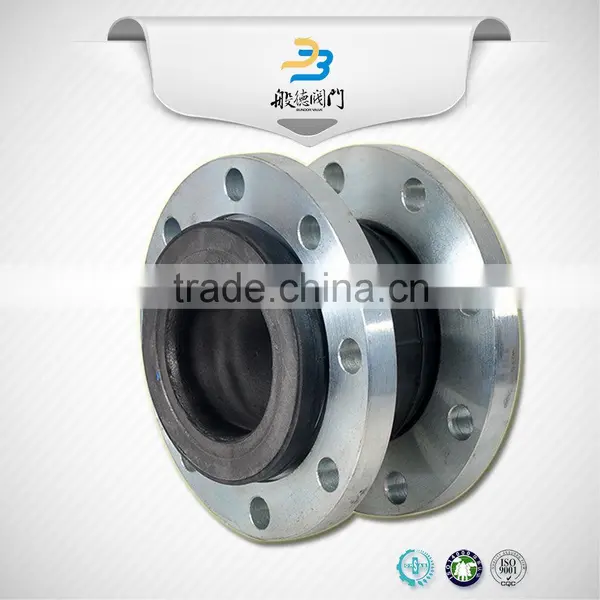

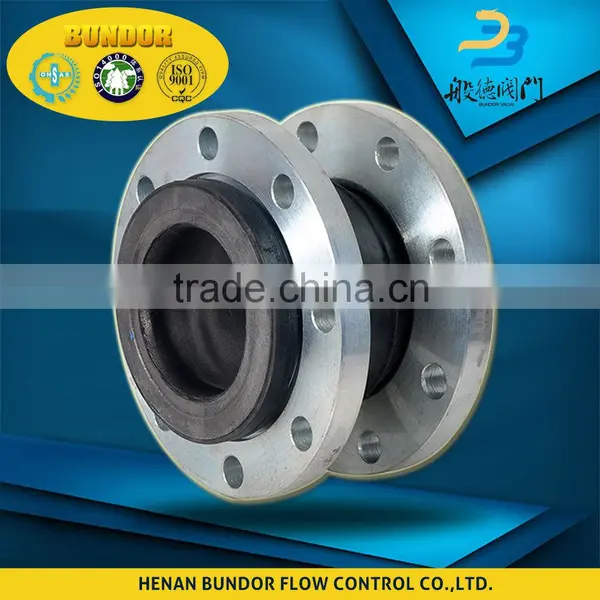

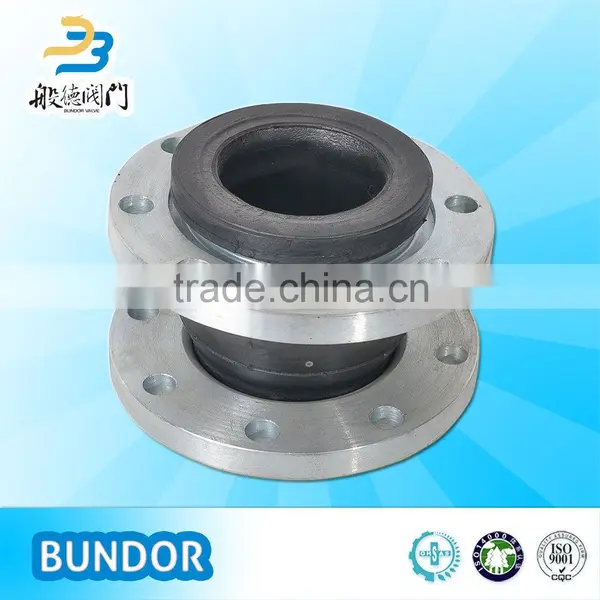

Unaflex Rubber Expansion Joint Design
|
Name | Unaflex Rubber Expansion Joint Design |
| Diameter | DN25-DN1200 | |
| Medium | Cold and hot water | |
| Temperature | -15~115 degree |
|
| Pressure | PN1.0-2.5Mpa | |
| Applicable Temperature | -15 degree~+115 degree | |
| Applicable Media | Air,Compressedair,water,sea water,hot water,oil acid and so on. |
Product Description
| 1 | Body |
| 2 | Liner |
| 3 | Frame |
| 4 | Flange |
| DN Norminal diameter(mm) | L length | b | n*d0 | D1 | Axial displacement | Horizontal displacement | Deflexion angle | weight | ||
| DN | Inch | mm | mm | mm | mm | Extension (mm) | Compression (mm) | mm | α1+α2 | kg |
| 32 | 1.25 | 95 | 16 | 4*18 | 100 | 6 | 9 | 9 | 15 degree | 3.4 |
| 40 | 1.5 | 95 | 18 | 4*18 | 110 | 6 | 10 | 9 | 15 degree | 4 |
| 50 | 2 | 105 | 18 | 4*18 | 125 | 7 | 10 | 10 | 15 degree | 5.5 |
| 65 | 2.5 | 115 | 20 | 4*18 | 145 | 7 | 13 | 11 | 15 degree | 6.7 |
| 80 | 3 | 135 | 20 | 8*18 | 160 | 8 | 15 | 12 | 15 degree | 7.7 |
| 100 | 4 | 150 | 22 | 8*18 | 180 | 10 | 19 | 13 | 15 degree | 9.4 |
| 125 | 5 | 165 | 24 | 8*18 | 210 | 12 | 19 | 13 | 15 degree | 12.7 |
| 150 | 6 | 180 | 24 | 8*22 | 240 | 12 | 20 | 14 | 15 degree | 15.8 |
| 200 | 8 | 210 | 24 | 12*22 | 295 | 16 | 25 | 22 | 15 degree | 20 |
| 250 | 10 | 230 | 28 | 12*26 | 355 | 16 | 25 | 22 | 15 degree | 29.22 |
| 300 | 12 | 245 | 28 | 12*26 | 410 | 16 | 25 | 22 | 15 degree | 32.8 |
| 350 | 14 | 255 | 28 | 16*26 | 470 | 16 | 25 | 22 | 15 degree | 41.3 |
| 400 | 16 | 255 | 30 | 16*27 | 515 | 16 | 25 | 22 | 15 degree | 55.6 |
| 500 | 20 | 255 | 32 | 20*27 | 620 | 16 | 25 | 22 | 15 degree | 69.4 |
