Automatic seam machine welders for pvc(press rings machine)
Ⅰ,Field of application
LC-15 smart type: Suitable for advertising industry, inkjet fabric, inkjet fabric, light box cloth, Knife cloth, mesh cloth PVC, PE hot melt plastic membranes welding process.
Ⅱ,Main technical details
Rated voltage: AC110-240V Frequency: 50-60Hz
Power: 1000-3000W Temperature scope: 0-500°C
Speed scope: 1-15m/min Sepcification: 41*25*20cm
Weight: 15-20Kg Splicing width: 2-5cm
Ⅲ,Characterics
No glue splicing, temperature adjustable speed, with a feedback temperature sensor, real-time monitoring and control temperature (usually the market adjusted voltage, adjust the wind speed, temperature is not constant). No matter how long mosaic images,welding mosaic result will not change. With seting up a air flowing switch,it welds thick pvc easyily.

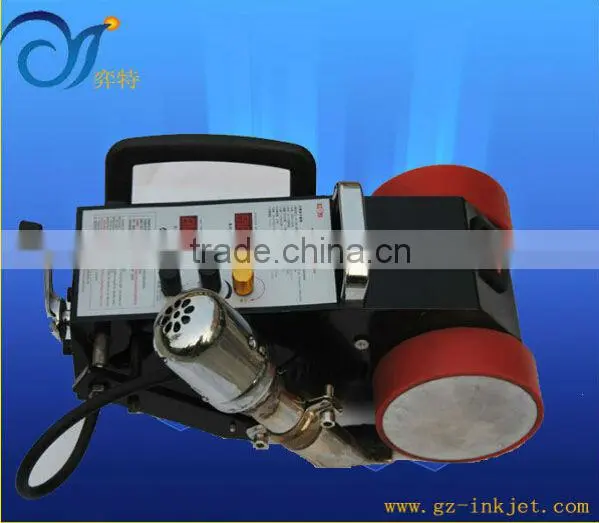

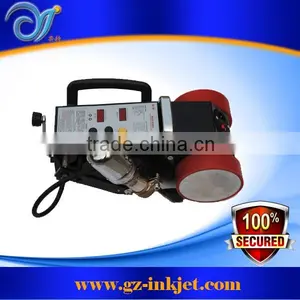

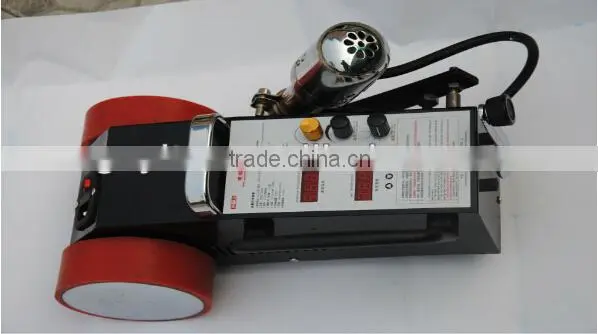

Picture from different sides:
Errors and methods to solve
Errors |
Methods to solve |
The temperature screen cant’t display or garbled |
Test if the temperature probe have link with iron,please keep it in the air between the spout;test if the probe is damaged,test the sensor wire. |
Don’t heat |
Test if the heater is damaged,change heater |
No power |
Test if the link is fasten |
Damage the cloth |
Adjust the spout to make it flat and leave its right-edge 1mm with the ground. |
Speed out of control |
Change the speed button(the black button) |
Couldn’t weld very fasten |
Speed up the temperature or slow down the speed,adjust the level between the spout and ground |
Package details :By carton
Why purchased form us ?
1.Any inquiries can be answered on time
2.Provide you the best quality product ,fast delivery
3.Provide you the whole year warranty
Thanks for your attentions!For more details ,feel free to contact us !
