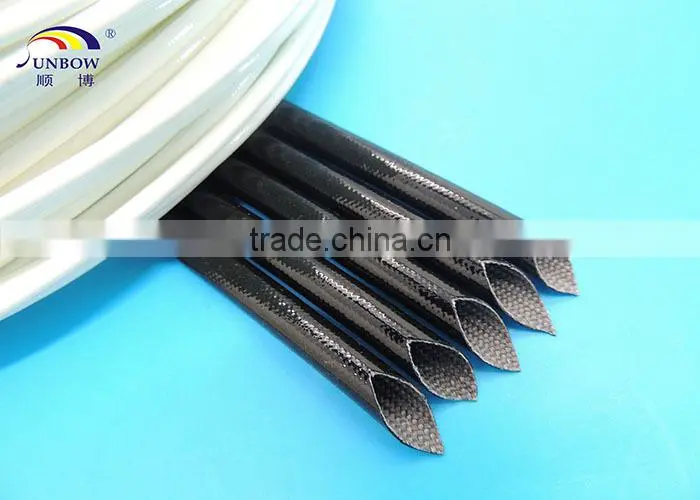

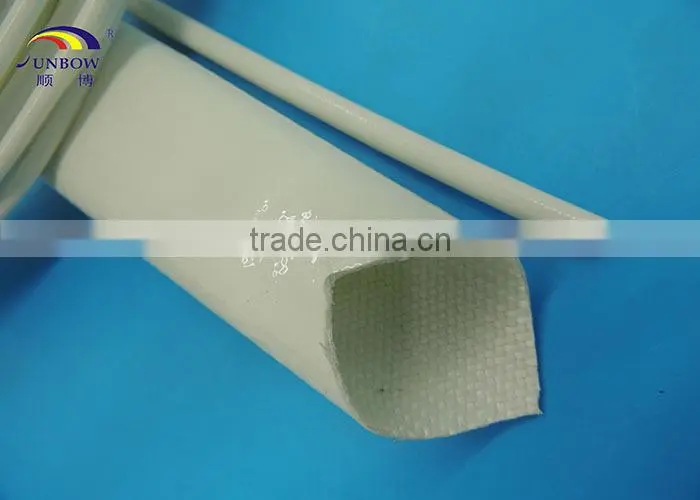

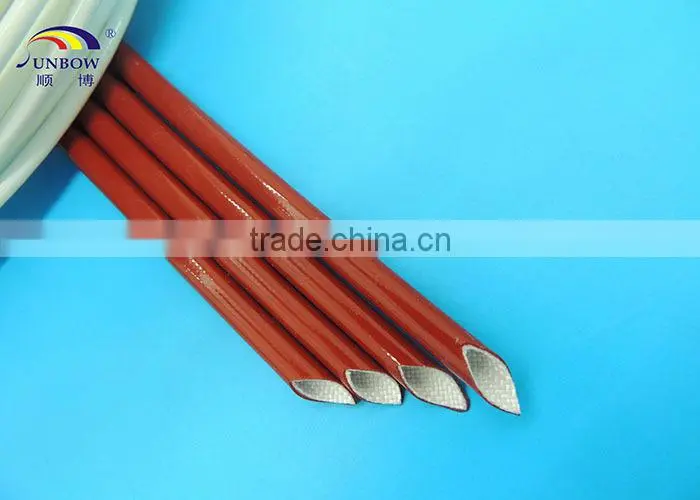

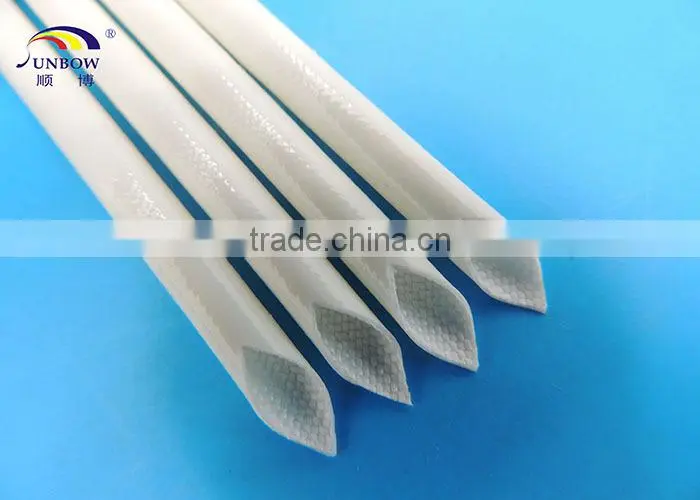

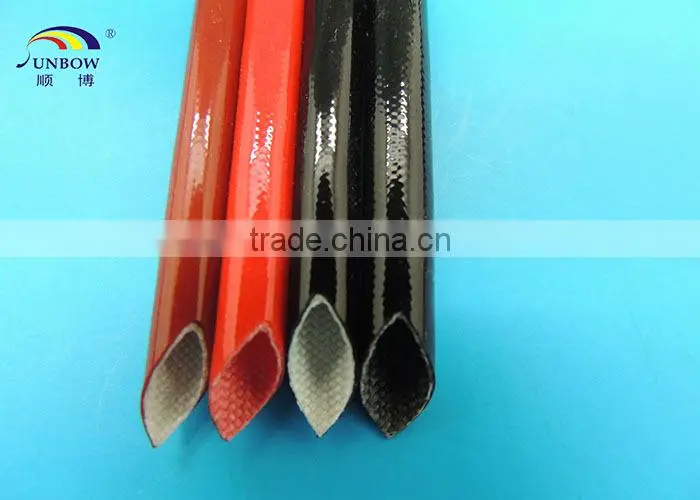

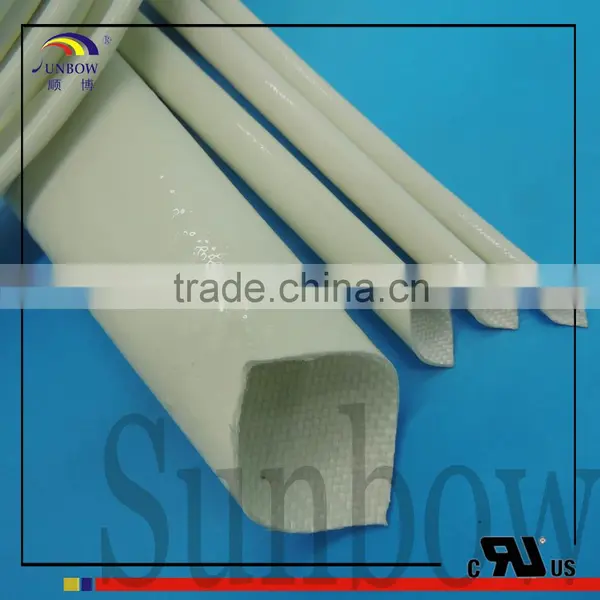

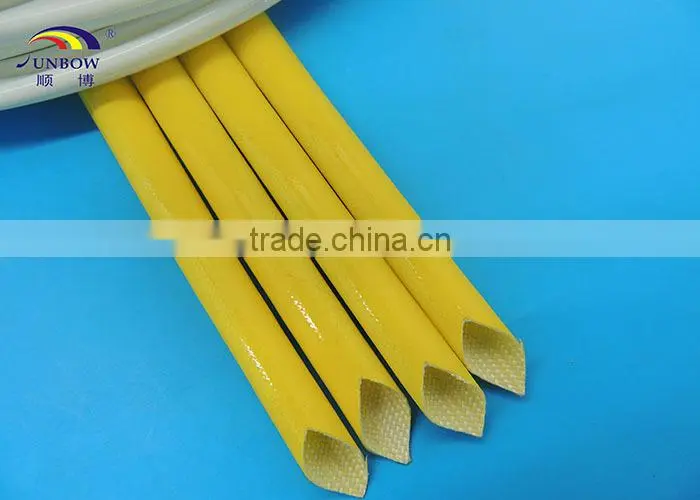

UL Listed VW-1 Flame Retardant Coated Silicone Glassfiber Electrical Sleeving
1. Model
SB-SGS-40
2. Working Temperature
200C
3. Structure
UL Listed VW-1 Flame Retardant Coated Silicone Glassfiber Electrical Sleeving is braided with non-alkali fiberglass and then coated by silicone resin processed in high temperature.
4. Characteristics
1) good dielectric strength, flexibility and resistance property
2) breakdown voltage: 4.0kv
3) thermal endurance: no crack (245±5°c 6hrs aging)
4) fire resistance: VW-1 UL1441
5) CUL, RoHS, REACH, SGS, MSDS, CQC
5. Dimension
INSIDE DIAMETER |
WALL THICKNESS MINIMUM (mm) |
STANDARD PACKAGE (m/roll) |
|
NOMINAL(mm) |
TOLERANCE(mm) |
||
φ0.5 |
+0.2, -0.1 |
≥0.37 |
200 |
φ1.0 |
+0.2, -0.1 |
≥0.37 |
200 |
φ1.5 |
+0.2, -0.1 |
≥0.37 |
200 |
φ2.0 |
+0.2, -0.1 |
≥0.37 |
200 |
φ2.5 |
+0.3, -0.1 |
≥0.42 |
200 |
φ3.0 |
+0.3, -0.1 |
≥0.42 |
200 |
φ4.0 |
+0.3, -0.1 |
≥0.42 |
200 |
φ4.5 |
+0.3, -0.1 |
≥0.51 |
100 |
φ5.0 |
+0.3, -0.1 |
≥0.51 |
100 |
φ6.0 |
+0.3, -0.1 |
≥0.51 |
100 |
φ7.0 |
+0.3, -0.1 |
≥0.56 |
100 |
φ8.0 |
+0.3, -0.1 |
≥0.56 |
100 |
φ9.0 |
+0.3, -0.1 |
≥0.66 |
100 |
φ10.0 |
+0.3, -0.1 |
≥0.66 |
100 |
φ12.0 |
+1.0, -1.0 |
≥0.66 |
50 |
φ14.0 |
+1.0, -1.0 |
≥0.66 |
50 |
φ16.0 |
+1.0, -1.0 |
≥0.66 |
50 |
φ18.0 |
+1.0, -1.0 |
≥0.66 |
50 |
φ20.0 |
+1.0, -1.0 |
≥0.76 |
25 |
φ25.0 |
+1.0, -1.0 |
≥0.76 |
25 |
φ30.0 |
+1.0, -1.0 |
≥0.76 |
25 |
6. Application
UL Listed VW-1 Flame Retardant Coated Silicone Glassfiber Electrical Sleeving has good dielectric strength, flexibility and resistance property. It is widely used in insulated, uninsulated and partially insulated conductors, busbars, leads and electrical components.
