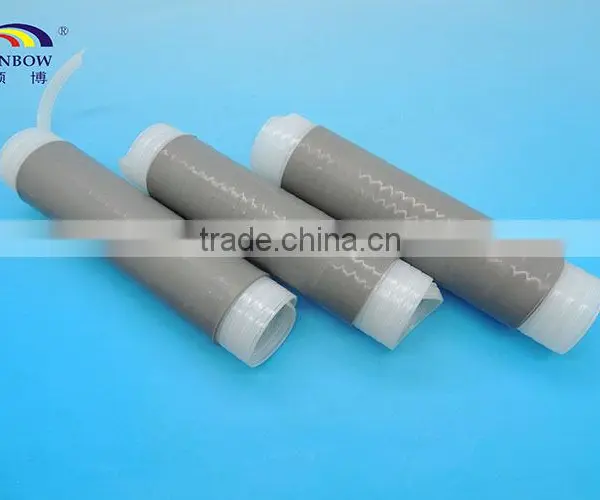

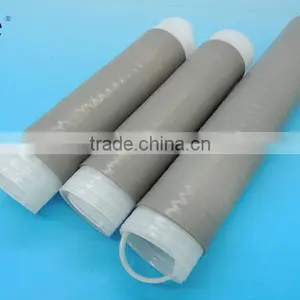

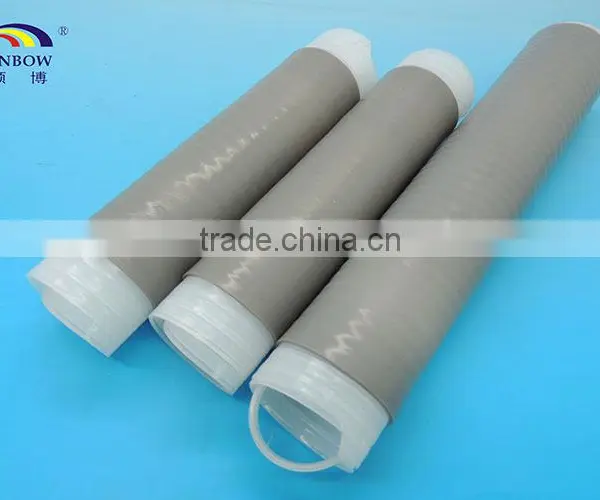

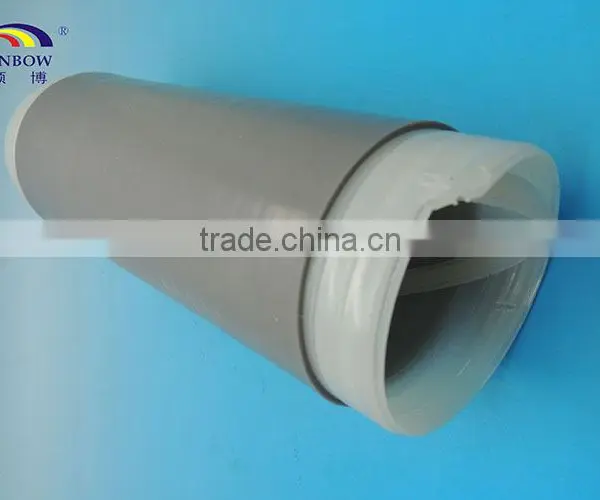

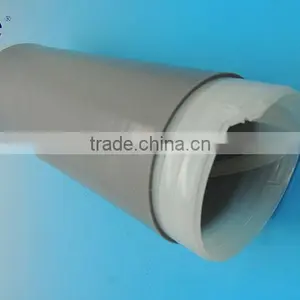

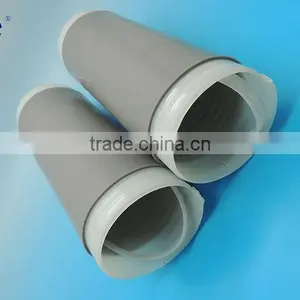

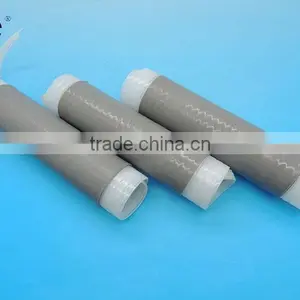

pipe end protection caps cold shrink end caps/pipe end caps
Cold shrink end caps are made of EPDM rubber, can meet a variety of
configuration requirements. Offering sealing protection over multi-core cable ends. Used to seal cable during installation or storage, protecting cable ends.
Simple and fast installation, no tools required, no training required for installation.
Accommodating size ranges from 13mm – 70mm.
Sealing tight, high rebound even after prolonged years of aging and exposure.
No mastic or tape required. No torches or heat required.
Resists fungus, acids, alkali and ozone, Water-resistance.
Easily removed.
ID As Supplied (Min) /mm |
ID After Recovered (Max) /mm |
Wall Thickness after Recovered (±0.1mm) |
Application Range (mm) |
Length(mm) |
Ø20 |
12 |
2.5 |
Ø13- Ø16 |
70±5 |
Ø28 |
16 |
2.5 |
Ø18- Ø24 |
70±5 |
Ø47 |
23 |
2.6 |
Ø25- Ø38 |
70±5 |
Ø80 |
46 |
2.6 |
Ø48- Ø70 |
70±5 |
Property |
Test Method |
Standard Value |
300% Modulus |
ASTM D-412-75 |
4.2MPa |
Ultimate Tensile |
ASTM D-412-75 |
10.05MPa |
Ultimate Elongation |
ASTM D-412-75 |
600% |
Tear Strength |
ASTM D-624C-73 |
28.3KN/m |
Fungus Resistance |
ASTM G-21 |
28 days exposure No Growth |
Moisture Absorption 7 days@ 90ºC in H2O |
|
3.0% wt. Gain |
All our products are packaged in cardboard boxes.
You can choose the best way you like to deliver the goods, such as DHL, FEDEX, UPS...
1) 2~7 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
Shenzhen SUNBOW Insulation Materials MFG. Co., Ltd is one of the leading insulation sleeving manufacturers in China. It was established in 2003. In 2008, due to the business expansion, it is relocated in Heshuikou SUNBOW industrial park. In 2009, we succeeded in getting ISO9001:2008 quality management system certification. We specialize in fiberglass sleevings, PE heat shrink tubes, PVC heat shrink tubes, PTFE heat shrink tubes and silicone rubber tubes. Our products have passed UL, CSA, RoHS, REACH certifications. Our business partners can be found all over the world. Some famous partners are:
SEB, Philips, Zoppas, Toshiba, Sanyo, SAMSUNG, Midea, HOT, IKEA, Breville, Panasonic, Tescon, Tiger, Emerson, Conair....
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) Factory direct sales, quality assurance and competitive price
2) UL, ROHS, REACH certificated
3) Philips, Toshiba, Media etc. well-known partners
4) An extensive line of high quality products (silicone fiberglass sleeving, various heat shrink tubes, pvc tube, ptfe tube, FDA compliance silicone rubber tube…)
