Digital Room Thermostat For Underfloor Heating Mats
Negotiable
MOQ: 50 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
E-Top Room Thermostat
Model Number:
HT-CS01
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Color Touch Screen Room Thermostat for HeatingNegotiableMOQ: 50 Units -
Hot Sales Programmable Thermostat For Floor Heating SystemNegotiableMOQ: 50 Units
-
Wall Switch ThermostatNegotiableMOQ: 100 Units
-
Digital Room Thermostat for Floor Heating SystemNegotiableMOQ: 50 Units
-
Programmable Plug ThermostatNegotiableMOQ: 100 Units
Place of Origin
Fujian, China
Brand Name
E-Top Room Thermostat
Model Number
HT-CS01
Type
Floor Heating Parts
Floor Heating Part Type
Floor Heating Thermostats
Specifications
Digital Room Thermostat For Underfloor Heating Mats1. Room Thermostat
2. Heating Room Thermostat
3. CE
Digital Room Thermostat For Underfloor Heating Mats

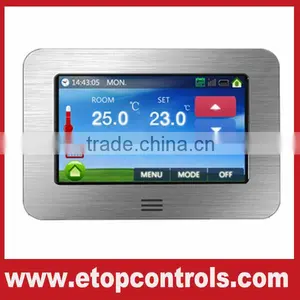

- This Thermostat is a digital Room Thermostat, which is designed for electric floor heating system or water heating system. Using 4.3inch color touch LCD display, the working status can be easily understood. With built-in four languages, you can select the languages you want to display.
- With five modes, the system of this Color Touch Screen Heating Room Thermostat can work according to your desired pre-set temperature conveniently. And the 5+1+1 days programmable function, which is easy-to-program on/off settings per day.
- Simple regulation which let this color touch screen heating thermostat sends On/Off commands to the heating system according to a pre-selected temperature variation. The thermostat control algorithm includes an anticipation function which reduces the discrepancy between the thermostat reading and the temperature at the centre of the room.
- Choose from three (3) sensor setting: Ambient (built-in sensor)- to control the air temperature; Floor - to control the temperature using the floor probe; Ambient and Floor - to control the ambient air, and show floor temperature by using the floor probe.
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
1 |
4.3inch Color Touch Screen Operation |
2 |
Adjustable water heating system and electric heating system |
3 |
Adjustable 3A/16A |
4 |
Clock and Date Display |
5 |
5+1+1 Weekly Programmable |
6 |
OEM Service |
Power Supply |
220V,110V,24V,50/60Hz |
Usage |
Electric hating system(max16A) Water heating system(max3A) |
Load Current |
3A or 16A |
Control Mode |
Programmable mode Manual mode |
Power Consumption |
1.5W |
Set point range |
10~30°C |
Accuracy |
±1°C |
Ambient |
0~50°C |
Housing |
ABS fire-resistant plastic |
Others |
High temp. Protection Temp.offset |
