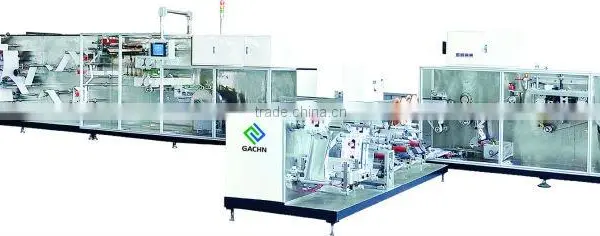

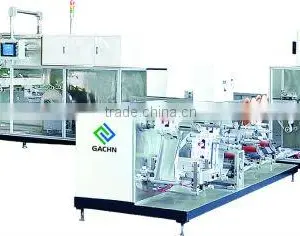

Servo Multi-wet Paper Napkin Production Machine

Name: Servo Multi-wet Paper Napkin Production Machine
Brand: GACHN
SKU: 100696757

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other, paper

Xiamen Gachn Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Other, paper

Packaging Material Paper

Automatic Grade Automatic

Driven Type Electric

Power 40KW

Place of Origin Fujian, China

Brand Name GACHN

Model Number GC-081

Specifications

1) high speed
2) stability
3) high rate of finished products
4) long service life.

A. servo electronic principal axis to achieve the synchronous operation

B. designed with with high precision, stable speed, automatic paper feeding and receiving

C. automatic paper receiving for coating, high-precision automatic quantitative potion spraying to avoid secondary pollution of

the potion

D. automatic correction of materials skew and servo fixed-length cutting

E. With servo electronic principal axis to achieve the synchronous operation, the vulnerable components such as traditional

mechanical shaft gear box

Technical parameters

Power supply	Three-phase 380V 50HZ
Applicable material	A) spunlace non-woven fabrics B) hot-rolled non-woven fabrics
Material specification	40g/m2_80g / m2
Product size(mm)	L (100-220) × W (100-220)
Host speed	A) 1000 pieces/ min for economic speed B) 1500 pieces/ min for maximum speed
Packing machine speed	100 packs/ min for economic speed and 150 packs / min for maximum speed
Base paper diameter	100mm-1200mm
Folding	Z,W,C
Installed power	40KW
Wetting and mixing system	quantitative spray system
Control system	A) Servo motion control system B)10.4-inch color touch screen C)auto-correcting for material skew D)non-woven fabric /packaging film roll changing system
Machine Size (mm)	L (2000) × W (1100) × H (1900)
Tank size (mm )	L (16150) × W (1550) × H (2000)
Weight (kg)	18000
