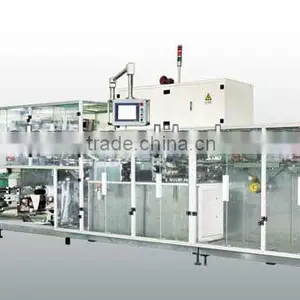

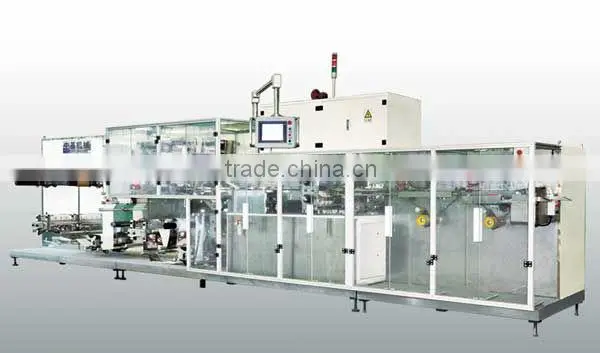

Automatic Wet Tissues Processing and Prodution Machine

Name: Automatic Wet Tissues Processing and Prodution Machine
Brand: GACHN
SKU: 100697015

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other

Xiamen Gachn Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Other

Packaging Material Paper

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 16Kw

Place of Origin Fujian, China

Brand Name GACHN

Model Number GC-082

Weight 7000KG

Dimension(L*W*H) 8150 * 1550 * 2000

Specifications

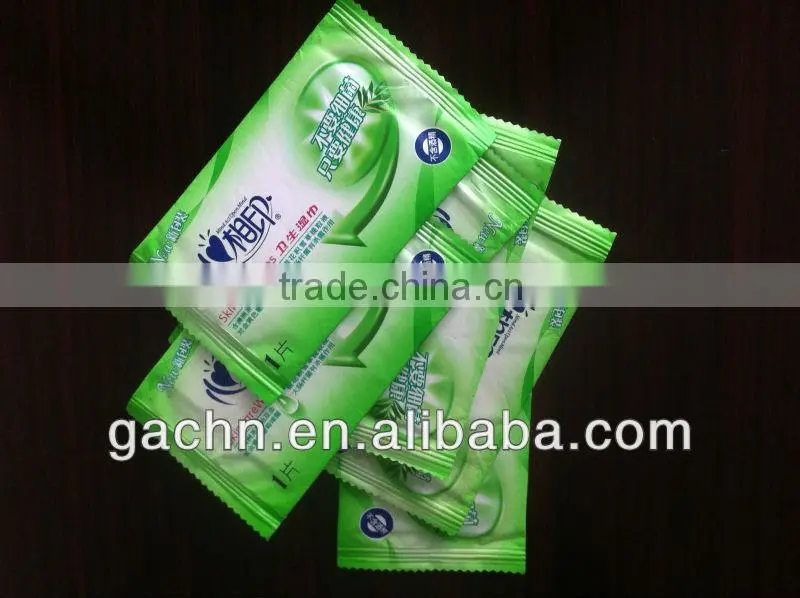

1) single piece wet tissue making and packing
2) stability and automatic
3) prodution speed:300~500 pcs/min

Technical parameters

Power supply	three-phase 380V 50HZ
Applicable material	A) spunlace non-woven fabrics B) hot-rolled non-woven fabrics
Material Specification	40g / M ² ~ 80g / M ²
Product size (unfolded)(mm)	L (150 ~ 220) × W (180 ~ 220)
Production rate	300 pieces/ min for economic 500 pieces / min for maximum speed
Base paper diameter(mm)	100 ~ 1200
Folding method	Z, W, C
Counting method	automatic counting with free variables
Packing specification	5 - 20 pieces / Pack
Power total power	16KW
Wetting and mixing system	quantitative spray system
Control system	A) Servo motion control system B) 10.4-inch color touch screen C) auto-correcting for material skew D) non-woven fabric roll / packaging film changing system
Machine Size (mm)	L (8150) × W (1550) × H (2000)
Tank size (mm)	L (2000) × W (1100) × H (1900)
Weight (kg)	7000
