Help CenterInfrared Quartz Tube
US$ 3 - 80
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Type:
Clear Quartz Pipe
Color:
clear
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Type
Clear Quartz Pipe
Color
clear
Surface Treatment
Polished
Shape
One End Closed Quartz Tube
Specifications

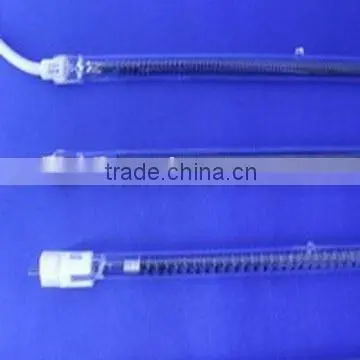

Infrared Quartz TubeDoped with trace elements,the red quartz tube,dark red and pink red available,to prevent UV rays
Infrared Quartz Tube
Infrared quartz tube doped with trace elementshas lustrous apearance,brilliant color,and the same property of heat processing with quartz tube.
Appilication:
It is another good material for far infrared heating,and also for the stage light
Dimensional Tolerance
Range of OD |
WT |
Siding |
Ellipticity |
Camber/1220mm |
Length(mm) |
|
||
8.00±0.15 |
1.0±0.10 |
10% |
1.5% |
2.5mm |
1220 |
|||
9.00±0.15 |
1.0±0.10 |
10% |
1.5% |
2.5mm |
1220 |
|||
10.00±0.15 |
1.0±0.10 |
10% |
1.5% |
2.5mm |
1220 |
|||
11.00±0.15 |
1.0±0.10 |
12% |
1.5% |
2.5mm |
1220 |
|||
12.00±0.15 |
1.0±0.10 |
12% |
1.5% |
2.5mm |
1220 |
|||
13.00±0.15 |
1.0±0.10 |
12% |
1.5% |
2.5mm |
1220 |
|||
|
|
|
|
|
|
|
|
|
Physical Properties
Density 20kg.m-3(×103) |
2.2 |
Coefficient of expansion 25-300 c-1(×10-6) |
0.5 |
Softening point() |
1710 |
Annealning point() |
1230 |
Strain point() |
1140 |
Youngs modulus(pa) |
7.3×105 |
