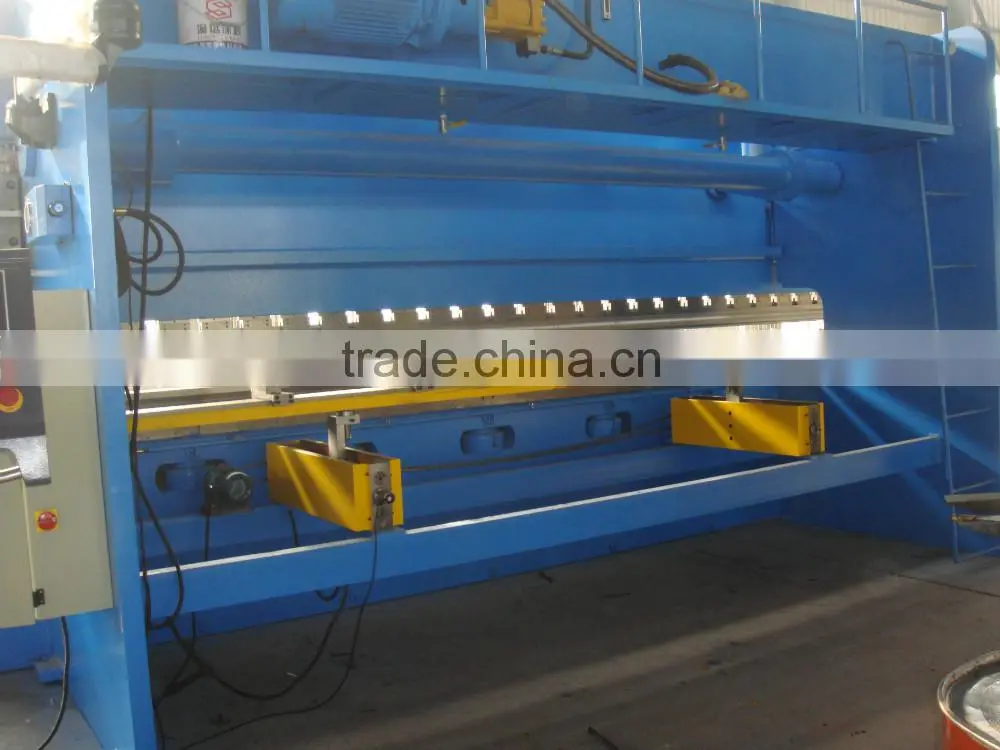

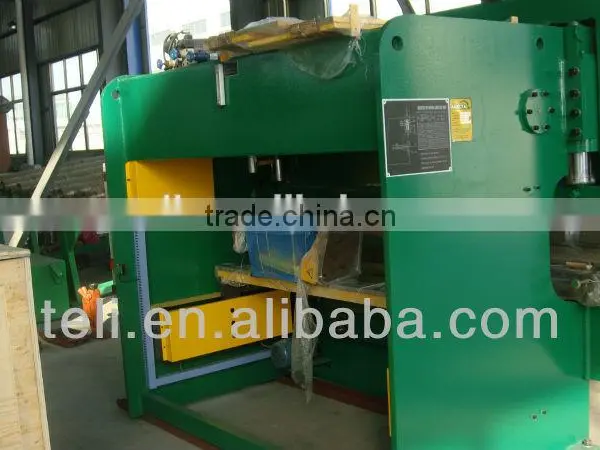

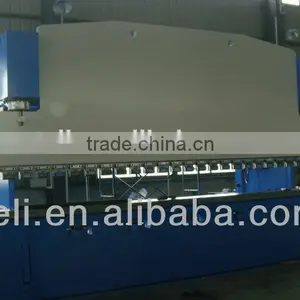

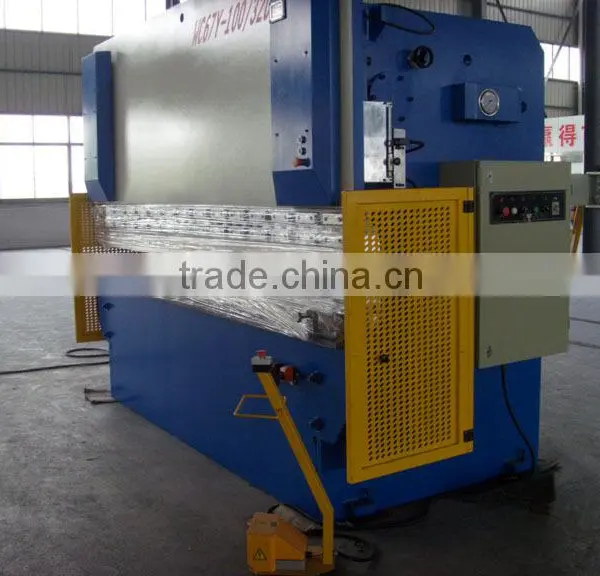

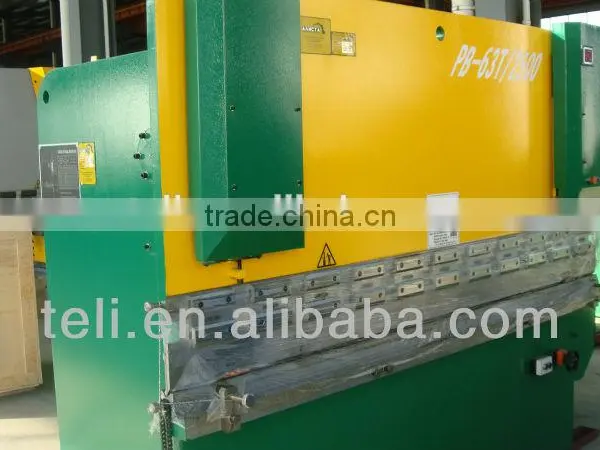

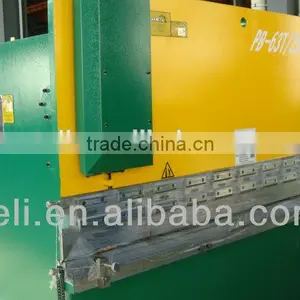

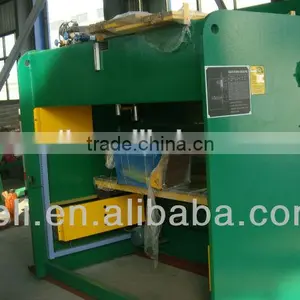

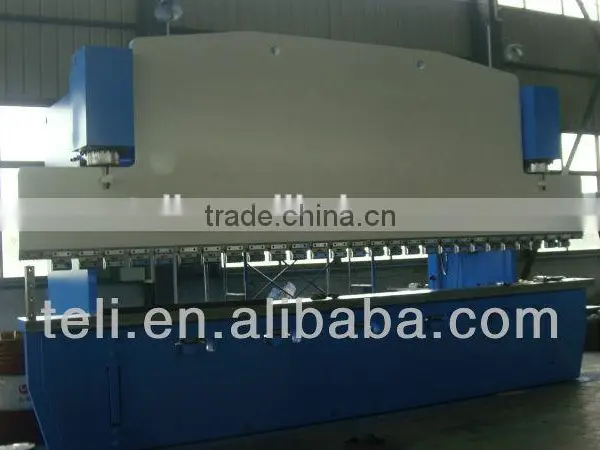

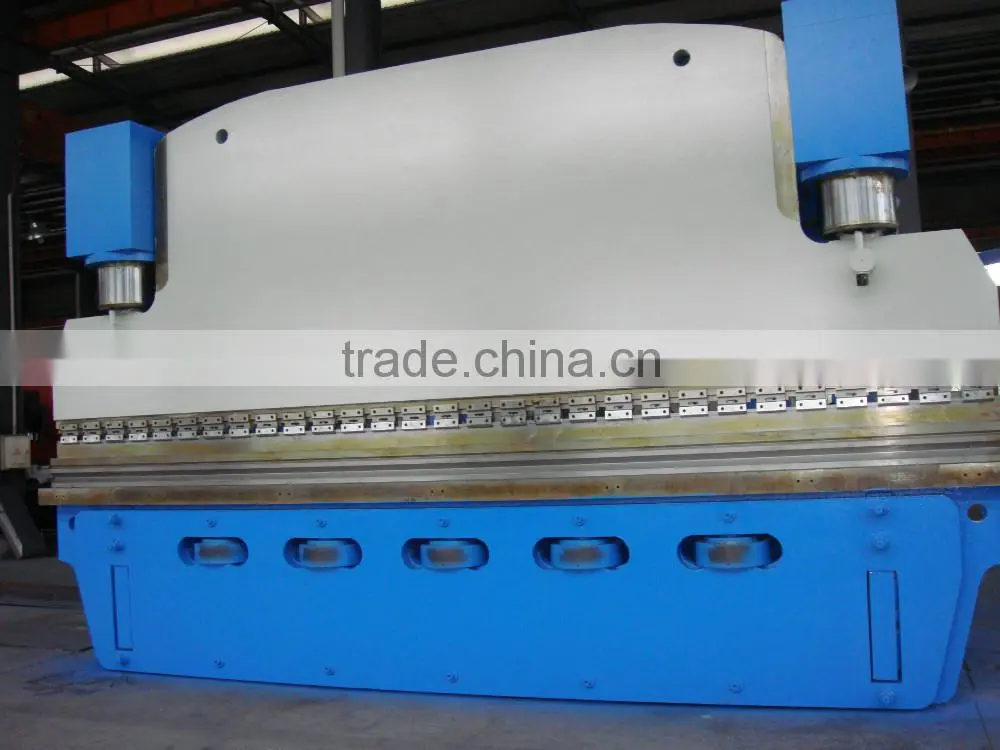

Help CenterNantong Teli China Hydraulic Press Brake Price
Related Products
-
Cnc Press Brake MachineUS$ 10,500 - 20,000MOQ: 1 Piece -
Freno de la Prensa Big Size Press Brake MachineUS$ 85,000 - 120,000MOQ: 1 Piece
-
Nantong Teli Hydraulic Steel Press BrakeUS$ 50,500 - 60,000MOQ: 1 Piece
-
Used Sheet Metal Press BrakeUS$ 50,500 - 60,000MOQ: 1 Piece
-
China Nantong Teli Metal Hydraulic Press BrakeUS$ 50,500 - 60,000MOQ: 1 Piece
hydraulic press brake price
No |
Name |
Data |
Unit |
Remarks |
|
1 |
Nominal pressure |
2500 |
KN |
|
|
2 |
Length of working table |
4100 |
mm |
|
|
3 |
Plate strength |
≤450 |
N/mm2 |
|
|
4 |
The distance of column |
3100 |
mm |
|
|
5 |
Ram stroke |
250 |
mm |
|
|
6 |
Max opening height |
515 |
mm |
|
|
7 |
Depth of throat |
320 |
mm |
|
|
8 |
Ram speed |
Free |
60 |
mm |
|
Running |
8 |
mm |
|
||
Return back |
70 |
mm |
|
||
9 |
Main |
Type |
Y200L2-6 B5 |
|
|
Power |
22 |
KW |
|
||
Speed |
970 |
rpm |
|
||
10 |
Max pressure of system |
26 |
Mpa |
|
|
11 |
Axial pump |
Type |
63MCY14-1B |
|
|
Speed |
63 |
L/min |
|
||
Pressure |
31.5 |
Mpa |
|
||
12 |
Out size |
Length |
4200 |
mm |
|
Width |
2300 |
mm |
|
||
Height |
4200 |
mm |
|
||
13 |
Weight |
19000 |
kg |
|
|
3-1 All steel welded structure, vibrating treatment of ageing for removal of internal stress with high strength and good rigidity.
3-2 Electro-hydraulic synchronization system with high precision
3-3 Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.
3-4 Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.
3-5 Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
3-6 Standard 4+1 axes,ball screw and linear guider ,High efficiency AC servo motor.
3-7 Safe guide is optional.
