Specifications

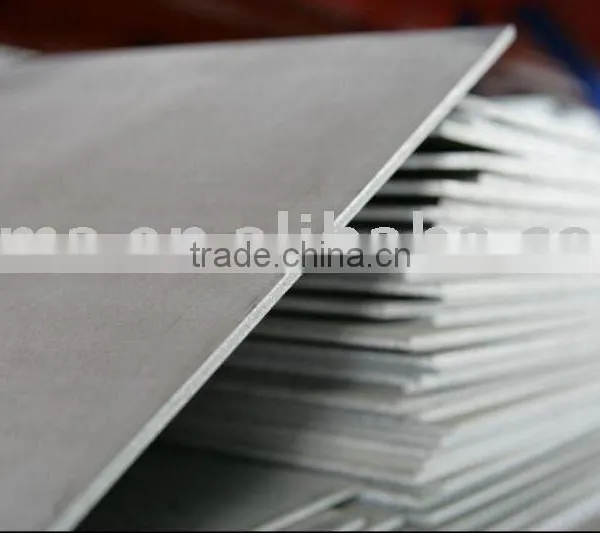

1,Gr1 Gr2 Gr5 titanium plate2,Thickness 1-20mm
3,Width 2000m Length >2000mm
4,Technique Hot Rolled
1 Type ASTM B265 titanium plate
2 Standards ASTM B265 AMS4911 ASTMF136 ASMESB365
3 Material Grade GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12 GR23 6AL4VELI
4 Standard sheet 1000*2000mm
5 Thickness 0.5 mm --20mm
6 Certification ISO9001:2000
7 Applications chemical industry ,aerospace, spaceflight , surgical implants,
titanium structure parts and fasteners for modern industry ,welding filler, marine engineering , and others
|
Grade |
Mechanical Properties(>%) |
||||||
|
Tensile Strength (min) |
Yield strength (0.2 % offset) |
Elongation (Min , %) |
|||||
Ksi |
Mpa |
Min |
Max |
||||
Ksi |
Mpa |
Ksi |
Mpa |
|
|||
Grade 1 |
35 |
240 |
20 |
170 |
45 |
310 |
24 |
Grade 2 |
50 |
345 |
40 |
275 |
65 |
450 |
20 |
Grade 3 |
65 |
450 |
55 |
380 |
80 |
550 |
18 |
Grade 4 |
80 |
550 |
70 |
483 |
95 |
655 |
15 |
Grade 5 |
130 |
895 |
120 |
828 |
- |
- |
10C |
Grade 7 |
50 |
345 |
40 |
275 |
65 |
450 |
20 |
Grade 9 |
90 |
620 |
70 |
483 |
- |
- |
15D |
Grade 12 |
70 |
483 |
50 |
345 |
- |
- |
18 |
