Chemical storage tanks large tight lining equipment
Company to introduce tight liner to absorb foreign technology,high temperature resistance(-40℃~+180℃)negative pressure resistance(less than -0.095mpa),wear resistance and so on .Lining technology not by equipment size of limit,special large equipment cannot transport of can scene construction,lining thickness 2~5mm,lining with plates has PTFE activation Board,PTFE composite glass fiber Board,PVDF composite glass fiber Board,ECTFE composite glass fiber Board.plates of produced has Japan large gold,France three products,Italy GUARNIFLON,China,card and domestic quality plates producer.
"Notes on lining technology"
(1) the lining of steel surface finish:sand blasting cleaning to Sa2 and detergents cleaning impurities,oil and so on.
(2) imported binders brushing:brushing adhesive lining.
(3)Paste:well plates coated stick to the lining of the surface paste strength>10N/mm.
(4)welding:pasted plate slot welding,weld strength reached more
than plate strength of 95%.Spark test voltage 20KV no breakdown.
(5)nozzle configuration :prefabricated pipe lining into the spout and lined with equipment welding strength reached more than plate strength of 95%.
(6)Spark detection fire 20KV no breakdown.
"Use cases"
Chemical storage tanks,tank,reaction vessel,reaction vessels,the bath of high purity and ultra-pure corrosion of equipment.

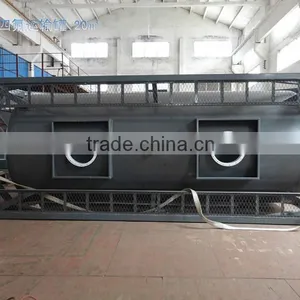

100m3 PTFE tight lining storage tank
100m3 PTFE tight lining storage tank
PTFE tight lining reaction vessel
PTFE tight lining acid tank
