Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > Full Hd 1080P 8CH SDI DVR, H.264 Digital Video Recorder Stand Alone DVR,Supports Android Phone/iPhone/iPad Mobile Phone Monitor Quality Choice

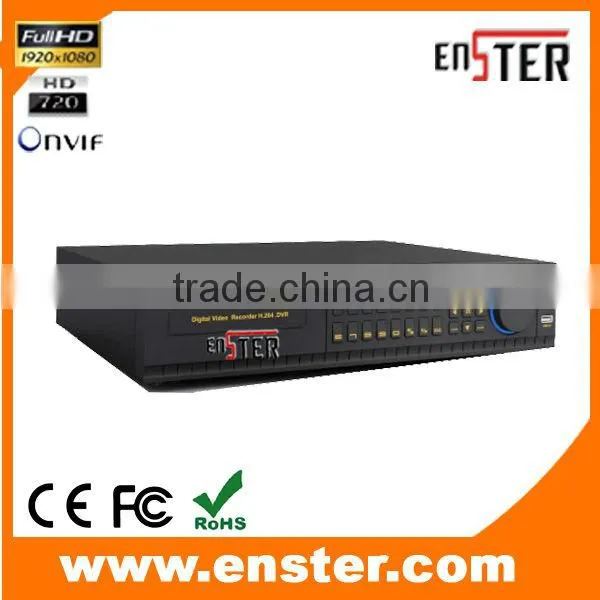

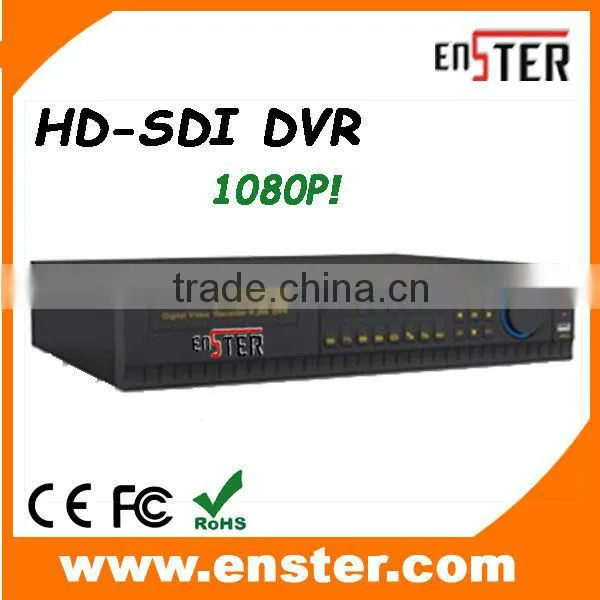

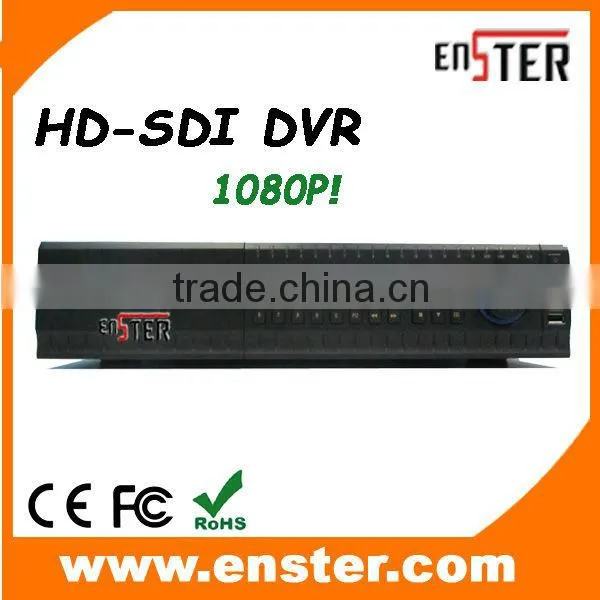

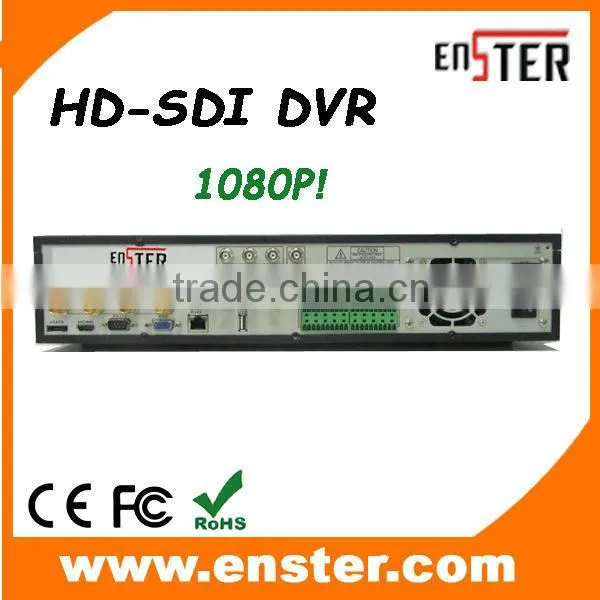

Full Hd 1080P 8CH SDI DVR, H.264 Digital Video Recorder Stand Alone DVR,Supports Android Phone/iPhone/iPad Mobile Phone Monitor Quality Choice
US$ 598 - 602
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ENSTER
Model Number:
EST-9208
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
700tvl Outdoor Gsm Camera Color Cctv Camera Infrared CameraNegotiableMOQ: 1 Set -
Hot Selling 1080p HD-SDI CCTV Surveillance CameraNegotiableMOQ: 1 Piece
-
2 Mega Pixel HD-SDI Camera,WDR HD CameraUS$ 73 - 78MOQ: 1 Set
-
1080p HD-SDI Security Camera With Vari-focal LensNegotiableMOQ: 1 Piece
-
2.1 Mega Pixel Indoor Plastic IR Dome Cameras / WDR DEFOG HD SDI CameraUS$ 54 - 56MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
ENSTER
Model Number
EST-9208
Full Hd 1080P 8CH SDI DVR
videotape:8ch 1080P
playback:1ch 1080P
Audio frequency:8 in 1 out
Alarm: Into 8 out of 4
talkback:have
HDMI Export:have
E-Sata Export:have
Number of hard drives supported:8 pieces of 2T
| Model | 9208 | ||
| System | User Interface | Graphic User Interface (OSD) | |
| OS | Embedded Linux | ||
| Operation Mode | preview, record, playback, backup, network | ||
| Password Security | Multi-level user management | ||
| A/V Input | Video input | 8 CH SDI Connector | |
| Audio input | 8 CH BNC Connector | ||
| A/V Output | HDMI output | Supports | 720P,1080I,1080P, 1024X768,1280X1024, 1366X768,1440X900 |
| VGA output | Supports | ||
| Display | 1/4 /9 optional | ||
| Video standard | PAL/NTSC | ||
| Loop | Support | ||
| CVBS main output | 1CH, BNC connector | ||
| Spot output | 1CH,BNC connector | ||
| Audio output | 1CH,BNC connector | ||
| A/V encoding parameters | Video compression | H.264 | |
| Display frame rate | PAL:200 fps(8 x 25 fps).NTSC:240 fps(8 x 30 fps) | ||
| Recording frame rate | PAL:200 fps(8 x 25 fps) NTSC:240 fps(8 x 30fps) | ||
| Video encoding resolution | PAL:D1(704X576)/HD1(704X288)/CIF(352X288)/1080P(1920x1080)/720P(1280X720) NTSC:D1(704X480)/HD1(704X240)/CIF(352X240)/1080P(1920x1080)/720P(1280X720) |
||
| Video frame rate | PAL: 1-25FPS NTSC:1-30FPS | ||
| Video bit rate | 720P:1536kbps-3072kbps, 1080P:4608-6144kbps,D1:768-1536Kbps,HD1:512-1280kpbs,CIF:384-768kbps,QCIF:192-384kbps | ||
| Stream Type | Video & Audio/Video | ||
| Audio compression | ADPCM | ||
| Recording mode | Always/Schedule/Alarm recording/Motion detection recording | ||
| Video search | Time/Channel/Event | ||
| Audio bit rate | 32kbps | ||
| Dual-stream | Supports | ||
| Mobile phone Monitor | Supports Android phone/iPhone/iPad | ||
| Recording resolution | 8 CH 1080P Recroding + 1 CH 1080P realtime Playback | ||
| HDD | Type | 8 pieces SATA | |
| Maximum capacity | 2TB for each Sata connector | ||
| External connectors | Voice talk | Support, 1CH BNC line in/1CH BNC line out. | |
| Record mode | Audio & Video recording simultaneously | ||
| Remote control | Supports | ||
| Mouse control | Supports | ||
| Network protocol | Supports IE/PPPoE/DDNS | ||
| Domain name server | Support 88110,3322, dyndns, no-ip, changeip, dnsexit domain name server as default value. | ||
| Network | 1 RJ45 10M/100M/1000M | ||
| Serial port | 2 RS-485 serial port | ||
| RS-232 serial port | |||
| E-SATA Connector | Supports | ||
| USB Connector | 2 USB | ||
| Firmware update | Support USB update/Network update | ||
| Alarm input | 8 CH alarm input | ||
| Alarm output | 2 CH alarm output | ||
| Others | Power supply | ATX | |
| Power (without HDD) | ≤70 W | ||
| Operation Temperature | -10°C--+55°C | ||
| Operation Humidity | 10%--90% | ||
| Chassis | Standard 2U | ||
| Dimension | 440mm(W)×420mm(D)×90mm(H) | ||
| Weight(without HDD) | ≤6Kg | ||
....
