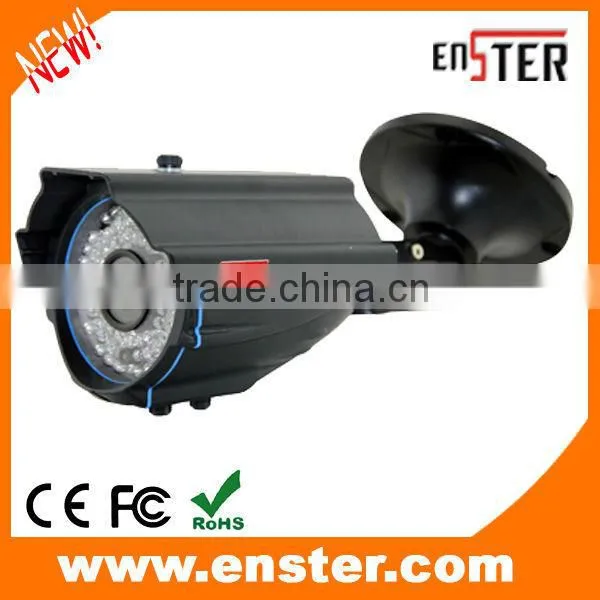

2M Active Pixels WDR Output1080P HD SDI mamera
Image Sensor: 1/ 2.7” Panasonic CMOS
Resolution: 1080P
Lens Mount: Varifocal 2.8-12mm
Waterproof Criterion :IP66
Infrared Luminary: 60 pieces IR-LED
Illuminate Distance: More than 50m
WDR: Support
Supplied Voltage:DC12V
| Model No. | EST-W11561-SDI |
|---|---|
| Camera Type | Color Weatherproof IR Camera |
| Image Sensor | 1/ 2.7” Panasonic CMOS |
| Total Pixels | 2010(H) x 1108(V) = 2,227,080 |
| Effective Pixels | 1944(H) x 1092(V)= 2,122,848 |
| Scanning system | Progressive |
| Resolution | Digital: 1080(30P), 720(60P) Max: 1,100TV lines(1080P) |
| Min Illumination | Color : 1.0 lux, BW : 0.5 lux, |
| Video Output | Digital : BT.1120, HD-SDI, Analog : NTSC/PAL CVBS(w/o WDR) |
| S/N Ratio | More than 50dB (AGC off) |
| Function | |
| Lens | DC/Manual |
| AGC | Auto |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| Digital Slow Shutter | Off/On(x4) |
| Brightness | 0 - 20 |
| WDR/BLC | Off/BLC/WDR |
| ACE | |
| Day&Night | Auto/Color/B&W |
| White Balance | Auto/Auto ext/Pushing/Manual |
| DNR (Digital Noise Reduction) | Off/Low/Middle/High |
| Mirror | Off/On |
| Flip | Off/On |
| Sharpness | 0 – 10 steps |
| Shading | Off/On |
| Digital Zoom | 0 – 96 steps |
| Privacy Mask | 32 Masks |
| Motion Detection | Off/On |
| Language | Korean/Chinese/English |
| Camera | |
| Lens Mount | Varifocal Lens 2.8 -12mm |
| Infrared Luminary | 60 pieces IR-LED |
| Infrared Wavelength | 850 nm |
| Illuminate Distance | More than? 50 M |
| Waterproof Criterion | IP 66 |

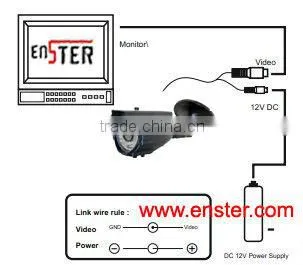

| I/O Connector | HD-SDI: SMA connector, CVBS: BNC connector |
| Supplied Voltage | DC12V Voltage |
| Power Consumption | IR On: 400mA max., IR Off: Less than 130mA |
| Dimensions | 80x?90 x160mm |
| Weight | Approx. 1.3kg |
Features:
1. New style design easy for installation
2. Bottom screws for zoom/focus adjustment
3. Cable is built in bracket
4. Metal waterproof IR camera IP66 waterproof standard
5. High definition up to 700TVL (700/650/480/ 420TVL option)
6. 700TVL camera with built-in OSD, controlled by cable
7. IR distance more than 50meters
8. Case color: Black
9. OEM and ODM are welcome
1.Any inquiries will be replied within 24 hours
2.Professional manufacturer. Welcome to visit our website: www.enster.com
3.OEM/ODM available:
1).Silk print logo on the camera;
2). Customized camera housing;
3).Customized Color box
4).Any your idea on camera we can help you to design and put it into production
4.High quality, fashion designs ,reasonable & competitive price, fast lead time .
5.After-Sale Service:
1). All products will have been strictly Quality Checked in house before packing
2). All products will be well packed before shipping.
3).All our products have 2 year warranty,And we sure the product will be free from maintenance
within warranty period.
6.Faster delivery:
Sample order in stock ,and 3--7days for bulk production
7.Payment:
You can pay for the order via :T/T,Western Union ,Paypal & MoneyGram .
8.Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS , China Air Post.
You also can choose your own shipping forwarder.
...
