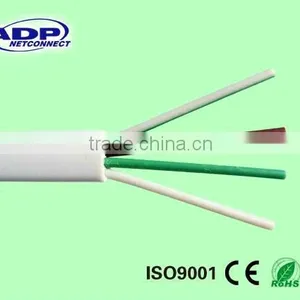

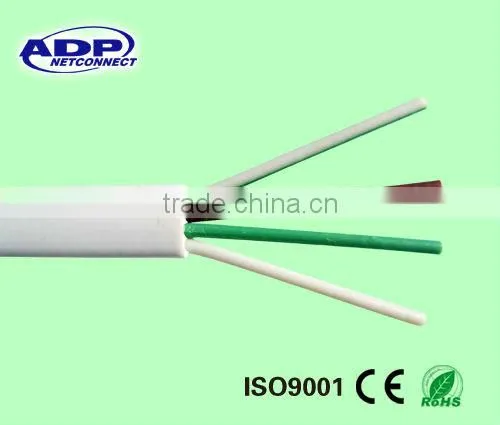

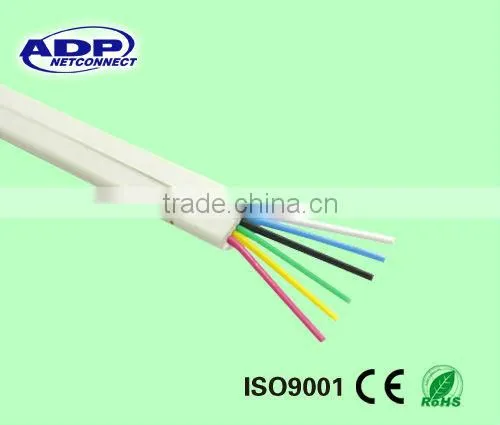

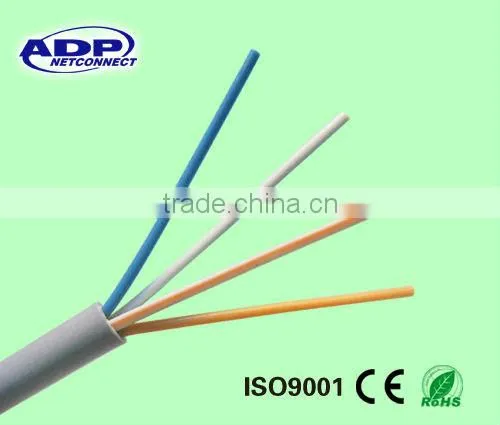

4 cores Telephone Cable
Products Specification
- Feature different strand lay-length, keeping good NEXT and FEXT, anti-electromagnetic disturbimprovement .
- Structure bare copper, PE insulation, FR PVC/LSOH PVC jacket, twinning structure, flexible added, easily cabling.
- Telephone cable trunk transmission .
| Model NO. | CU/copper communication telephone cable 2 core 4 core 6 core |
| Conductor Dimension | 0.37mm/0.40mm/0.50mm, 24AWG |
| Conductor Material | OFC/CCC/CCA/CCS |
| Insulation | 1. Water blocking swellable tape (optional) |
| 2. HD-PE (High density polyethylene) | |
| 3. 1.0mmHD-PE(Highdensity polyethylene) | |
|
Number of Twisted Pair |
2P/5P/7P/10P/16P/20P/25P/30P/32P/ 50P/100P/150P/200P |
| Shielding | UTP/Polyester Tape/Al Foil |
| Ripcord yes/no | Yes with Nylon |
| Jacket | PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE |
| Separator | Mylar Spirally Wrapped |
| Color | Different color is available |
| Operating temperature | -20 ° C - +75 ° C |
| Service Life | 20~25 years |
| Frequency (MHz) | IL-Max (dB/100m) | NEXT Min(dB/100m) | PSNEXT Min(dB/100m) | ELFEXT Min(dB/100m) |
RL-Min (dB) |
| 1 | 2.6 | 41 | 41 | 39 | 12 |
| 4 | 5.6 | 32 | 32 | 27 | 12 |
| 10 | 9.7 | 26 | 26 | 19 | 12 |
| 16 | 13.1 | 23 | 23 | 15 | 10 |
Packing
100m/roll,200m/roll,305m/roll or customized
Certificates:
Company Info
Founded in 2002, Shenzhen ADP Cables Co., Ltd. is located in Shenzhen City, a coastal city with convenient transportation. The company specializes in production of 1mm2 to 500mm2 power cables, two cores to 288 cores of communication optical fiber cables, 1 pair to 200 pairs of communication cables, security cables, coaxial cables, other accessories, etc.
Its factory has a floor area of about 200,000 square meters. The company has constantly introduced international advanced production equipment and testing equipment to strictly control the links of its production. The company has a total staff member of more than 500 including top technical R & D talent and sale elites. The company wins high praise and wide approval from the industry by virtue of its excellent and high-quality products and service.
Its products have passed the certifications of UL, ISO9001 Quality Management System, BV, CE, ROHS, CCC, VDE, etc. The company was successively awarded “Shenzhen Top 10 E-business Members” by Alibaba in 2010 and 2011. Its export business has constantly been expanded. Its products are sold in more than 100 countries and areas. The company realizes an annual output value of USD 0.2 billion. During development, the company has established long-term cooperative relations with new and old customers around the world in the principle of “Credit, Equality, Reciprocity, Quality First, Service Supremacy”. Welcome to contact us.
