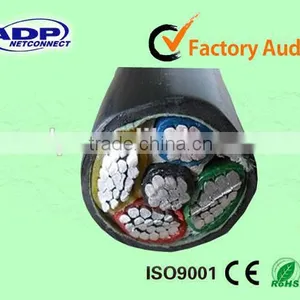

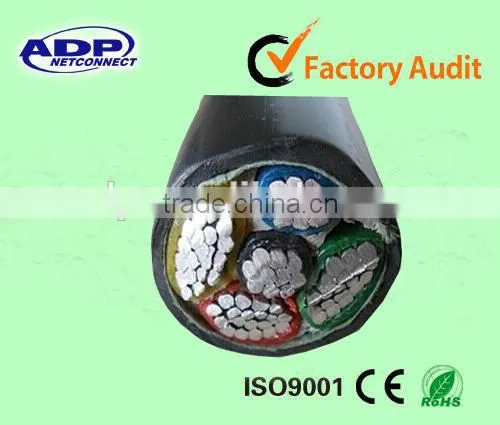

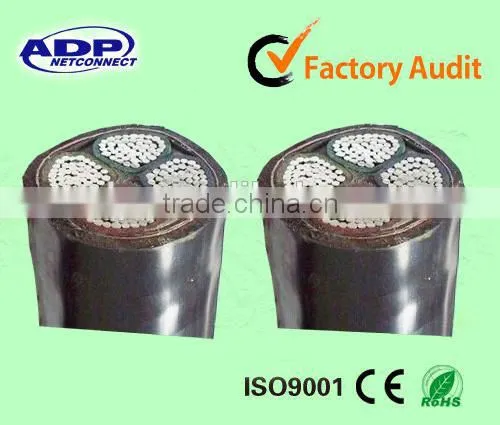

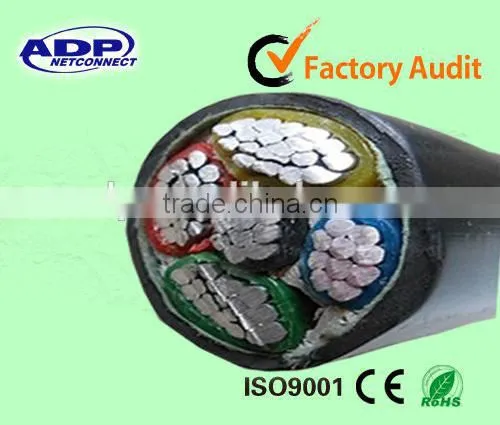

0.6/1KV XLPE Insulation PVC Sheath YJLV Electric/Power Cable
Descrption :
1. 0.6/1KV YJLV power cable
2.GB and IEC standard.
3.ISO,CCC certification .
4. Direct factory.
Application :
It is used to transmit and distribute power in power transmission and distribution system of 0.6/1KV,apply to lay indoor,in tunnel,cable trench.
Type & Designation:
Type |
Name |
Application |
|
|
Cu conductor |
Al Conductor |
||
|
YJV YJY |
YJLV YJLV |
XLPE insulated, PVC or PE sheathed power cable |
For laying indoor, tunnel, channel and underground. Unable to bear external mechanical force during laid. |
|
YJV22 YJV23 |
YJLV22 YJLY33 |
XLPE insulated, steel tape armoured, PVC or PE sheathed power cable |
For laying indoor, tunnel, channel and underground. Able to bear external mechanical force, but unable to bear large pulling force. |
|
YJV32 YJV33 |
YJLV32 YJLV33 |
XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable |
For laying in shaft with large difference of level. Able to bear external mechanical force ,and moderate pulling force. |
|
YJV42 YJV43 |
YJLV42 YJLV43 |
XLPE insulated, thick steel armoured, PVC or PE sheathed power cable |
Can be laid in water or soil eith drop height .Able to bear positive pressure and pulling force. |
| Conductor Cross-Section | Current(A) |
| YJLV 0.6/1KV 3*4+1*2.5 | 30 |
| YJLV 0.6/1KV 3*6+1*4 | 40 |
| YJLV 0.6/1KV 3*10+1*6 | 50 |
| YJLV 0.6/1KV 3*16+1*6 | 85 |
| YJLV 0.6/1KV 3*25+1*16 | 115 |
| YJLV 0.6/1KV 3*35+1*16 | 145 |
| YJLV 0.6/1KV 3*50+1*25 | 175 |
| YJLV 0.6/1KV 3*70+1*35 | 220 |
| YJLV 0.6/1KV 3*95+1*50 | 270 |
| YJLV 0.6/1KV 3*120+1*70 | 315 |
| YJLV 0.6/1KV 3*150+1*70 | 360 |
| YJLV 0.6/1KV 3*185+1*95 | 420 |
| YJLV 0.6/1KV 3*240+1*120 | 500 |
| YJLV 0.6/1KV 3*300+1*150 | 570 |
| YJLV 0.6/1KV 3*400+1*240 | 670 |
Using Character:
1.Max. permissible continuous operating temperature of conductor ≤70°
2 .Max. short circuit temperature of cable conductor shall not exceed 160°C(5s maximum duration)
3. The ambient temperature when installation should be above 0°C.
4.The product is manufactured according to the standard of GB,IEC,DIN and ICEA upon request
