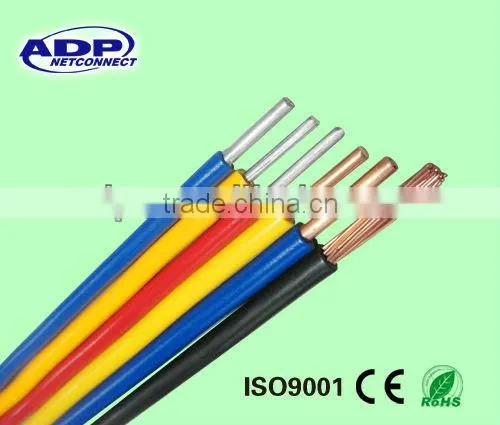

1.5mm Copper conductor Electric Cable(BV) with pvc insulation
Application:
PVC insulated wires is suitable for laying at the fixed places, such as:
1). Power plant
2). Electrical appliance
3). Instrument
4). Telecommunication equipment
Main characteristics:
1). Single or multiple cores PVC insulated
2). AC 450/750V
3). Model: 0.75-240mm²
4). Rated temperature: 65~75°C
5). CCC IEC ISO (IEC 60227-1:2007)
6). Design and manufacture according to the requirements of customers
Some specification of Electric cable(BV):
Item Name Model Core Size Condutor Cross section Conductor Insulation
Rigid wire BV singlecore 1/1.38mm 1x1.5 sqmm bare copper PVC, 0.6mm
Rigid wire BV singlecore 1/1.78mm 1x2.5 sqmm bare copper PVC, 0.6mm
Rigid wire BV singlecore 1/2.25mm 1x1.5 sqmm bare copper PVC, 0.7mm
Rigid wire BV singlecore 1/2.76mm 1x4.0 sqmm bare copper PVC, 0.8mm
Rigid wire BV singlecore 7/1.35mm 1x6.0 sqmm bare copper PVC, 0.8mm
Rigid wire BV singlecore 7/2.14mm 1x25.0 sqmm bare copper PVC, 1.0mm
Rigid wire BV singlecore 7/2.52mm 1x35 sqmm bare copper PVC, 1.0mm
Rigid wire BV singlecore 19/1.78mm 1x50 sqmm bare copper PVC, 1.0mm
we are professionally manufacture for cat5e,cat6e,cat6e,telephone cables and patch cords.we have 4 factories now and almost of the material in the cables is made by it can save much cost so that provide you with better quality and favourable price.our factory is located in shenzhen,China.warmly welcome you to visit it.
