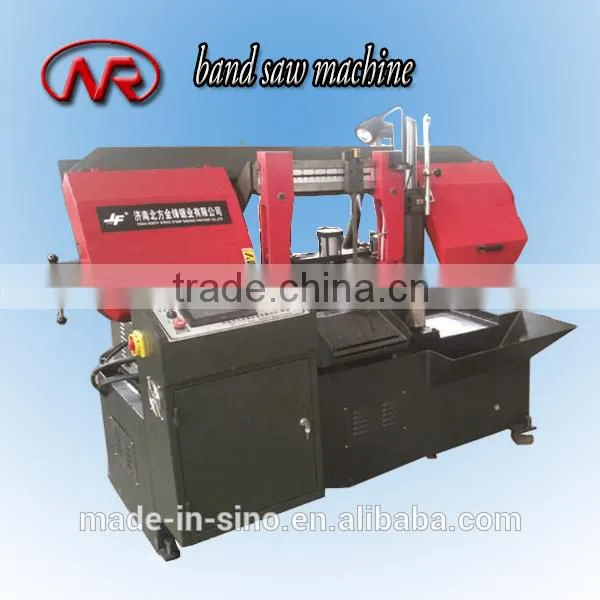

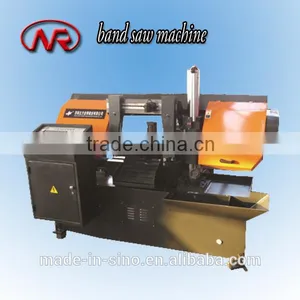

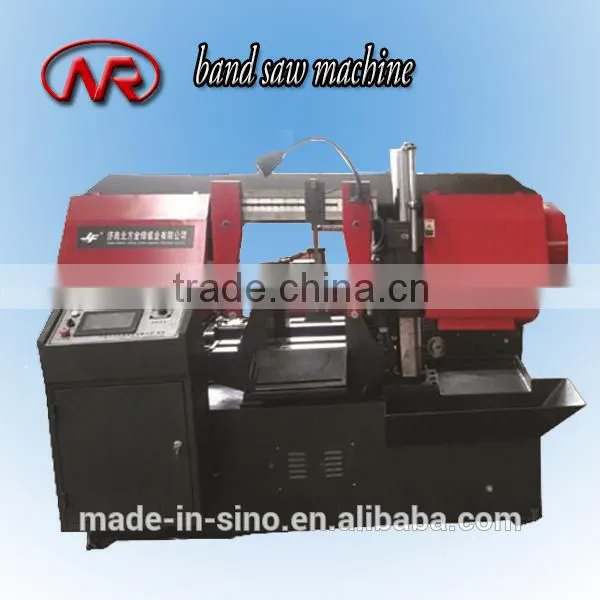

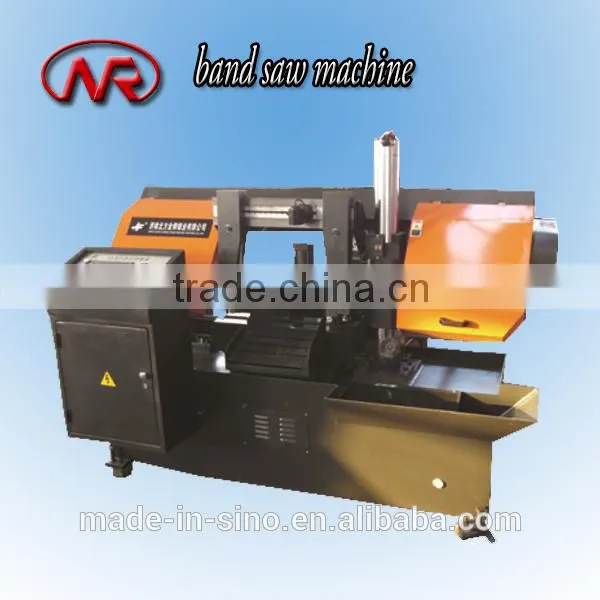

GS400 Semi-automic cnc metal cutting band saw machine
Advantages:
1.Automic NC saw applicable to mass production and continuous cutting .
2.PLC control system, which can accommodate a group or several groups of dataand continuous cutting.
3. Touchscreen operation
Capacity Round |
400mm |
Capacity Rectangular |
400*400 mm |
Blade Size (Length/Width/Thickness) |
4900*41*1.3 mm |
Cutting Length Control |
Controlled by the grating guage |
Power Requirement |
380V,50Hz or customized |
Main Motor Rate |
4.0KW |
| Oil Pump motor rate | 0.75KW |
Coolant Pump rate |
0.09KW |
Maximum Vise Opening |
420 mm |
Blade speed(m/min) |
32/50/70,Inverter |
Vise action Method |
Clamping vise, hydraulic |
Shipping dimensions |
1650X850X1350MM |
metal cutting band saw Packaging |
packing band saw machine 1.Plastic film wraped, 2.Steel/plywood box 3.Suitable for the long distance inland and ocean freight transportation |
The machine can cut the following materials:
JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Unitll now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing. Our main products include double-column band sawing machine, angle band sawing machine, NC band sawing machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
1.We are Alibaba Assessed 3 years Gold Supplier. |
| 2.we have trade assurance amount $26000,granted by |
| 3.We are factory,with top quality,the most competitive price,Good after – sale service. |
| 4.We have been in this field for 17 years, covering market of 30 different countries |
5.100% QC inspection Before Shippment. |
6. All the machines have been CE & ISO approved. |
