Lubrication system
turning and milling composite mechanical surface treatment machine with lubricating system adopts PLC logic control, and cubage type dispenser, complete timing quantitative centralized supply system.
Cooling system
Strong cutting water pump provides enough cooling water for machining parts, cnc lathe machining provides rinsing and cutting actions for the machining, and improves surface quality of machining workplace.
Structure with heavy-duty type
Widen, and the increased iron structure adopts finite element analysis technology, with optimum rigidity, excellent vibration-absorption performance and toughness, guaranteeing stability of machine.

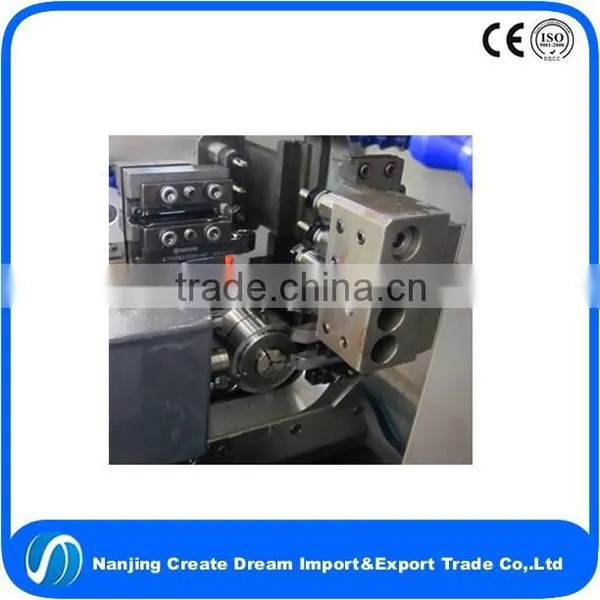

Lateral milling institutions
Traditional power tools adopt the design with a piece of ER16 and two pieces of ER11. cnc automatic lathe takes fully processing conditions into the big blades and saws easily, tools of ER11 are near to the chuck to guarantee the rigidity of the small tools and the precision of processing.

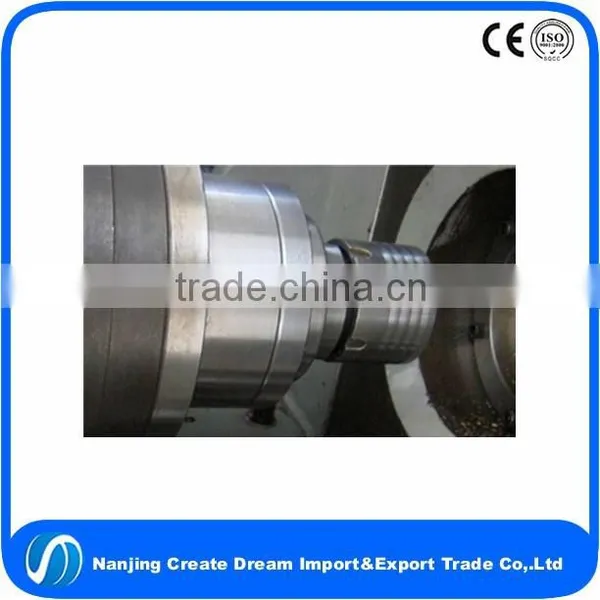

High precision and rigidity internal-mounted electric spindle
Turning and milling composite mechanical surface treatment machine adopts Japan NSK high precision bevel ball bearing to make sure spindle axis position and radial direction’s high rigidity. Adopt advanced motor coil, perfect position control and temperature control function .Adopt safety oil cooler thermal design to make sure the whole main spindle work smoothly in any speed.
Electric control system with high stability
Electric box is in accordance with standard CE, cnc lathe machining adopts control elements of world famous brand. Reasonable thermal balance and anti-interference design enable the machine to be more stable
specifications of turning and milling composite mechanical surface treatment machine
| Main shaft of turning and milling composite mechanical surface treatment machine | Through-hole dia. of main shaft | 21 |
| Max machining bar(mm) | 20 | |
| Chuck model of turning and milling composite mechanical surface treatment machine | TSUGAMI S20 | |
| Height from center of main shaft to the floor(mm) | 975 | |
| Unlimited graduation of main shaft | Support | |
| System of turning and milling composite mechanical surface treatment machine | Operating system of turning and milling composite mechanical surface treatment machine | SYNTEC 10B |
| Main shaft motor | 3.0KW | |
| Rotary speed of foundation base(rpm) | 1500 | |
| Max rotary speed | 8000 | |
| Servo motor power of X/Y/Z/x2/Z2 shaft(KW) | 0.75 | |
| X/Z shaft of turning and milling composite mechanical surface treatment machine | Travel of shaft X(mm) | 40 |
| Travel of shaft Z(mm) | 180 | |
| X/Y/Z/x2/Z2 rapid feeding speed(G00) | 24m/min | |
| accuracy of turning and milling composite mechanical surface treatment machine | X/Y/Z//x2/Z2 repeated accuracy(mm) | 0.004 |
| X/Y/Z/X2/Z2 positioning accuracy(mm) | 0.005 | |
| Others of turning and milling composite mechanical surface treatment machine | O.D.Tool number of turning and milling composite mechanical surface treatment machine | 5 |
| I.D. Tool number of turning and milling composite mechanical surface treatment machine | 5+4 | |
| Side milling tool number | 5 | |
| Sub-spindle End milling tool number | ||
| O.D.Spec.of tool of turning and milling composite mechanical surface treatment machine | ER12 | |
| I.D.Spec.of tool of turning and milling composite mechanical surface treatment machine | ER11*9 | |
| Side milling spec.of tool | ER11*3/ER16*2 | |
| Sub-spindle End milling psec,of tool | ||
| Outline dimension(L*W*H) | 2110mm*1510mm*1900mm | |
| Total power(KW) | 12 | |
| Net weight(KG) of turning and milling composite mechanical surface treatment machine | About 1900 |

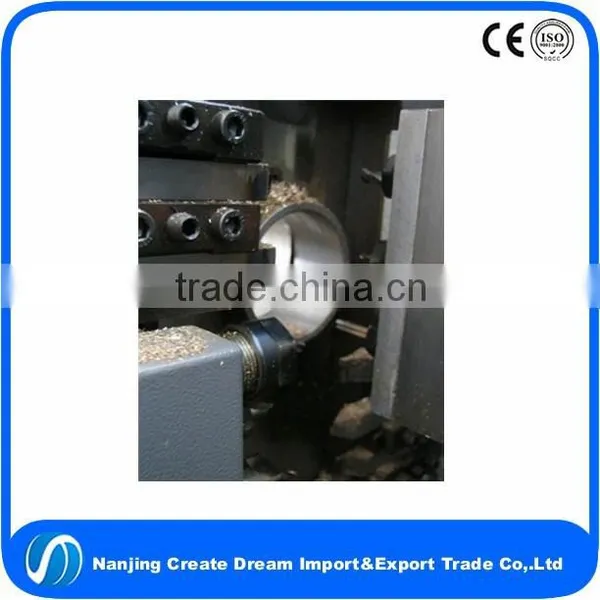

samples of turning and milling composite mechanical surface treatment machine
Established in 2014, Nanjing Create Dream Import & Export Trade Co., Ltd. is a trader specialized in the research, development and production of CNC lathe, fixings systems and communication equipments .We are located in Nanjing, with convenient transportation access. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communications industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
CNC machine sales department was established to be responsible for sales of cnc lathe machining . We have introduced of Japanese technology and advanced management idea. Newly purchased equipment includes grinding machine, gantry type milling machine, coordinate measuring machine, laser interferometer and precision processing and testing equipment. We employee industry elites to develop the no guide sleeve structure with independent property right. At present, we have developed Swiss type single shaft CNC lathe, Swiss type single shaft dual powder head CNC lathe, double-main-shaft turning lathe & 8-axis machining center, offering a broad selection for customers and meeting different processing requirements. Our cnc lathe machining was widely applied in various industries which require high precision, multi-batch and complex shape, including aerospace, military industry, auto, motorcycles, communications, refrigeration, optics, appliances, measuring tools, meters, electronics, office equipment, etc. In the future, we will provide more high-performance equipment as well as attentive services to make your business successful!
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us .We are looking forward to forming successful business relationships with new clients around the world in the near future.
