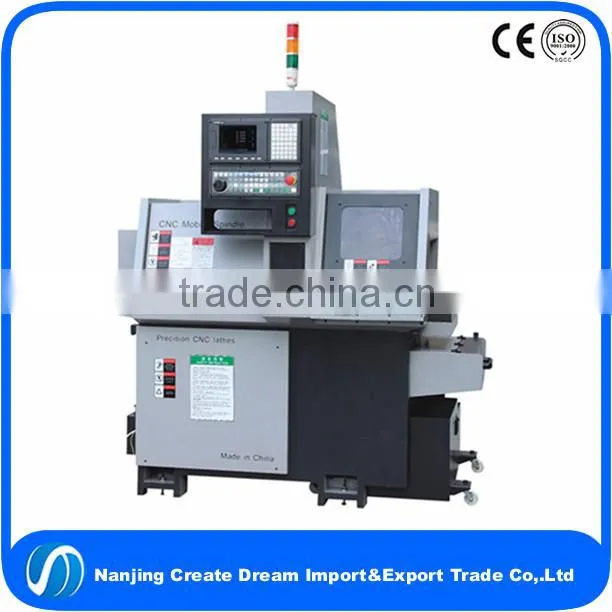

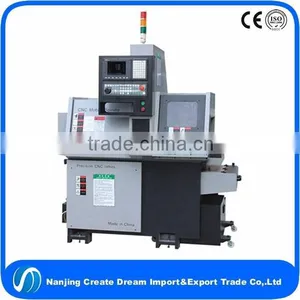

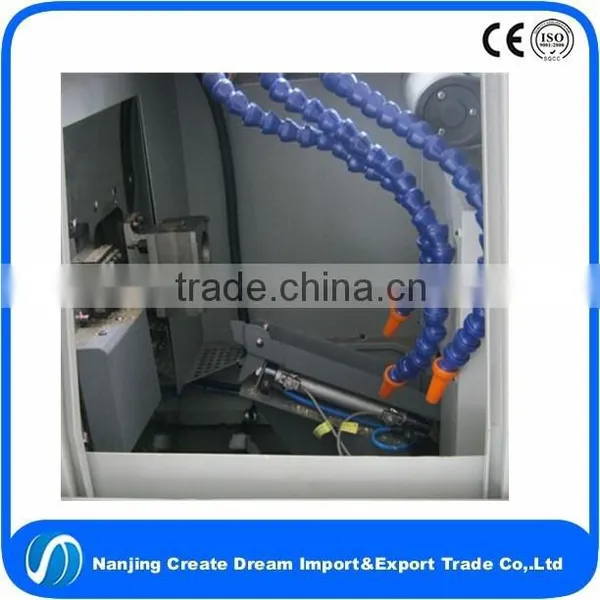

1 .CNC sliding head sigle shaft lathe
2.Adopt imported Japanese NSK bearing,THK guide roll,high precision and long life
3.Freely change no guide bush and fixed guide bush,save material
4.24 hours uninterrupted electric power,high efficiency
5.8 items invention ,26 items utility new patents consolidate ,state patent office legal protection
6. Oil cooling electric spindle, comprehensive cooling during high speed flexible tool arrangement design, option freely
7. Absolute type operation, machine working when start, save time
8. Flexible tool arrangement design, option freely
9. Sub spindle boring tool holder, easily achieve changing power head tool
10. With elegant appearance, innovative modeling, continuous improving
11. Parts after molding, auxiliary shaft discharge, conveyor belt out automatically
12. CNC sliding head double-main-shaft lathe
13. Driling, milling and turning composite, milling logo, name and brand name clearly and precisely
14. Processing two ending faces of work pieces at one time, two work pieces can be done at the same time, more efficient
High precision ball screw and linear guide
X/Y/Z shaft adopts THK ball screw from MPI,the two Motor fixed ends adopts NSK TACdesign, thermal displacement of machine combined bearing support, it uses prestreching is reduced to minimum.
High precision and rigidity internal-mounted electric spindle
cnc machinery adopts Japan NSK high precision bevel ball bearing to make sure spindle axis position and radial direction’s high rigidity.Adopt advanced motor coil,perfect position controland temperature control function .Adopt safety oil cooler thermal design to make sure the whole main spindle work smoothly in any speed.
No guide bush design
cnc machinery adopts no guide bush design. Unique no guide bush design can make the walk schemer endemic, long tail materials are fundamentally solved, general walked the length of the tail material sketchy 120mm-180mm left and right, but without using a guide set design , below and walked the length of the tail materialcan make the tail after feeding control in 10mm sword quite. Because it cannot use guide set of processing, walk schemer due to materials bending appear tool diameter elliptic phenomenon get greatly improved, and make themachine roundness and walk knife machine quite.In processed when the machine farmhand heavily thing also can use a fixed guide covers and activities guided sets.
syntec controller
cnc machinery adopts SYNTEC 10B controller from Taiwan ,with its high stability, high precision and strong operating function to provide essential to guarantee for machining high quality work-pieces, with 16-shaft 4-linkage line, unlimited Indexing main shaft, strong network connections , hand wheel simulation , etc.
Oil cooling system of main spindle
cnc machinery adopt high quality motor and cooling oil,extermal connected with strong cooling module and cooling fan to guarantee safty,high efficiency,mute,to promise a steady and perfect working environment for the electric main spindle.
long work piece rotary feed device
cnc machinery can reduce the beat of the slender,the improvement of the machining quality,because use PVC engineering plastic seat base,greatly seat base,greatly reducing the surface Brush,can maaximizethe protection of the surface finish.
specifications of cnc machinery
| Main shaft of high precision in a basic 3-axis machine | Through-hole dia. of main shaft | 21 |
| Max machining bar(mm) | 20 | |
| Chuck model of cnc machinery | TSUGAMI S20 | |
| Height from center of main shaft to the floor(mm) | 975 | |
| Unlimited graduation of main shaft | Support | |
| System of high precision in a basic 3-axis machine | Operating system of cnc machinery | SYNTEC 10B |
| Main shaft motor | 3.0KW | |
| Rotary speed of foundation base(rpm) | 1500 | |
| Max rotary speed of cnc machinery | 8000 | |
| Servo motor power of X/Y/Z/x2/Z2 shaft(KW) | 0.75 | |
| X/Z shaft of high precision in a basic 3-axis machine | Travel of shaft X(mm) | 40 |
| Travel of shaft Z(mm) | 180 | |
| X/Y/Z/x2/Z2 rapid feeding speed(G00) | 24m/min | |
| accuracy of high precision in a basic 3-axis machine | X/Y/Z//x2/Z2 repeated accuracy(mm) | 0.004 |
| X/Y/Z/X2/Z2 positioning accuracy(mm) | 0.005 | |
| Others of cnc machinery | O.D.Tool number of cnc machinery | 5 |
| I.D. Tool number of cnc machinery | 4 | |
| end milling tool number | 4 | |
| Sub-spindle End milling tool number | 3 | |
| O.D.Spec.of tool | ER12 | |
| I.D.Spec.of tool of cnc machinery | ER11 | |
| Side milling spec.of tool | ER11*2/ER16*2 | |
| End milling psec,of tool | ER11*3 | |
| Outline dimension(L*W*H) | 1700mm*1210mm*1800mm | |
| Total power(KW) | 6 | |
| Net weight(KG) of cnc machinery | About 1260 |

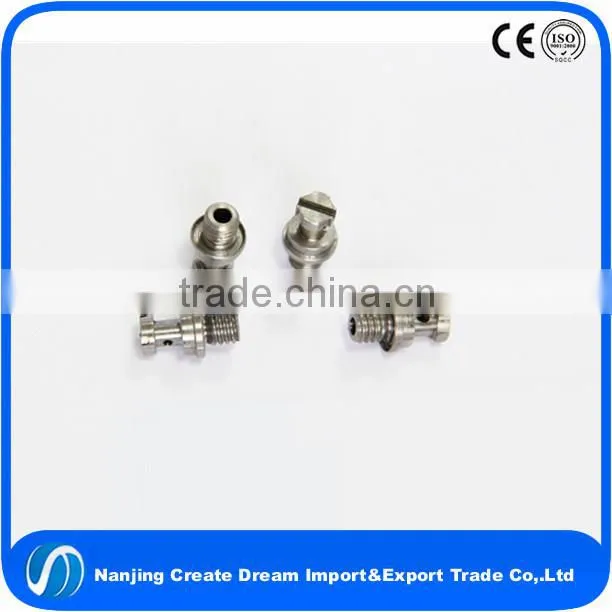

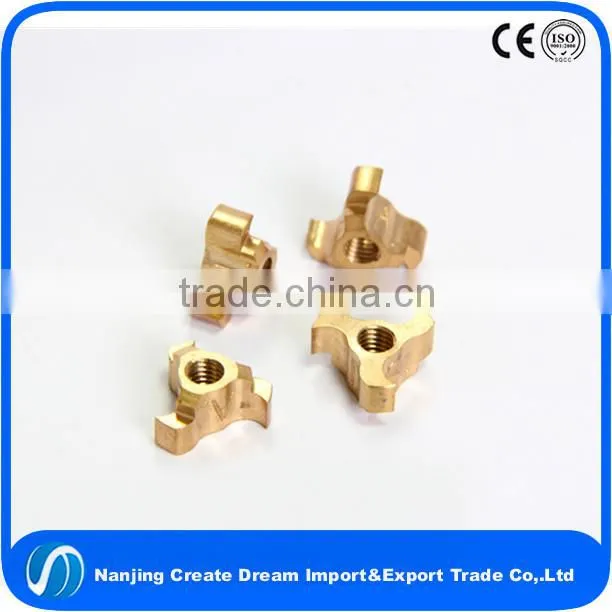

samples of high precision in a basic 3-axis machine
Established in 2014, Nanjing Create Dream Import & Export Trade Co., Ltd. is a trader specialized in the research, development and production of CNC lathe, fixings systems and communication equipments .We are located in Nanjing, with convenient transportation access. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communications industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
CNC machine sales department was established to be responsible for sales of cnc lathe machining . We have introduced of Japanese technology and advanced management idea. Newly purchased equipment includes grinding machine, gantry type milling machine, coordinate measuring machine, laser interferometer and precision processing and testing equipment. We employee industry elites to develop the no guide sleeve structure with independent property right. At present, we have developed Swiss type single shaft CNC lathe, Swiss type single shaft dual powder head CNC lathe, double-main-shaft turning lathe & 8-axis machining center, offering a broad selection for customers and meeting different processing requirements. Our cnc lathe machining was widely applied in various industries which require high precision, multi-batch and complex shape, including aerospace, military industry, auto, motorcycles, communications, refrigeration, optics, appliances, measuring tools, meters, electronics, office equipment, etc. In the future, we will provide more high-performance equipment as well as attentive services to make your business successful!
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us .We are looking forward to forming successful business relationships with new clients around the world in the near future.
