CPE Device for Wireless 5.8 Ghz With Internal Antenna

Name: CPE Device for Wireless 5.8 Ghz With Internal Antenna
Brand: 5M-12
SKU: 100935013

CPE Device for Wireless 5.8 Ghz With Internal Antenna thumbnail-1

CPE Device for Wireless 5.8 Ghz With Internal Antenna thumbnail-2

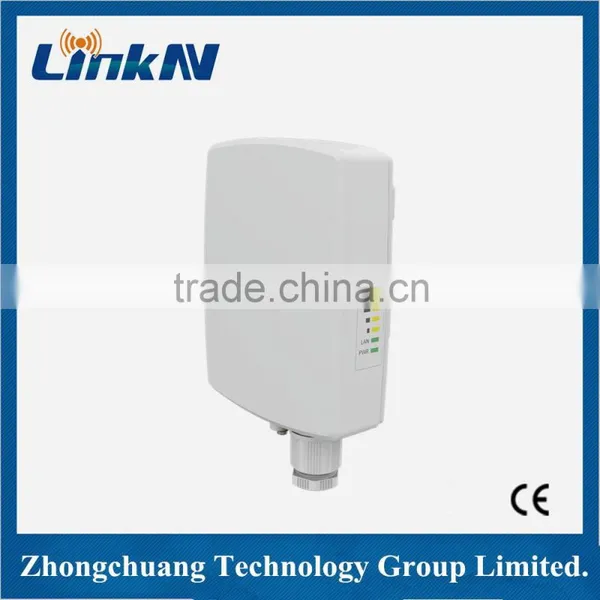

CPE Device for Wireless 5.8 Ghz With Internal Antenna photo-1

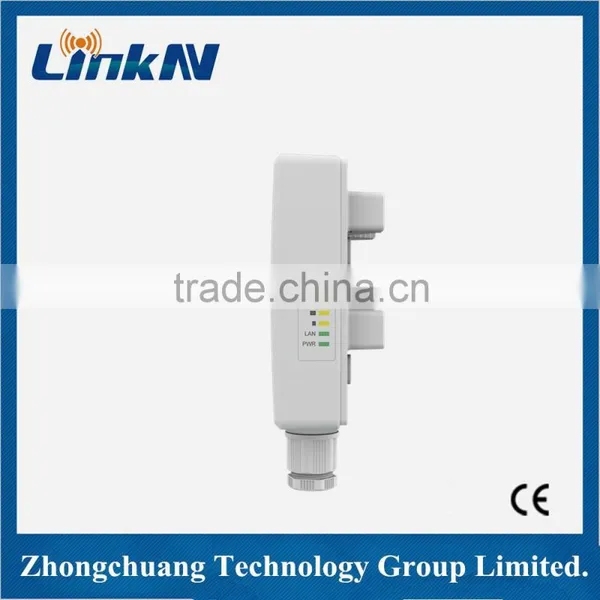

CPE Device for Wireless 5.8 Ghz With Internal Antenna photo-2

US$ 59 - 99 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

5M-12

Model Number:

LinkAV

Contact Supplier Request Quote Chat Now

Shenzhen Zhongchuang Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name 5M-12

Model Number LinkAV

China Brand CPE Device for Wireless 5.8 Ghz with iternal 12 dBi Dual Polarization Panel Antenna

Product Description

ZC 5M-12 is a high performance,high stable base station with 5Ghz frequency.the equipment internal integrated MiMo 2x2 technology included advanced 802.11n wireless core and dual polarization directional antennas,the solid shell up to IP-65. it has faithful,advanced,rich functions operating system,can efficient offer high speed and stable wireless network connection safely. ZC 5M-12 also can work in AP mode, support PTP,PTMP Application.

The software engine for the ZC 5M-12 is very strong,it can work in bridging mode,also can work in routing mode.The graphical user interface(GUI) is designed according to Adobe Flex, friendly interface and configuration will take effect immediately.the software built in Very practical installation tools included Site survey, antenna calibration, delay time to restart and frequency spectrum analysis ect. , also is compatible with industry-leading management tools WNMS (wireless Network Management System).

Technical Parameters:

Produce Model	LinkAV-5M-12
WLAN Standard	IEEE 802.11 a/n
Transmission Mode	MiMo 2x2
Working Mode	AP WDS, CPE, CPE WDS, iPoll AP, iPoll CPE
Wireless Frequency	5Ghz
Transmitting Power	Maximum 29 dBm
Receiving Sensitivity	-95 ~ -75 dBm
Channel Bandwidth	20, 40 MHz
Modulation Mode	802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
Data Rate	802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
Data Rate	802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Error correction methods	FEC, Selective ARQ
Duplex mode	Time-division Duplex(TDD)
Antenna Type	Integrated Dual Polarization Panel Antenna
Antenna Gain	12dBi
Wired Interface	10/100 Base-T, RJ45
Wireless Security	WEP, WPA/WPA2 Personal Encryption, WPA/WPA2 Enterprise Encryption, WMM,WACL
User Isolation	Supported
WAN	Static IP, DHCP client, PPPoE client
Static Routing	Supported
DHCP	The client end, Server, Relay
NAT	NAT routing or no NAT routing
VLAN	For management and data support
Basic Software	To define/limit frequency, channel bandwidth, EIRP, modulation mode, all configuration can be modified in real time
Wireless QoS	WMM
Service	The DHCP server, SNMP servers, NTP client, alarm, remote system logs, wireless and Ethernet statistics, bandwidth limited
Management	HTTP(S)GUI, SSH CLI, SNMP read,WNMS,Troubleshooting and repair files,ICMP reset
Tools	The site survey, the connection test, the antenna calibration, the Ping command, routing track, frequency spectrum analysis
Size	150mm x 115mm x 55mm
Weight	400 g
Power supply	12 - 24V DC PoE,100 – 240V AC Power Adapter
Power Consumption	6.5 W
Working Temperature	-20°C (-4 F) ~ +60°C (+140 F)

Antenna Specs:

Horizontal and Vertical

Frequency	Gain	Polarization mode	XPI	Max VSWR	The vertical angle	The horizontal angle
4.9-5.9GHz	12dBi	Vertical/Horizontal Dual polarization	22dB	1.9:1	40°	60°

Company Information

In 2005 we founded our international Head Office in Shenzhen, China, and began offering our products worldwide in 2013. We produce Wireless Transmitters with high quality under very competitive price for 8 years in China.

LinkAV with cutting edge technology of Zhongchuang Technology Group Limited is a brand established recently to meet the demands of COFDM, TDD or 3G/4G wireless connection requirements.

In 2005 we founded our international Head Offce in Shenzhen, China, and began offering our products worldwide in 2013. Over NINE years of experience in the wireless communication sector has enabled LinkAV to develop world-class video transmission products.

LinkAV is developed based on protocols like Onvif and RTSP, which enables LinkAV to support over different brands like Dahua, Hikvision for a better integration with fiber and internet connections.

LinkAV now is working as a solid supplier for ZTE and dedicating our best to provide the world-class wireless video transmitters for UAV, mining, oil spill monitoring, etc, please contact us today for more information and a sample for testing first. Please follow up for how to become a distributor of LinkAV.

Our Services

1. we accept all terms of trade

2. we provide professional system design and construction

3. Lifelong maintenance

4. 24-hour technical support

5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
