LinkAV wireless transmission system advantages:
- Long range transmission distance
- Real-time transmission systems
- Delay time very short less than 500ms
- Perfect image quality, brighter colors and image smoothness.
10KM T340-5W Wireless Audio Video Transmitter Receiver System 2U Indoor base station
Product Features
1. Modularized, low power with built-in cooling fan
2. Support system with frequency or inter frequency networking
3. Stable power, adjustable dynamic power rate
4. IP data transparent transmission of non line of sight
5. Single carrier frequency support up to 4 simultaneous users two-way data transmission
6. Encryption: AES 128 bit
7. Support remote surveillance and alarming
Technique parameters:
Item |
TJ340-20W |
|
RF Parameter |
Working Frequency |
300~800MHz |
Modulation Bandwidth |
2 / 4 / 8MHz |
|
Modulation Type |
TDD-OFDM |
|
Communication Mode |
TDMA Full Duplex |
|
Power Output |
≤43dBm |
|
Band Flatness |
≤ ±0.5dB |
|
Spurious Spectrum |
≤ -36dBm |
|
Third-order IMD |
≤ -36dBC |
|
Receiving Sensitivity |
≤ -100dBm |
|
MER |
≥ 36dB |
|
Anti Adjacent Frequency Interference |
≥ 40dB |
|
Data |
Synchronization Control |
GPS/Beidou with Synchronized clock |
Transmission Bandwidth |
Up to 14Mbps |
|
Network Protocol |
IP/TCP,UDP,HTTP,SMTP |
|
Business Unit |
Video Decoder |
8-channel D1 or 4-channel 720p video decoding(similar to Matrix) |
Generic Specification |
Working Temperature |
-30 ~ +70°C |
Power Supply |
100 – 260V |
|
Power Consumption |
≤50W |
|
Dimensions |
2U |
|
Net Weight |
≤10Kg |
|
Connector |
Power Plug Interface |
Three core |
Data Connector |
RJ45 |
|

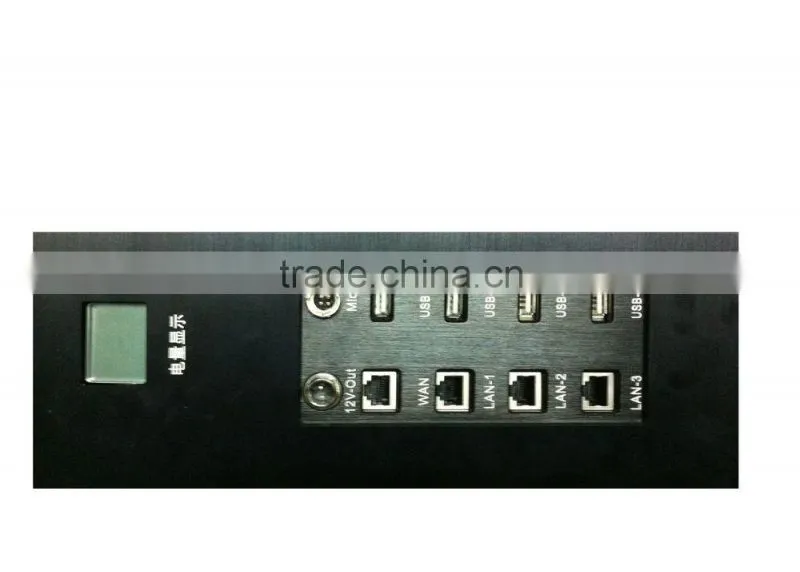

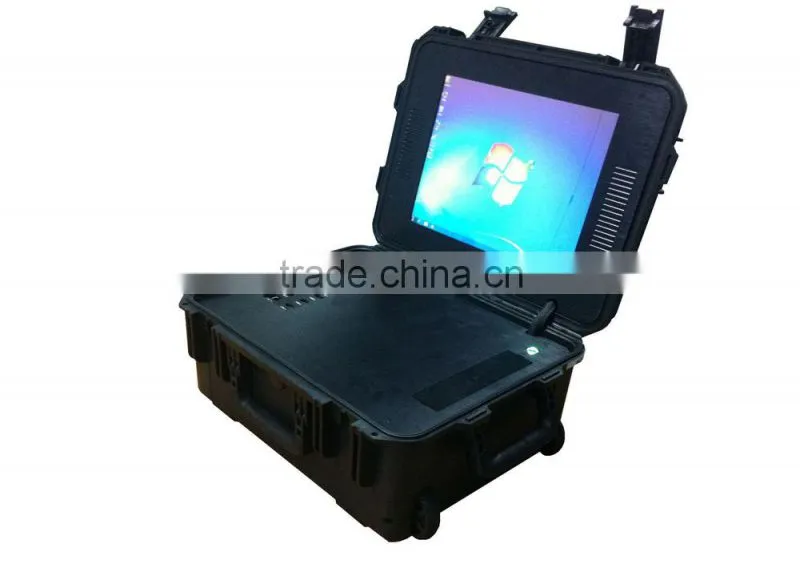

Product pictures:
Applications include:
- Government surveillance
- Law Enforcement
- Urban combat training with many multiple RF reflections
- Unmanned vehicles: UAV, UGV, USV
- Covert Surveillance
- Robots
- Portable microwave products
Introduction
This product is modularized, low power with built-in cooling fan , great diffraction ability,stable power, adjustable dynamic power rate ,support non-line of sight transmission, can be put in brief case, can transmit the live image to the rear people when secretly visit or obtain evidence.
It is mainly used in public security, procurator, law, security bureau, other departments, etc.
Our service:
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
