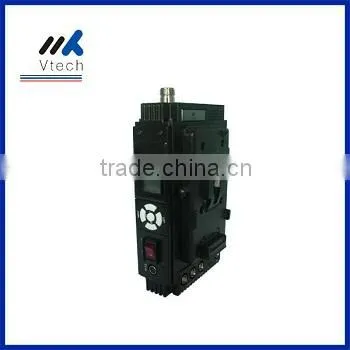

COFDM Wireless 2W HD Buckle Transmitter C321H
The Skywave series based MEPG-II and H.264 encoding technology HD / SD digital wireless video transmission equipment was introduced in 2011 . The system uses 300-900MHz frequency band, advanced COFDM, QPSK, QAM modulation technology,highly solve the transmission, disturbance and the combination of the image quality , the high
transmission specifically comes to to more than 5KM .
Features :
The system is suitable for HD and SD on live of sporting events, cultural activities, important events ,as well as aerial photography and so on.
H.264 encoder makes a very fruitful refinement and improvement in the efficiency of encoding, reducing coding delay, algorithm optimization, anti-error rate and further improvement of the image quality ;
Achieve the best image compression by the lowest Bit rate ;
Use the advanced video pre-processing technology and efficient video coding algorithm to provide high-quality,
low-rate broadcast audio and video signals for digital television broadcasting system, mobile TV systems,
IPTV system ;
Large output power (0.5W-- 2W), adjustable on site , long distance of transmission, good diffraction ability ;
The picture is clear and stable, can convert HD and SD seamless, have no mosaic or drag phenomenon .
Technical parameters:
Item |
Description |
Working Voltage |
DC12V |
Working Current |
1.9A |
Video Input |
CVBS:Support D1 SD resolution |
HDMI:Support HD1080,720P,576,480 | |
SDI:(options) embedded audio ,support HD1080,720P,576,480 | |
Working bandwidth |
2/2.5/4/8MHz(option) |
Output type |
RF method N type connector |
Output frequency |
300~900MHz,the adjustable step is 1MHz(option) |
Output Power |
22dBm~32dBm,the adjust step is1dB(option) |
Encryption method |
AES/AES2/DES/DES2 |
Modulation method |
COFDM 2K patten |
Parameter control method |
Set the parameters via the LCD control panel |
Boundary dimension |
200X123X45MM |
