Home > Metallurgy, Mineral & Energy > Black Metal & Products > Offer Chinese 1J22 Hiperco 50A Bar

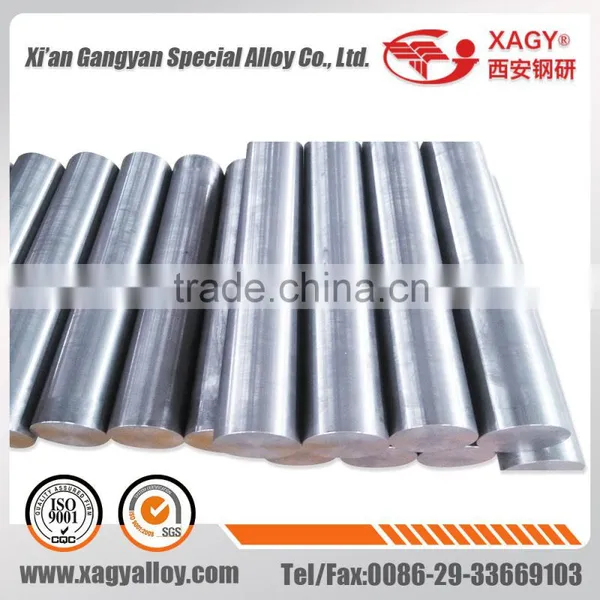

Offer Chinese 1J22 Hiperco 50A Bar

Name: Offer Chinese 1J22 Hiperco 50A Bar
Brand: XAGY
SKU: 100984645

Offer Chinese 1J22 Hiperco 50A Bar thumbnail-1

Offer Chinese 1J22 Hiperco 50A Bar thumbnail-2

Offer Chinese 1J22 Hiperco 50A Bar photo-1

Offer Chinese 1J22 Hiperco 50A Bar photo-2

Negotiable MOQ: 50 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

XAGY

Model Number:

1J22 Hiperco 50A

Contact Supplier Request Quote Chat Now

Xi'an Gangyan Special Alloy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an airport; Beijing airport; Shanghai airport; Tian jin port; Qingdao port etc

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name XAGY

Model Number 1J22 Hiperco 50A

Application solenoid valve; Motor; Rotor

Shape Bar Strip Plate Sheet

Material Soft magnetic alloy

Dimensions Above Dia 8mm

Chemical Composition FeCoV

Product Description

Hiperco 50A bar is similar with Chinese 1J22 (GB/T 15002-1994)

High Saturation magnetic induction soft magnetic alloys 1J22(GB/T15002-1994)

Note: Hiperco 50A(1j22) alloy is a soft magnetic alloy which has been used primarily as magnetic core material in electrical core material in electrical equipment requiring high permeability values at very high magnetic flux densities. The magnetic characteristics of this alloy permit weight reduction, reduction of copper turns, and insulation in the end product when compared to other magnetic alloys having lower permeabilities in the same magnetic field range.

Relative Grade just for customer reference:

Grade	U.K.	Germany	U.S.A.	Russia	Standard
1J22	Permendur	Vacoflux 50	Supermendur HiperCo50		GB/T15002-1994

Grade and Chemical Composition (see Table 1)

Table 1 Grade and Chemical Composition

Grade	Chemical Composition (%)
Grade	C≤	Mn≤	Si≤	P≤	S≤	Cu≤	Ni≤	Co	V	Fe
1J22	0.04	0.30	0.30	0.020	0.020	0.20	0.50	49.0~51.0	0.80~1.80	Balance

Physical Property (see Table2 ) Table 2 Physical Property

Grade	Resistivity /(μΩ•m)	Density/(g/cm³)	Curie point/°C	Magnetostriction Cofficient/(×10^-6)	Tensile Strength,N/mm²
					Unannealed	Annealed
1J22	0.40	8.20	980	60~100	1325	490

Table 3 DC Magnetic Property Requirements After Heat-Treated

Grade	Type	Minimum Magnetic Flux Density for Different Magnetic Field Strengths (T)						Coercive force Hc / (A/m)≤
Grade	Type	B400	B800	B1600	B2400	B4000	B8000	Coercive force Hc / (A/m)≤
1J22	Cold rolled Strips	1.70	1.90	2.00	2.10	2.20	2.25	110
1J22	Wires,Forgings,Billets,Bars	1.60	1.70	1.80	2.05	2.15	2.20	144
