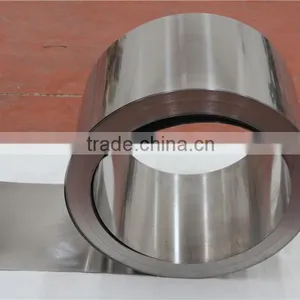

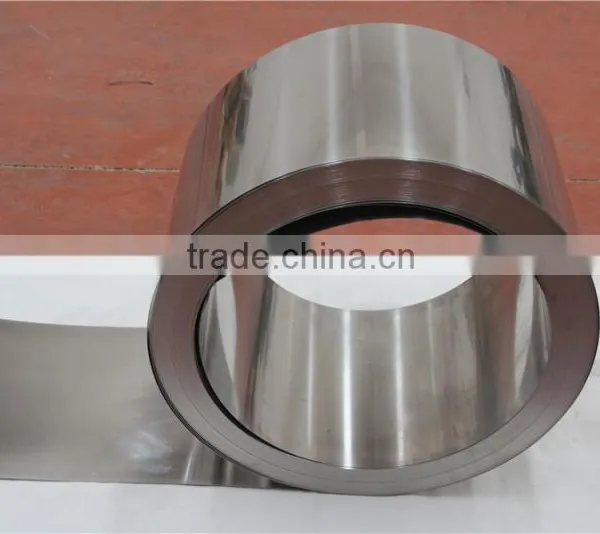

Help CenterOffer Soft Magnetic Alloy Hiperco 27 Strip
Related Products
-
Precision Soft Magnetic Alloy Hiperco50 Bar PriceUS$ 90 - 100MOQ: 50 Kilograms -
High Saturation Magnetic Induction Hiperco50 Supermendur Ring Bar SheetUS$ 98 - 230MOQ: 10 Kilograms
-
Soft Magnetic Alloy Hiperco50a Strip With ASTM A801US$ 98 - 230MOQ: 10 Kilograms
-
20% Offf Hiper50 Soft Magnetic Alloy for SaleUS$ 240.00 - 260.00MOQ: 1 Kilogram
-
Mumeta /permalloy 80 Soft Magnetic AlloyUS$ 39.00 - 49.00MOQ: 1 Kilogram
Iron-Cobalt High Magnetic saturation Alloys
Hiperco 27 as per UNS K92650 Standard ASTM A801-09
HiperCo27 alloy is an iron-cobalt-chromium soft magnetic alloy possessing the highest degree of ductility and toughness in the commercially available iron-cobalt grades of high saturation and high Curie temperature soft magnetic alloys. Although the permeability and coercive force of HiperCo 50 alloy are somewhat better than HiperCo 27 alloy, the magnetic saturation of both alloys is nearly identical. In addition, HiperCo 27 alloy does not exhibit the brittleness of HiperCo 50 alloy.
Application
HiperCo27 alloy has been used in applications requiring a combination of good mechanical toughness,good ductility and high saturation induction. Examples have included motors, generators,pole pieces,relays and magnetic shaft.
1.Chemical composition
Grade |
Chemical Composition (%) |
|||||||||
Hiperco 27 |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
V |
Co |
Fe |
≤ | ||||||||||
0.025 |
0.35 |
0.35 |
0.015 |
0.015 |
0.75 |
0.75 |
0.35 |
26.5~28.5 |
Balance |
|
2.Physical Property
Density/ g/cm3 |
7.95 |
Resistivity/(μΩ•m) |
1.9 |
Curie Point/℃ |
925 |
Tensile Strength/MPa |
1150 |
Yield Strength/MPa |
1140 |
3.Magnetic Property
Saturation induction Bs/T |
2.4 |
Coercive force Hc/A·m-1 |
140 |
Remanence Br/T |
0.85 |
Magnetostriction Coefficient/(×10-6) |
36 |
