Specifications

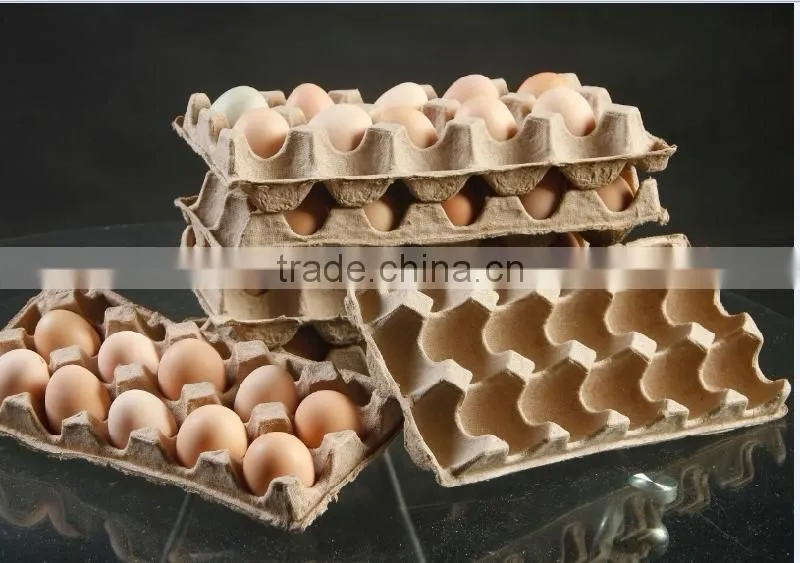

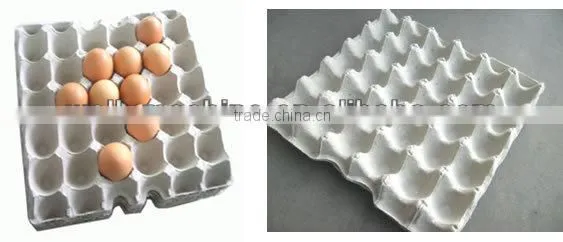

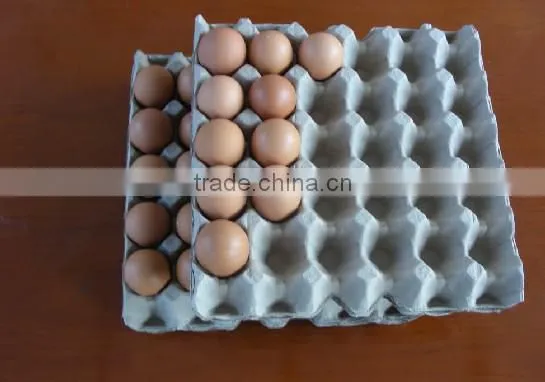

Egg Tray Machine1, Egg tray ,Fruit tray ,Egg box
2,Good quality
3.Lower price

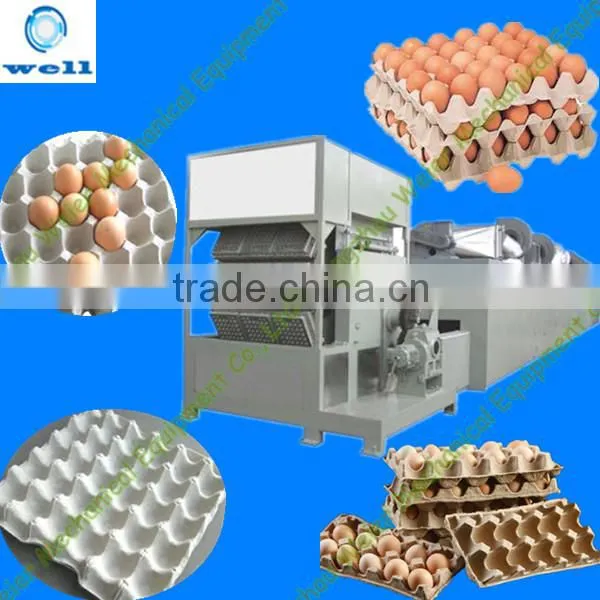

Hot sale low cost paper egg tray molding machine
1.Product description:
1.Pulp molding production lines for the production of eggs and because a lot of care , so it is with " egg tray production line," and known to everyone .
2.Molded pulp packaging products cushion shock ( hereinafter referred to as PMP), based on waste paper , waste cardboard paper, printing paper mill or scrap as raw materials , through hydrapulper , ingredients and other technology to deploy a certain concentration of slurry , the slurry material in a special metal mold by vacuum into a wet billet products, good wet molding blanks and then dried , hot integer from.
3. PMP production process without waste water , waste gas discharge , water seal recycling production process . The main raw material used in the production of paper, the source of abundant, low price , is a comprehensive development and utilization of waste. PMP is after the completion of its packaging in warehousing, transportation, and sale of commodity circulation process cushioning shock protection mission , its the same as ordinary waste recycled paper can be recycled , even if abandoned in the natural environment is also as easy as ordinary paper decompose into plant fiber .
4. Automatic pulp molding production lines can be mass production of various food containers , egg tray , lunch boxes , plastic containers , plastic ceiling tiles, relief doors , a variety of auto parts, luggage and all kinds of health supplies.
Equipment mainly consists of three parts pulping system , molding system , drying system .
Pulp section
Hydraulic crusher, pump high-frequency vibration sieve, fluffer , mixers and other equipment.

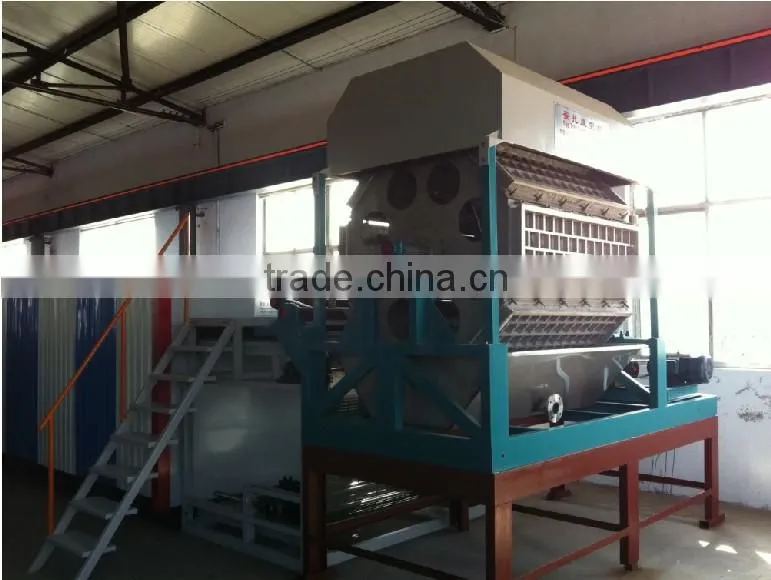

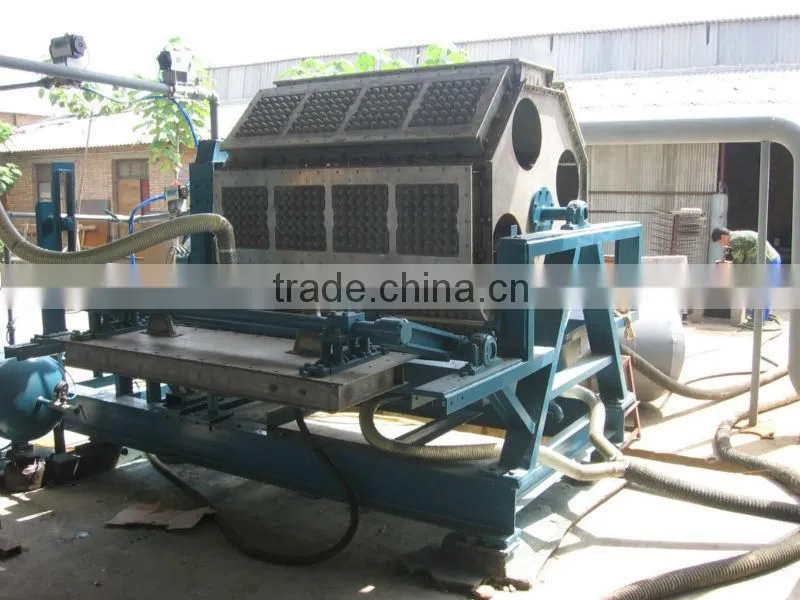

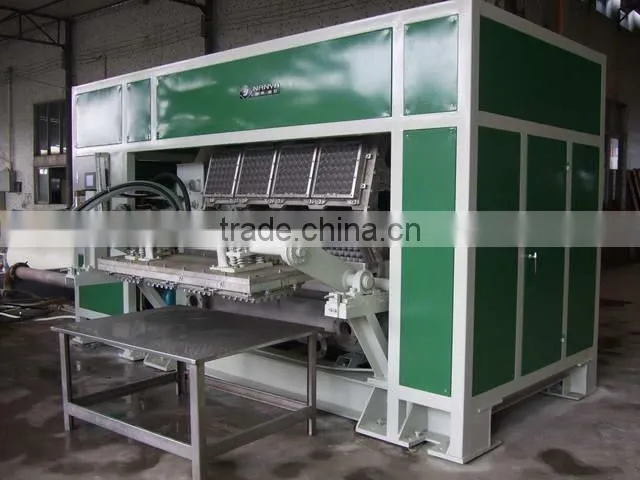

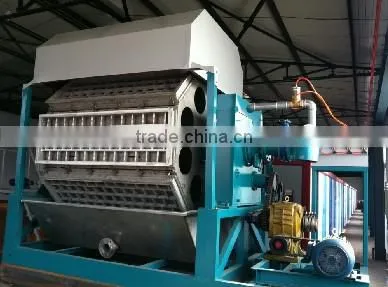

Forming section
Molding machines , vacuum pumps, air compressors, tanks , white pumps and other equipment.

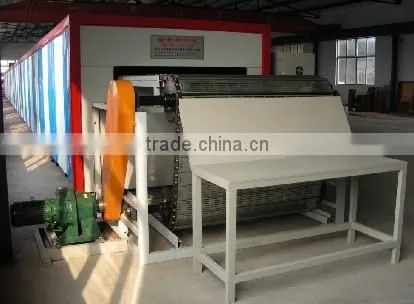

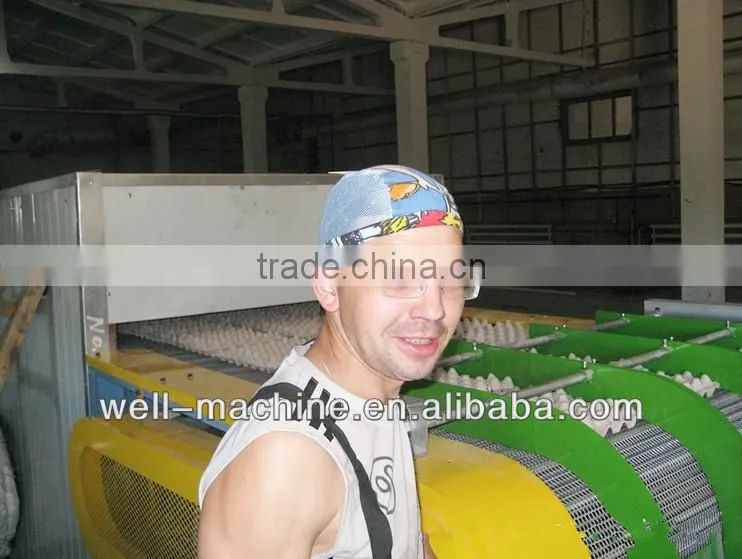

Drying section
Drying boxes , fans , conveyors, balers .
2.Production line consumption:
Number |
Name |
Hourly energy consumption |
Remark |
1 |
Wastepaper |
300kg |
/ |
2 |
Electricity |
80-116kg |
/ |
3 |
Water |
600kg |
/ |
|
4 |
Coal |
230-260kg |
Choose one |
0 # Diesel |
60-90kg |
||
Natural gas |
60-90Cube |
3.Product specification:
Model |
WE-4 |
|
Output (day) |
72000 |
|
|
Power(kw) |
Total Power |
116 |
Vacuum Power |
45 |
|
Drying Equipment Power |
19 |
|
Pulper Power |
11 |
|
Motor Power |
4 |
|
Voltage(v) |
220/380 |
|
Template Size(m) |
1.47*0.47 |
|
Speed(Beats / min) |
13 |
|
Machine Size(m) |
3.3*2.2*2.5 |
|
Mold (Block) |
32 |
|
4.Contact me to get more information:
