Specifications
tyres recycling machine for sale1.Service time:at least 10 years
2.Mesh size:10-100mesh
3.Certification:ISO9001:2000
tyres recycling machine for sale/ tyre cutter

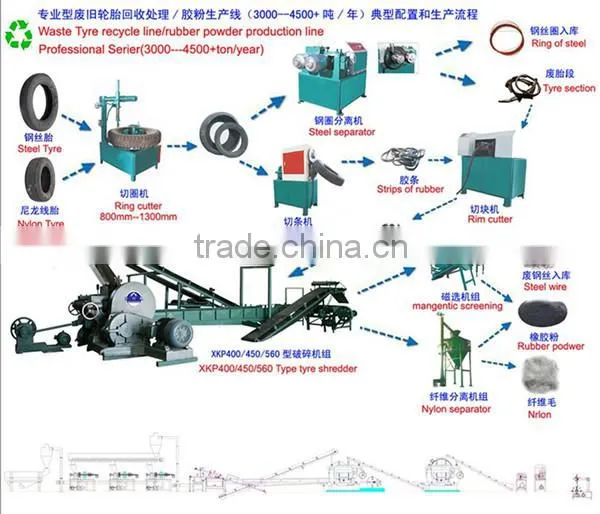

1.Processing flow:
Waste tire--cutting circle --cutting strip--cutting dice--crushing filtering -- magnetic separating filtering--finished products--rubber powder/steel wire/nylon
2.Structures of tyre recycling line
Name |
Qty |
Introduction |
|
|
Host Machine |
Tyre Shredder |
1 |
This machine is the important part in the recycling line, it can crush the 35mm block rubber into 10-30 mesh rubber powder. |
|
Relevant Machine |
Ring Cutter |
1 |
This machine can use its knives to separate the waste tire side and tire top |
|
Strip Cutter |
1 |
This machine can cut the tire side and tire top into long strips for the rim cutter to cut them into blocks |
|
Rim Cutter |
1 |
This machine can cut the strips tire into 35mm blocks. |
|
Large Vibrating Screen |
1 |
Separate the power for the first(8--10mesh) |
|
Small Vibrating Screen |
1 |
Separate the power for the second time(20--30mesh) |
|
Conveyor |
1 |
Return the power that does not meet the requirements back to host machine |
|
Magnetic separation unit |
1 |
Separate the wire and powder |
|
Fiber separator |
1 |
Separate the wool fiber and powder |
|
Steel Wire Separator |
1 |
This steel wire separator can separate the steel wire from the rubber strips |
Name |
Qty |
Introduction |
|
|
Host Machine |
Tyre Shredder |
1 |
This machine is the important part in the recycling line, it can crush the 35mm block rubber into 10-30 mesh rubber powder. |
|
Relevant Machine |
Ring Cutter |
1 |
This machine can use its knives to separate the waste tire side and tire top |
Strip Cutter |
1 |
This machine can cut the tire side and tire top into long strips for the rim cutter to cut them into blocks |
|
Rim Cutter |
1 |
This machine can cut the strips tire into 35mm blocks. |
|
Large Vibrating Screen |
1 |
Separate the power for the first(8--10mesh) |
|
Small Vibrating Screen |
1 |
Separate the power for the second time(20--30mesh) |
|
Conveyor |
1 |
Return the power that does not meet the requirements back to host machine |
|
|
Magnetic separation unit |
1 |
Separate the wire and powder |
|
Fiber separator |
1 |
Separate the wool fiber and powder |
|
Steel Wire Separator |
1 |
This steel wire separator can separate the steel wire from the rubber strips |
|
3.Product picture

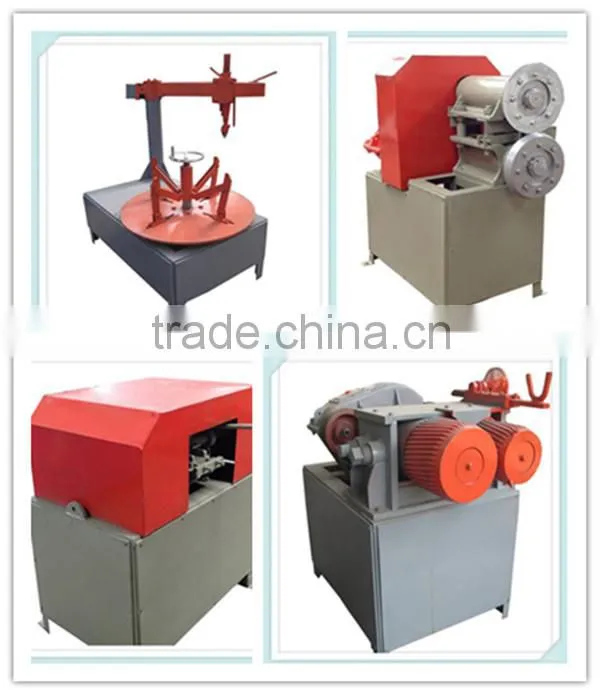

1) Ring cutter,Strips cutter,Rim cutter and steel wire separator

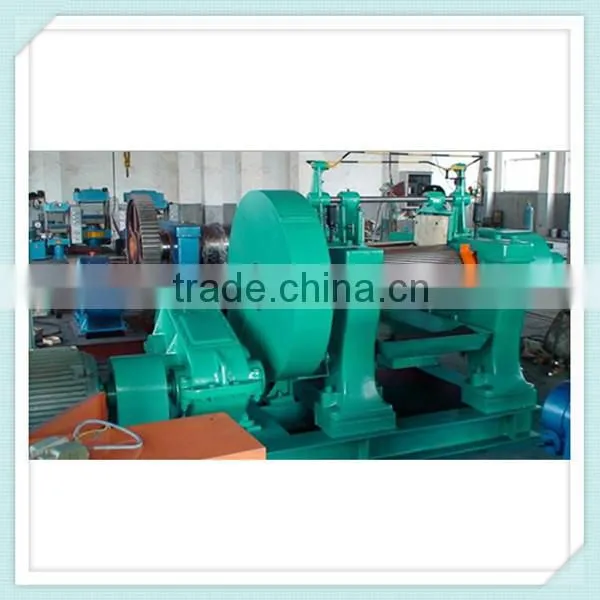

2) Tire crusher
4.The whole line has the following features:
(1). Iron/steel removing ratio>99.5%, fiber removing ratio>98%
(2). Compact structure ensures running safety, easy maintenance;
(3). Low energy consumption;
(4). Adopt semi-automatic control system for whole line, reduce labor cost;
(5). No sewage and waste gas discharge, environment protection.
(6). Available capacity range of our tire recycling lines at present: 2500-3600 ton/year.
(7). Available finial rubber powder size: 30~120mesh.

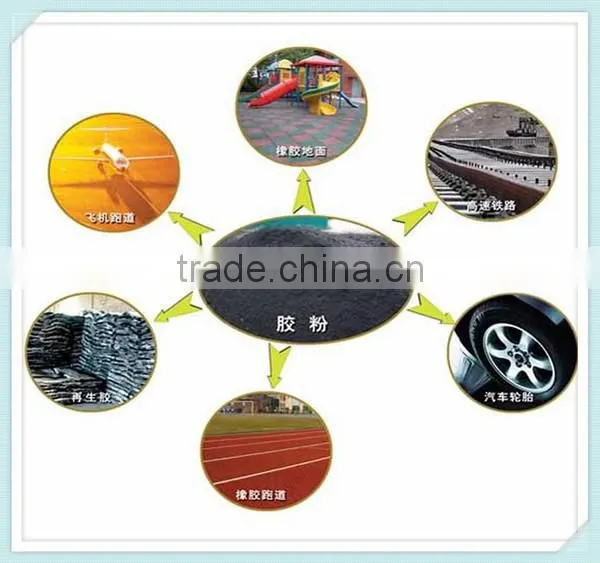

5.Rubber powder
