Product Name: Smokeless and flameless infrared gas burner gas grill burner parts
And we have TUV Certificate, pls. click following link to check:
https://img13.fr-trading.com/company_profile/capability_assessment.html
About our company
Chongqing Haodong Technology Factory produce bbq gas grill burner, gas burners parts, gas burner, infrared burner, gas heater, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.
Now we are the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.
Models of Smokeless and flameless infrared gas burner gas grill burner parts:
MODEL |
Dimension |
Weight |
Gas Type |
Heat Output |
Power |
|
mm |
kg |
BTU/h |
Kcal/hr |
Kw |
||
HD220 |
220*170*60 |
0.9 |
NG/LPG |
10000 |
2520 | 2.94 |
HD400 |
400*80*60 |
0.7 |
NG/LPG |
9030 |
2300 |
2.72 |
HD538 |
538*85*65 |
1.4 |
NG/LPG |
13500 |
3400 |
3.9 |
HD668 |
668*85*65 |
1.7 |
NG/LPG |
166000 |
4180 |
4.8 |
Detail picture of product:
--- Smokeless and flameless infrared gas burner gas grill burner parts HD220

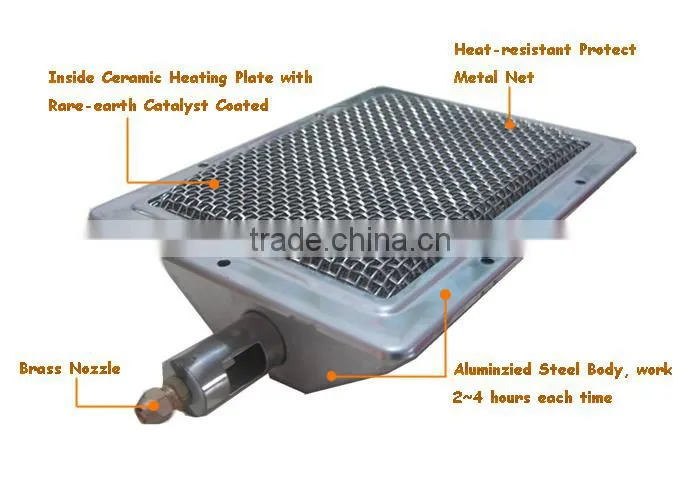

Material of Smokeless and flameless infrared gas burner gas grill burner parts
1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Nozzle of Smokeless and flameless infrared gas burner gas grill burner parts
Every burner have a nozzle with connector. It has a sealing ring inside, can be conneted to gas pipe directly.

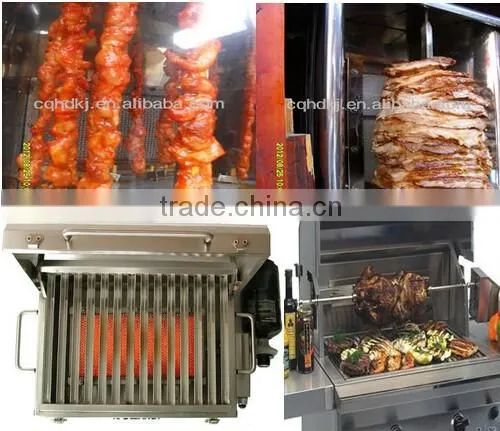

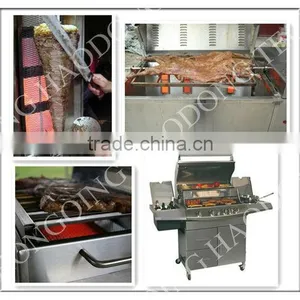

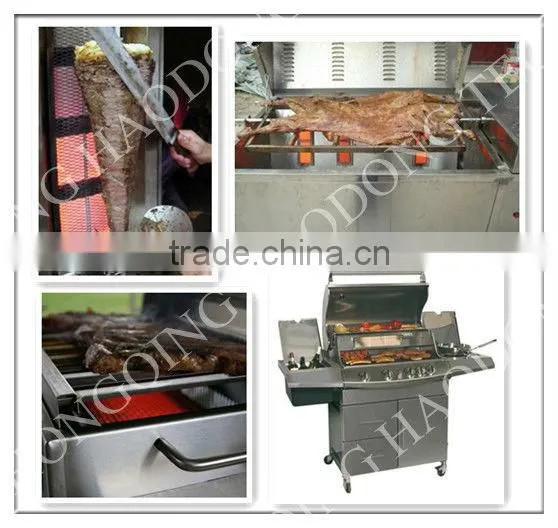

Application of Smokeless and flameless infrared gas burner gas grill burner parts
This series is specially make for bbq industrial:
- BARBECUE Grill
- Chicken,Poultry,Pig,Lamp Roaster
- Shawarma, Donner Kebab, Gyros Machine
- Oven
- ......
Why do you choose Smokeless and flameless infrared gas burner gas grill burner parts???
1. Save above 20% energy than common gas heaters
2. Zero harmful emmision
3. Pre-mixed, naturally aspirted burner, no need of air blower, air fan or fire chamber
4. Installed in all direction of an oven
The use of technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≤350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---550 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
Packaging picture:
Our sevices:
Please contact me online, or just send me an email.
We promise reply you and will solve any problem after sell at first time.
