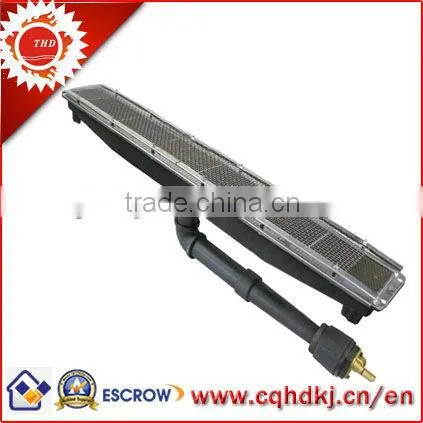

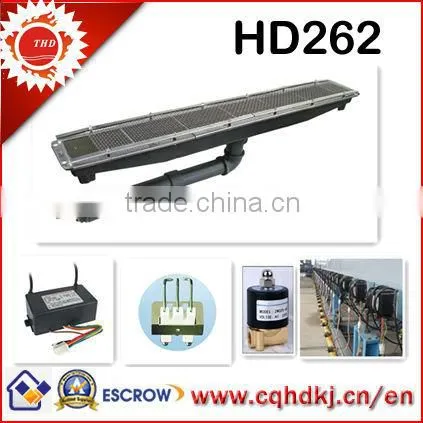

LPG NG industrial use multifunctional gas burner HD262
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD61 | 423*80*94 | 3.8 | NG/LPG | 2.4 | 2030 | 0.18 | 0.18 |
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 | 13 | NG/LPG | 10.9 | 9360 | 0.8 | 0.82 |
Material of multifunctional gas burner :
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
Technical parameters:
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
Gas 150mmAq;liquefied petroleum gas 280mmAq
|
Advantages of multifunctional gas burner :
1. Energy saving: conversion rate:≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Application of multifunctional gas burner
1. Latex gloves industrial: Latex gloves production line, therforming machine, rubber preformer etc.
2. The food industry: bakery oven, pizza oven, biscuit, drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc;tea processing and baking.
3. Coating Industry: forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
4. Agriculture and animal husbandry: keeping warm for a variety of birds, the livestock shed;grain drying.
5. Drying operation in printing and dyeing, paper, wood, carpet and other industries
6. Bake ceramic mold industry, the Health and embryos, the surface drying of glazed ceramic tiles.
7. Heating ,warming and insulation for commercial buildings and workshop
