Specifications
1.optical Fiber Identifier2.Detects high power levels
3.Make core power measurements
4.Identify High Power fibers or circuit

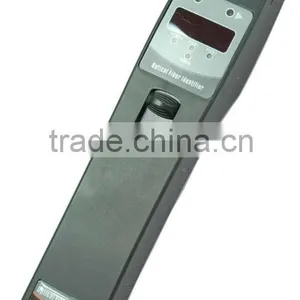

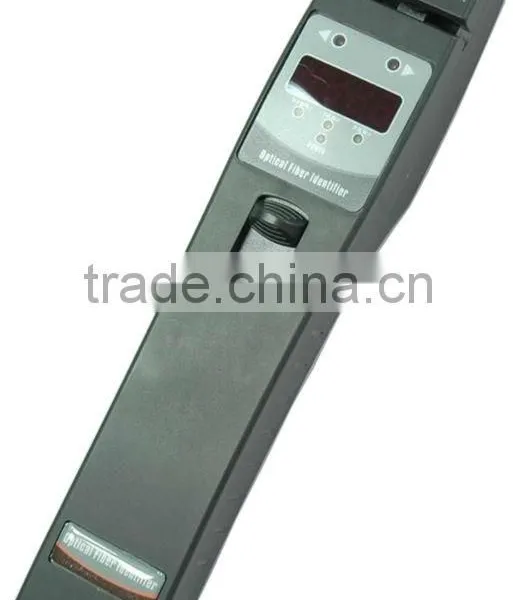

Optical Fiber Identifier
Product Features
1.Unique Optical Head with 2-position Plunger for use with all fiber types
2.Detects high power levels
3.Built-in power meter - calibrated for 3mm jacketed SMF-28
4.Detects Traffic, CW and 270, 330, 1000 and 2000 Hz Tones
Applications
1.Live fiber detection avoids technican-induced outages
2.Fiber identification and tracing with CW or tones
3.Identify High Power fibers or circuits
4.Make core power measurements
Description
The RD400 Series is a rugged, hand-held and easy-to-use fiber optic test instrument designed to detect and measure the
core power levels of optical signals on single-mode optical fiber without disrupting traffic on that fiber. The RD400 is simply
clamped onto a fiber and indicates the presence and direction of traffic, CW signals and 270, 330, 1000 and 2000 Hz test
tones. It allows technical personnel to unambiguously identify a specific fiber and eliminates the risk of accidental
disruption of revenue service. NOYES OLS7, OLS2, CSS1-SM and CSS1-MM Optical Light Sources are ideal
companions for the RD400.
Technical Specifications
RD400 |
RD420S |
RD420L |
|
Wavelength Range |
800 to 1700nm (SM) |
||
Recognizable signal type* |
CW, 2kHz, 1kHz, 270Hz ±10% |
||
Detector Type |
InGaAs 2pcs |
||
Fiber Type |
0.9, 0.25, 2.0, 3.0 mm fiber |
||
Sensitivity |
+10 ~ -50dBm |
||
Accuracy * |
+10dB to -30 dBm (Continuous Wave) |
||
+10dB to -25 dBm (Modulated Signal) |
|||
LED Indicator |
Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery |
||
Visual Fault Locator |
No |
1mW |
10mW |
Storage Temperature |
-20 -- +60 °C, < 90%RH |
||
Operating Temperature |
-10 -- +50 °C, < 90%RH |
||
Power Supply |
AA * 2 |
||
Size |
230mm * 45mm * 45mm |
||
Weight |
About 200g |
||
